Mastering GPU Rasterization: A Deep Dive into Performance and Optimization



GPU rasterization is the crucial process that transforms 2D primitives (triangles, lines, and points) defined in a 3D scene into a 2D image visible on the screen. Its efficiency directly impacts the visual fidelity and performance of any application utilizing computer graphics, from video games and 3D modeling software to scientific visualization tools. Understanding the intricacies of GPU rasterization is therefore paramount for developers aiming to create high-performance and visually stunning graphics. This article will delve into common challenges and solutions related to GPU rasterization, providing practical insights and optimization strategies.


1. Understanding the Rasterization Pipeline



The GPU rasterization pipeline is a complex sequence of steps. A simplified representation includes:

Primitive Assembly: Individual geometric primitives (triangles, lines, points) are assembled from the vertex data provided by the vertex shader. This step involves sorting and clipping primitives against the view frustum.

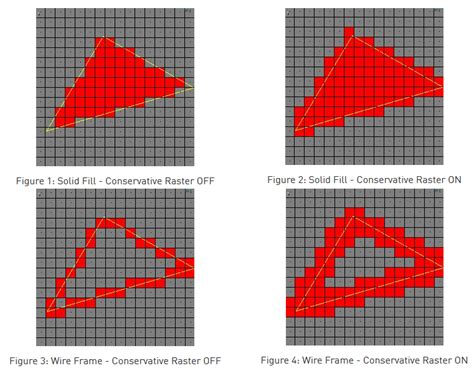

Triangle Traversal: Each triangle is traversed to determine which pixels it covers. This involves calculating the bounding box of the triangle and iterating through pixels within that box.
Fragment Generation: For each pixel potentially covered by a triangle, a fragment is generated. This fragment contains information like the pixel's coordinates, depth, and other attributes interpolated from the triangle's vertices.
Fragment Shading: The fragment shader processes each fragment, calculating its final color and depth. This step is highly parallelizable, allowing GPUs to excel.
Depth Testing: The depth of each fragment is compared against the existing depth buffer. If the new fragment is further away, it's discarded. This ensures correct depth ordering and prevents overlapping objects from obscuring others.
Blending: Fragments are blended together according to the specified blending equation. This allows for transparency and other effects.
Output to Framebuffer: Finally, the processed fragments are written to the framebuffer, which represents the image displayed on the screen.


2. Common Challenges and Solutions



a) Overdraw: This occurs when the same pixel is rendered multiple times, leading to wasted processing power. Overdraw is often caused by improperly sorted or overlapping polygons.

Solution: Proper scene sorting (e.g., using a z-buffer or depth testing) is crucial. Optimize geometry to minimize polygon overlap. Use techniques like early Z-culling to discard fragments before the fragment shader.

b) Fillrate Bottleneck: The fillrate refers to the GPU's ability to process pixels per second. A fillrate bottleneck occurs when the GPU can't keep up with the demands of rasterizing large numbers of polygons.

Solution: Level of Detail (LOD) techniques reduce polygon count at a distance. Reduce texture resolution where appropriate. Optimize geometry to reduce the number of triangles.

c) Bandwidth Bottleneck: Transferring data between memory and the GPU can become a bottleneck, especially with high-resolution textures and large geometry data.

Solution: Use texture compression techniques (e.g., DXT, BCn) to reduce texture size. Use mipmapping to reduce texture access at a distance. Optimize geometry to reduce vertex and index buffer size.


3. Optimization Techniques



Occlusion Culling: This technique identifies and discards objects that are hidden from view, thereby reducing the workload on the rasterizer. Hardware occlusion culling is often available, but software-based solutions are also possible.
Early-Z Culling: This allows the depth test to be performed before the fragment shader, improving performance by discarding fragments early in the pipeline.
Tile-Based Deferred Rendering: This technique divides the screen into tiles and renders them independently, improving cache coherency and reducing bandwidth limitations.


4. Example: Optimizing a Simple Scene



Imagine rendering a scene with many trees, each composed of hundreds of triangles. To optimize, you could:

1. Use LOD: Create several versions of the tree model with decreasing polygon counts. At a distance, use the lower-polygon-count version.
2. Occlusion Culling: Identify trees hidden behind other objects and exclude them from rendering.
3. Batching: Group similar objects together to minimize state changes between rendering calls.


5. Conclusion



GPU rasterization is a complex but fundamental process in computer graphics. Understanding its pipeline, common challenges like overdraw and fillrate bottlenecks, and optimization techniques like occlusion culling and LOD is crucial for developing high-performance graphics applications. By implementing efficient strategies, developers can significantly improve rendering performance and create visually stunning experiences.


Frequently Asked Questions (FAQs)



1. What is the difference between rasterization and scan conversion? Rasterization is a broader term encompassing the entire process of converting primitives to pixels. Scan conversion specifically refers to the algorithm used to determine which pixels are covered by a given primitive.

2. How does anti-aliasing affect rasterization performance? Anti-aliasing techniques, like multisampling, increase the workload as they require rendering at a higher resolution than the display resolution. This can impact performance.

3. What is the role of the depth buffer in rasterization? The depth buffer stores the depth value for each pixel, ensuring correct depth ordering and preventing visual artifacts due to overlapping polygons.

4. Can I optimize rasterization in a shader? While the rasterization stage itself happens outside the shader, you can optimize the data sent to the rasterizer (e.g., by culling unnecessary primitives) within your vertex and fragment shaders.

5. How does tessellation affect the rasterization pipeline? Tessellation adds more detail to surfaces by subdividing polygons into smaller ones, increasing the workload on the rasterizer but ultimately improving visual fidelity. This requires careful balancing between quality and performance.
