Decibels (dB) to Voltage Conversion: A Comprehensive Guide

Introduction:

The decibel (dB) is a logarithmic unit used to express the ratio between two values, often representing power or amplitude. In audio and signal processing, we frequently encounter dB expressed as a voltage ratio. Understanding the conversion between dB and voltage is crucial for interpreting signal levels, gain, and attenuation in various applications. This article will explore the formulas and their applications, providing a clear understanding of this essential concept.

Understanding the Decibel (dB): A Logarithmic Scale

The decibel is not a linear unit; it's logarithmic, meaning it represents a ratio on a logarithmic scale. This allows for a more manageable representation of a wide range of values, from very small to very large. A change of 10 dB represents a tenfold change in power. However, when dealing with voltage, the relationship is slightly different. This is because power (P) is proportional to the square of the voltage (V): P ∝ V².

The dB to Voltage Formula: Derivation and Application

The fundamental formula for calculating the power ratio in decibels is:

dB = 10 log₁₀(P₂/P₁)

Where:

P₁ is the reference power.
P₂ is the measured power.

Since power is proportional to the square of the voltage, we can rewrite this equation in terms of voltage:

dB = 10 log₁₀((V₂²/R) / (V₁²/R))

Assuming the impedance (R) remains constant, we can simplify the equation to:

dB = 10 log₁₀((V₂/V₁)² ) = 20 log₁₀(V₂/V₁)

This is the crucial formula for converting a voltage ratio to decibels. This formula indicates that a 20 dB increase represents a tenfold increase in voltage.

Calculating Voltage from dB:

To calculate the voltage (V₂) given a dB value and a reference voltage (V₁), we rearrange the formula:

V₂ = V₁ 10^(dB/20)

Examples:

Example 1: An amplifier boosts a 1V signal by 20 dB. What is the output voltage?

V₂ = 1V 10^(20/20) = 1V 10¹ = 10V

Example 2: A signal attenuates by -10 dB, starting at 5V. What is the resulting voltage?

V₂ = 5V 10^(-10/20) = 5V 10⁻⁰·⁵ ≈ 1.58V

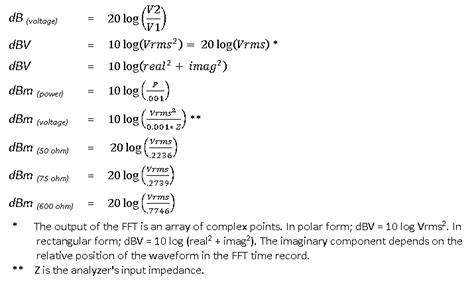

Reference Levels and dBu, dBV, and dBm:

It's important to note that dB values alone are meaningless without specifying a reference level. Common reference levels include:

dBu: Refers to voltage relative to 0.775 volts. This is a common reference in professional audio equipment.
dBV: Refers to voltage relative to 1 volt.
dBm: Refers to power relative to 1 milliwatt (mW), often used in RF and telecommunications. The conversion to voltage requires knowledge of the impedance.

Understanding the reference level is crucial for accurate interpretation. For instance, a signal at +4 dBu is significantly different from a signal at +4 dBV.

Applications in Various Fields:

The dB to voltage conversion is widely used across several fields including:

Audio Engineering: Measuring signal levels, amplifier gain, and attenuator settings.
Telecommunications: Assessing signal strength and attenuation in transmission lines.
Instrumentation: Analyzing sensor outputs and signal processing.

Summary:

The conversion between decibels and voltage is a vital skill in many technical fields. The logarithmic nature of the dB scale allows for compact representation of a wide range of values. Understanding the formula 20 log₁₀(V₂/V₁) and its application, along with the importance of specifying a reference level (dBu, dBV, dBm), is crucial for accurate interpretation and calculations.

Frequently Asked Questions (FAQs):

1. What is the difference between dB and dBm? dB is a general logarithmic ratio, while dBm is a specific power ratio referenced to 1 milliwatt. dBm requires knowledge of impedance for voltage conversion.

2. Can I use the dB to voltage formula for power ratios directly? No, the formula 20 log₁₀(V₂/V₁) is specifically for voltage ratios. For power ratios, use the formula 10 log₁₀(P₂/P₁).

3. Why is the dB scale logarithmic? The logarithmic scale allows for a more manageable representation of a wide range of values, making it easier to visualize and compare signal levels, especially in audio and signal processing where variations can be enormous.

4. What happens if the dB value is negative? A negative dB value indicates an attenuation or reduction in voltage. The formula still applies; the resulting voltage will be less than the reference voltage.

5. How do I convert dBm to dBV? You need to know the impedance (typically 50 ohms or 600 ohms). The power (P) can be calculated from dBm, and then Ohm's law (P = V²/R) can be used to find the voltage (V), which can subsequently be converted to dBV.
