Mastering the Bridge, Switch, and Router Trinity: Solving Common Networking Challenges

In today's interconnected world, a robust and efficient network is paramount. Whether you're setting up a home network, managing a small office, or dealing with more complex enterprise-level systems, understanding the interplay between bridges, switches, and routers is crucial. These three networking devices often work together, and misconfigurations or misunderstandings about their roles can lead to connectivity issues, slow speeds, and security vulnerabilities. This article aims to unravel the complexities of using bridges, switches, and routers, addressing common challenges and providing practical solutions.

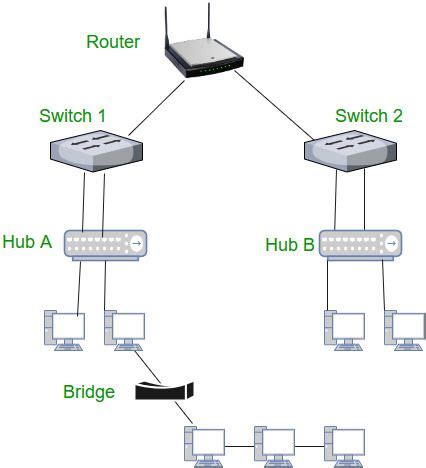

1. Understanding the Roles: Bridge, Switch, and Router

Before diving into problem-solving, let's clarify the distinct functions of each device:

Bridge: A bridge operates at the data link layer (Layer 2) of the OSI model. It connects two or more LAN segments, learning MAC addresses to forward traffic efficiently. Bridges primarily handle local network communication, ensuring data only travels to the necessary destination. They are less common now, largely superseded by switches.

Switch: A switch also operates at Layer 2, but with significantly improved performance compared to bridges. It uses MAC address tables to forward traffic directly to the intended recipient, reducing collisions and improving network speed. Switches are the backbone of most modern LANs.

Router: A router operates at the network layer (Layer 3) of the OSI model. It uses IP addresses to forward data packets between different networks, including the internet. Routers are responsible for routing traffic across different subnets and providing internet connectivity.

2. Common Challenges and Solutions

2.1 Network Segmentation and Routing Issues:

Problem: Multiple devices on different VLANs (Virtual LANs) cannot communicate, or internet access is limited to certain segments. This typically indicates a routing problem between VLANs or improper router configuration.

Solution: Ensure your router supports VLANs and is correctly configured to route traffic between them. This usually involves creating VLAN interfaces on the router and assigning IP addresses and subnet masks accordingly. Check your router's documentation for specific instructions. For example, if you have VLAN 10 (internal network) and VLAN 20 (guest network), the router needs to be configured to route between these VLANs if communication is required.

2.2 Slow Network Speeds:

Problem: Network speeds are significantly slower than expected, despite having a high-bandwidth internet connection. This could stem from several issues including:

Switch congestion: Too many devices connected to a single switch port can cause bottlenecks.
Broadcast storms: Excessive broadcast traffic can overwhelm the network.
Network cable issues: Faulty cables can significantly reduce speeds.

Solution:

1. Upgrade your switch: Consider a gigabit switch or a managed switch that allows for better traffic management.
2. Segment your network: Divide your network into smaller segments using switches to reduce congestion.
3. Check cables: Replace any damaged or old cables with high-quality ones.
4. Identify and resolve broadcast storms: Use network monitoring tools to pinpoint the source of excessive broadcast traffic and address it.

2.3 IP Address Conflicts:

Problem: Two or more devices on the same network have been assigned the same IP address, resulting in connectivity issues.

Solution: Use a DHCP server (Dynamic Host Configuration Protocol) to automatically assign unique IP addresses to devices. Alternatively, manually assign static IP addresses, ensuring that no two devices share the same address within the same subnet.

2.4 Connectivity Issues after Adding a New Device:

Problem: A newly added device fails to connect to the network.

Solution:

1. Check the physical connection: Make sure the cable is properly plugged into both the device and the switch or router.
2. Verify IP address configuration: Ensure the device has a valid IP address within the network's subnet.
3. Check firewall rules: Ensure that the firewall on the router or device is not blocking the connection.
4. Restart devices: Sometimes a simple restart of the device, switch, or router can resolve temporary connectivity issues.

3. Troubleshooting Tips

Use network monitoring tools: Tools like Wireshark or SolarWinds can help identify network bottlenecks and other issues.
Check device logs: Examine the logs of your router, switches, and devices for error messages that might provide clues.
Consult your device's documentation: Manufacturer documentation often contains valuable troubleshooting information.
Test connectivity with ping and traceroute: These commands can help identify where network connectivity is failing.

4. Summary

Effectively managing a network involving bridges, switches, and routers requires a clear understanding of their individual roles and how they interact. By carefully addressing network segmentation, potential bottlenecks, IP address conflicts, and other common challenges through systematic troubleshooting, you can build and maintain a robust and efficient network. Remember that preventative measures, like using a DHCP server and regularly checking cables, can significantly reduce future problems.

5. FAQs

1. Q: Can I use a bridge instead of a switch? A: While technically possible, switches offer superior performance and are generally preferred over bridges in modern networks.

2. Q: What is the difference between a managed and unmanaged switch? A: Managed switches offer advanced features like VLAN support, QoS (Quality of Service), and more granular control over network traffic. Unmanaged switches are simpler and less expensive but offer fewer configuration options.

3. Q: How do I choose the right router for my needs? A: Consider factors such as the number of devices you need to connect, the required bandwidth, and any advanced features you might need (e.g., VPN support, VLANs).

4. Q: What is a network topology, and why is it important? A: Network topology refers to the physical or logical layout of a network. Choosing the right topology (e.g., star, mesh, ring) is crucial for network performance and reliability.

5. Q: My internet connection is slow, but my LAN speed tests are fast. What could be the problem? A: The problem likely lies outside your local network. Contact your internet service provider (ISP) to troubleshoot potential issues with your internet connection.
