User Mode And Kernel Mode In Operating System

Understanding User Mode and Kernel Mode: Navigating the Core of Your Operating System

Operating systems are the unsung heroes of our computing experience. They manage hardware, software, and the flow of information, all while appearing seamless and intuitive. This seamlessness is largely achieved through a crucial architectural concept: the separation of user mode and kernel mode. Understanding this distinction is vital for troubleshooting system issues, optimizing performance, and appreciating the security mechanisms that protect our data. This article unravels the complexities of user mode and kernel mode, addressing common questions and challenges.

1. What are User Mode and Kernel Mode?

At its heart, the separation between user mode and kernel mode is a security measure. The operating system's core, the kernel, handles critical system functions like memory management, process scheduling, and device drivers. The kernel operates in kernel mode, possessing unrestricted access to all system resources. Conversely, applications and user processes run in user mode, which is a restricted environment. User-mode programs cannot directly access hardware or critical system components. This separation prevents a malfunctioning or malicious program from crippling the entire system.

Think of it like this: the kernel is the power plant controlling the entire city (your computer). User-mode programs are individual homes consuming electricity (system resources) but having no control over the power plant itself.

2. The Privilege Levels and their Implications

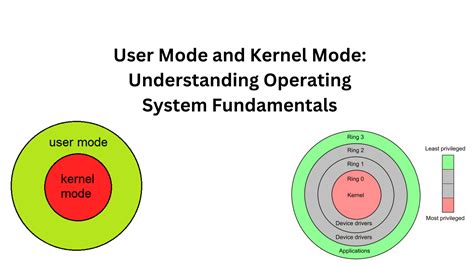

The transition between user mode and kernel mode is controlled strictly through a system of privilege levels or rings. Most modern operating systems employ a ring structure, with ring 0 representing the kernel mode (highest privilege) and ring 3 representing user mode (lowest privilege). Attempting to access resources or perform operations requiring higher privileges from a lower ring will result in a privilege violation, triggering a system error or even a crash.

Example: A user application (in user mode) attempting to directly access a hard drive without using the operating system's file system interface (which operates in kernel mode) will lead to a system error. This is because direct hardware access is restricted in user mode.

3. System Calls: Bridging the Gap

The communication between user mode and kernel mode happens through system calls. When a user-mode program needs a service provided by the kernel (like reading a file from the disk), it makes a system call. This call traps the processor into kernel mode, allowing the kernel to execute the request and return the result to the user-mode program.

Step-by-step example (conceptual):

1. A user application needs to read data from a file.
2. The application initiates a system call (e.g., `read()` in Unix-like systems).
3. The CPU switches to kernel mode.
4. The kernel's file system driver verifies access permissions and reads the data from the disk.
5. The kernel returns the data to the application.
6. The CPU switches back to user mode.

4. Common Challenges and Troubleshooting

Several issues can arise from misconfigurations or malfunctions related to user mode and kernel mode:

Kernel Panics/Blue Screens: These often indicate a kernel-mode error, usually due to a driver malfunction, memory corruption, or hardware problems. Troubleshooting involves checking device drivers, running memory tests, and examining system logs.

Application Crashes: While often due to bugs in the application (user mode), some crashes might be triggered by insufficient permissions or interactions with poorly written drivers (kernel mode). Checking application logs and ensuring necessary system libraries are up to date helps diagnose these.

Security Breaches: A vulnerability in the kernel can expose the entire system to attacks since it operates with unrestricted access. Keeping the OS and its drivers updated is crucial for patching security holes.

5. Optimizing Performance

While the separation is primarily for security, the context switching between user mode and kernel mode can impact performance. Minimizing unnecessary system calls, optimizing I/O operations, and using efficient drivers can improve overall system responsiveness.

Summary

The separation of user mode and kernel mode is a fundamental aspect of operating system design, crucial for security and stability. User mode restricts applications, preventing them from directly accessing critical resources, while kernel mode enables the OS to manage these resources safely and efficiently. Understanding this distinction allows for better troubleshooting, improved system performance, and a deeper appreciation of the underlying architecture that enables our daily computing.

FAQs

1. Can user-mode applications directly communicate with each other? Yes, through inter-process communication (IPC) mechanisms provided by the operating system, but this communication still happens within the constraints of user mode.

2. What happens if a kernel-mode program crashes? A kernel-mode crash typically leads to a system crash (kernel panic or blue screen) requiring a reboot.

3. How can I determine if a problem is user-mode or kernel-mode related? Examine system logs and error messages. Kernel-mode errors often indicate a deeper system issue, while user-mode errors tend to be application-specific.

4. Are there any situations where user-mode code can temporarily run in kernel mode? This is generally not possible directly. User-mode code interacts with the kernel only through system calls, and the kernel controls the transition.

5. How does virtualization relate to user mode and kernel mode? Virtualization creates virtual machines that each have their own isolated kernel-mode environment, further enhancing security and allowing multiple operating systems to run simultaneously on a single host.
