Writing Inequalities from Graphs: A Comprehensive Guide

Introduction:

Graphs provide a visual representation of mathematical relationships. One important type of relationship is an inequality, which compares two expressions using symbols like < (less than), > (greater than), ≤ (less than or equal to), and ≥ (greater than or equal to). Learning to write an inequality from its graph is a crucial skill in algebra and beyond, allowing you to translate a visual representation into a symbolic one, and vice versa. This article will guide you through the process, explaining the key steps and providing examples to solidify your understanding.

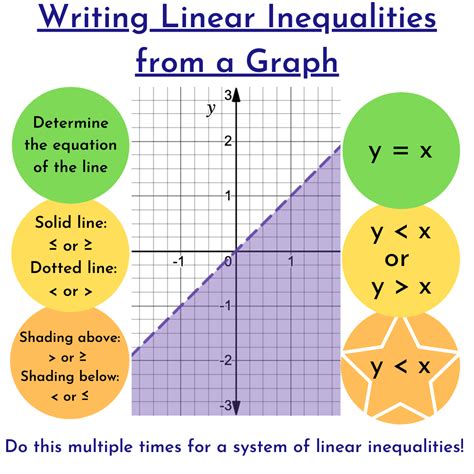

1. Identifying the Boundary Line:

The first step in writing an inequality from a graph is identifying the boundary line. This is the line that separates the shaded region (representing the solution set of the inequality) from the unshaded region. The boundary line itself can be either solid or dashed. A solid line indicates that the points on the line are included in the solution set (represented by ≤ or ≥), while a dashed line indicates that the points on the line are excluded (represented by < or >). Carefully examine the graph and note whether the boundary line is solid or dashed.

Example: If the graph shows a solid line, we know the inequality will use either ≤ or ≥. If it's a dashed line, it will use < or >.

2. Determining the Slope and y-intercept:

Once you've identified the boundary line, find its slope (m) and y-intercept (b). The slope represents the steepness of the line, calculated as the change in y divided by the change in x (rise over run). The y-intercept is the point where the line crosses the y-axis. You can find these values by examining the graph directly, or by using two points on the line to calculate the slope and then using the point-slope form (y - y1 = m(x - x1)) to determine the equation of the line.

Example: If the line passes through points (0, 2) and (1, 5), the slope is (5-2)/(1-0) = 3, and the y-intercept is 2. The equation of the line would be y = 3x + 2.

3. Choosing the Inequality Symbol:

The next step involves selecting the correct inequality symbol (<, >, ≤, or ≥). This depends on which side of the boundary line is shaded.

Shaded above the line: If the region above the boundary line is shaded, the inequality will use either > or ≥.
Shaded below the line: If the region below the boundary line is shaded, the inequality will use either < or ≤.

Combine this information with the solid/dashed line observation from step 1 to finalize your choice. A solid line means you use ≤ or ≥; a dashed line means you use < or >.

Example: If the line is y = 3x + 2 and the region above it is shaded with a solid line, the inequality is y ≥ 3x + 2. If the line is dashed, the inequality is y > 3x + 2.

4. Writing the Complete Inequality:

Finally, combine the equation of the boundary line with the chosen inequality symbol to create the complete inequality. Remember to use the correct variable (usually x and y).

Example: Let's say the boundary line is y = -2x + 1, it's a dashed line, and the region below the line is shaded. The inequality is then y < -2x + 1.

5. Verifying the Solution:

To ensure accuracy, choose a point within the shaded region and substitute its coordinates into the inequality you've written. If the inequality is true, your solution is correct. If it's false, there's an error in your steps.

Summary:

Writing an inequality from a graph involves a series of systematic steps: identifying the boundary line (solid or dashed), determining the slope and y-intercept to find the equation of the line, choosing the correct inequality symbol based on the shaded region, and finally writing the complete inequality. Always verify your solution by testing a point from the shaded region.

Frequently Asked Questions (FAQs):

1. What if the boundary line is vertical? For a vertical line at x = a, the inequality will be x > a, x < a, x ≥ a, or x ≤ a, depending on the shaded region.

2. What if the boundary line is horizontal? For a horizontal line at y = b, the inequality will be y > b, y < b, y ≥ b, or y ≤ b, depending on the shaded region.

3. Can I write the inequality in different forms? Yes, you can rearrange the inequality to different equivalent forms (e.g., standard form, slope-intercept form).

4. What if the shaded region is unbounded? Even if the shaded region extends infinitely, the steps for determining the inequality remain the same.

5. How can I check my answer without testing a point? While testing a point is a reliable method, you can also visually inspect your written inequality against the graph. Does the inequality accurately represent the shaded region and the type of boundary line?

By following these steps and understanding these FAQs, you can confidently translate graphical representations of inequalities into their symbolic form. This skill is fundamental for understanding and solving a wide range of mathematical problems.
