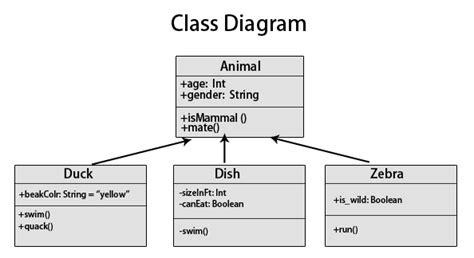

Image related to why-we-use-class-diagram

Decoding the Blueprint: Understanding the Power of Class Diagrams



Imagine you're building a magnificent castle. Before laying a single brick, you wouldn't just start constructing, would you? You'd need a detailed blueprint – a plan showing the structure, relationships between different parts, and how everything fits together. In the world of software development, class diagrams serve as those crucial blueprints. They're visual representations of a system's structure, detailing the classes, their attributes, and the relationships between them. Understanding class diagrams is essential for anyone wanting to grasp the fundamentals of object-oriented programming and software design.

What are Class Diagrams and Why are They Important?



Class diagrams are a key component of the Unified Modeling Language (UML), a standardized visual language for specifying, visualizing, constructing, and documenting the artifacts of software systems. They represent the static structure of a system, meaning they depict what the system is rather than what it does. Each element within a class diagram reflects a class – a blueprint for creating objects. These objects are the fundamental building blocks of many software systems.

Think of a class as a cookie cutter. The cutter itself (the class) doesn't make cookies; it defines the shape and characteristics of the cookies. When you use the cutter to create actual cookies (objects), each cookie has the same basic shape and properties defined by the cutter. Similarly, a class defines the attributes (data) and methods (functions) that objects of that class will possess.

The importance of class diagrams lies in their ability to:

Visualize complex systems: They offer a clear, concise representation of even the most intricate software architecture, making it easier to understand and manage.
Improve communication: They provide a common language for developers, designers, and stakeholders to discuss and agree upon the system's structure. This minimizes misunderstandings and ensures everyone is on the same page.
Facilitate planning and design: They allow for early detection of design flaws and inconsistencies before significant coding begins, saving time and resources in the long run.
Aid in code generation: Some tools can automatically generate code from class diagrams, accelerating the development process.
Enhance maintainability: Well-documented class diagrams serve as valuable references during maintenance and modifications, making the software easier to understand and update.


Key Elements of a Class Diagram



A class diagram typically includes the following elements:

Classes: Represented by rectangles divided into three compartments:
Class Name: Located at the top, it clearly identifies the class (e.g., `Customer`, `Product`, `Order`).
Attributes: The data the class holds (e.g., `customerID`, `name`, `address` for the `Customer` class). These are often shown as `visibility attributeName:dataType`. Visibility (`+`, `-`, `#`) indicates public, private, or protected access.
Methods/Operations: The actions the class can perform (e.g., `placeOrder()`, `updateAddress()`, `getCustomerDetails()`). These are shown similarly to attributes, with visibility and return type specified.

Relationships: These show how classes interact with each other. The most common types are:
Association: A general relationship between classes (e.g., a `Customer` is associated with many `Orders`).
Aggregation: A "has-a" relationship where one class contains another, but the contained class can exist independently (e.g., a `Department` aggregates many `Employees`).
Composition: A stronger "has-a" relationship where the contained class cannot exist without the containing class (e.g., a `Car` is composed of `Engine`, `Wheels`, etc.).
Inheritance/Generalization: A "is-a" relationship where one class inherits properties and methods from another (e.g., `ElectricCar` inherits from `Car`).


Real-World Applications of Class Diagrams



Class diagrams aren't confined to the theoretical realm; they have practical applications in diverse fields:

Software Development: From designing simple applications to building complex enterprise systems, class diagrams are a cornerstone of object-oriented design.
Database Design: They can be used to model database tables and their relationships, aiding in database schema creation.
Business Modeling: They can represent business entities and their interactions, assisting in process analysis and optimization.
Education: They are used extensively in teaching object-oriented programming concepts and software design principles.


Reflecting on the Power of Visualization



Class diagrams are far more than just pretty pictures; they are powerful tools that bridge the gap between abstract ideas and concrete implementation. By visualizing the structure of a system, they significantly improve communication, facilitate planning, and enhance maintainability. Mastering the art of creating and interpreting class diagrams is a crucial skill for anyone venturing into the world of software development or related fields. Their ability to simplify complex systems makes them indispensable in modern software engineering.


Frequently Asked Questions (FAQs)



1. Are class diagrams mandatory for software development? While not strictly mandatory, they are highly recommended, especially for complex projects. They significantly improve clarity and reduce the risk of errors.

2. What tools can I use to create class diagrams? Many tools support UML diagramming, including Lucidchart, draw.io, PlantUML, and Visual Paradigm. Even simple drawing tools can be used for basic diagrams.

3. Can I create a class diagram before writing any code? Absolutely! In fact, it's best practice to create a class diagram during the design phase, before starting coding. This allows you to plan the structure efficiently.

4. How detailed should my class diagrams be? The level of detail depends on the project's complexity and purpose. For smaller projects, a less detailed diagram might suffice, while large projects require more comprehensive diagrams.

5. Can I use class diagrams for non-software systems? Yes, class diagrams can be adapted to model any system with well-defined entities and relationships, making them applicable in various domains beyond software engineering.
