Typical Ipv6 Address

Understanding the Typical IPv6 Address

The internet's foundation relies on addressing systems that uniquely identify every device connected to the network. While IPv4, the older addressing system, is gradually being replaced, IPv6 (Internet Protocol version 6) is the current standard, offering significantly more addresses to accommodate the growing number of connected devices. This article will explore the structure and characteristics of a typical IPv6 address, demystifying its seemingly complex format.

1. The Vastness of IPv6 Address Space

Unlike IPv4's 32-bit address space, limiting it to approximately 4.3 billion addresses, IPv6 utilizes a 128-bit address space. This translates to an astronomically large number of unique addresses – 3.4 x 10<sup>38</sup>, a number so large it's practically inexhaustible. This abundance eliminates the address exhaustion problems that plagued IPv4, ensuring there are enough addresses for every device imaginable, even with the Internet of Things (IoT) explosion.

2. Hexadecimal Notation and Colon Separation

IPv6 addresses are represented using hexadecimal notation, meaning they use base-16 instead of base-10 (decimal). Each hexadecimal digit represents four bits, and the entire 128-bit address is expressed as eight groups of four hexadecimal digits, separated by colons. For example, a typical IPv6 address might look like this: `2001:0db8:85a3:0000:0000:8a2e:0370:7334`.

3. Leading Zero Omission and Double Colon Shorthand

To simplify the representation, leading zeros within each four-digit group can be omitted. For instance, `0000` can be written as `0` or even omitted entirely. Furthermore, consecutive groups of zeros can be replaced with a double colon (::) shortcut. This shorthand notation is only used once per address to reduce length and improve readability. The example address above can be simplified to: `2001:db8:85a3::8a2e:370:7334`. Note that the double colon replaces the sequence of four zeros.

4. Address Components: Network Prefix and Interface ID

An IPv6 address is logically divided into two main parts: the network prefix and the interface identifier (Interface ID). The network prefix identifies the network to which the device belongs, while the interface ID uniquely identifies the specific device within that network. The length of the network prefix is variable and is indicated by a prefix length, usually written as `/x`, where 'x' represents the number of bits in the prefix. For instance, `2001:db8:85a3::/48` denotes a network prefix of 48 bits. The remaining bits (128 - 48 = 80 bits) constitute the interface ID.

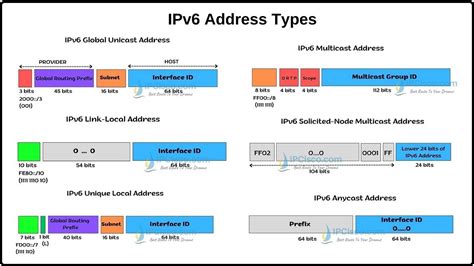

5. Unicast, Multicast, and Anycast Addresses

IPv6 supports different types of addresses, each serving a specific purpose:

Unicast Addresses: These addresses identify a single interface. The examples shown previously are unicast addresses. Each device on the network has a unique unicast address.

Multicast Addresses: These addresses identify a group of interfaces. Data sent to a multicast address is received by all interfaces subscribed to that group. Multicast addresses are used for applications like video conferencing or software updates. They typically start with `ff00::`.

Anycast Addresses: These addresses are associated with multiple interfaces. A packet sent to an anycast address is delivered to the closest interface among those associated with the address. This is frequently used for load balancing or redundancy.

6. Global Unicast Addresses

Global unicast addresses are the most common type of IPv6 address used for internet routing. They have a specific structure and are globally routable on the internet. The first three bytes in the address, frequently assigned by regional internet registries (RIRs), identify the network provider or organization. This allows for hierarchical routing and efficient address management.

7. Unique Local Addresses (ULA)

Unique local addresses (ULA) are IPv6 addresses that are only routable within a specific site or private network. They provide privacy and prevent address conflicts with globally routable addresses. ULAs start with `fc00::/7`.

8. IPv6 Address Autoconfiguration

A key feature of IPv6 is its support for stateless address autoconfiguration. This allows devices to automatically obtain an IPv6 address without requiring intervention from a DHCP server. This simplifies network configuration and reduces administrative overhead.

Summary

IPv6 addresses, with their 128-bit length and hexadecimal notation, provide a significantly larger address space compared to IPv4, solving the problem of address exhaustion. Understanding the components of an IPv6 address, such as the network prefix and interface ID, along with the different address types (unicast, multicast, anycast), is crucial for navigating the intricacies of modern internet networking. The use of shorthand notations and autoconfiguration further enhances the efficiency and scalability of IPv6.

FAQs:

1. Q: What is the difference between IPv4 and IPv6 addresses?
A: IPv4 addresses are 32-bit numbers represented in dotted decimal notation (e.g., 192.168.1.1), while IPv6 addresses are 128-bit numbers represented in hexadecimal notation (e.g., 2001:db8:85a3::8a2e:370:7334). IPv6 has a vastly larger address space than IPv4.

2. Q: How can I find my IPv6 address?
A: You can usually find your IPv6 address by opening your computer's network settings or by using command-line tools like `ipconfig` (Windows) or `ifconfig` (Linux/macOS).

3. Q: Is IPv6 more secure than IPv4?
A: IPv6 incorporates various security features, such as IPsec, which can enhance security compared to IPv4. However, security ultimately depends on proper implementation and configuration, not just the protocol itself.

4. Q: Why do we need IPv6 if we have IPv4?
A: The number of devices connected to the internet has far exceeded the number of available IPv4 addresses. IPv6 solves this problem by providing a vastly larger address space.

5. Q: Will IPv4 disappear completely?
A: While IPv6 is the future, IPv4 will likely persist for some time due to the massive existing infrastructure and legacy systems that still rely on it. Network Address Translation (NAT) is commonly used to extend the usability of IPv4 addresses.
