Unveiling the Secrets of Three Resistors in Parallel: A Deep Dive into Circuit Analysis
Electrical circuits are the lifeblood of modern technology, powering everything from smartphones to power grids. Understanding how different components interact within a circuit is crucial for designing, troubleshooting, and optimizing these systems. One fundamental concept often encountered is the parallel arrangement of resistors. While seemingly simple, understanding the behavior of even just three resistors connected in parallel can unlock a deeper appreciation of circuit analysis. This article delves into the intricacies of this configuration, providing a comprehensive guide for both beginners and those seeking a more thorough understanding.
1. Understanding Parallel Connections
Resistors are passive components that impede the flow of current. When resistors are connected in parallel, they offer multiple pathways for the current to flow. Imagine a multi-lane highway: each lane represents a resistor, and the total traffic flow (current) is increased because there are more paths available. Crucially, the voltage across each resistor in a parallel configuration is identical. This is a key difference from series circuits, where the voltage is divided across the resistors.
Visually, parallel resistors are connected such that one end of each resistor is joined at a common point (node), and the other ends are connected to another common point. This creates multiple branches for the current to follow.
2. Calculating Equivalent Resistance (Req)
The most important calculation when dealing with parallel resistors is finding the equivalent resistance (Req). This single resistor would produce the same overall effect on the circuit as the parallel combination. For three resistors (R1, R2, R3) connected in parallel, the equivalent resistance is calculated using the following formula:

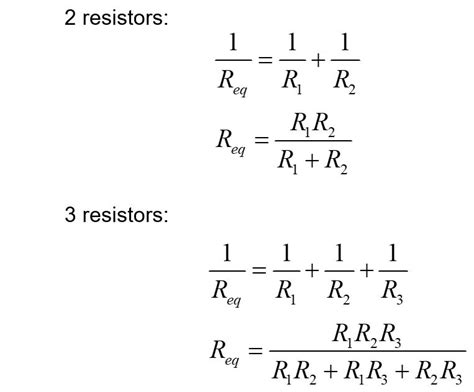

1/Req = 1/R1 + 1/R2 + 1/R3
To find Req, you first calculate the sum of the reciprocals of individual resistances, and then take the reciprocal of the result.
Example: Consider three resistors with values R1 = 10Ω, R2 = 20Ω, and R3 = 30Ω connected in parallel.
The equivalent resistance of the three resistors is approximately 5.45Ω. This means a single 5.45Ω resistor would have the same impact on the circuit as the combination of 10Ω, 20Ω, and 30Ω resistors in parallel.
3. Current Distribution in Parallel Resistors
The total current (Itotal) entering the parallel combination is divided among the individual branches according to Ohm's Law (V = IR) and the individual resistor values. Since the voltage (V) is the same across each resistor, the current through each resistor (Ii) is calculated as:
Ii = V/Ri
where Ii is the current through resistor Ri. The total current is the sum of the individual branch currents:
Itotal = I1 + I2 + I3
Example (continued): If the voltage across the parallel combination in our example is 12V, then:
This demonstrates that the largest current flows through the resistor with the smallest resistance.
4. Real-World Applications
The parallel resistor configuration is ubiquitous in electronics. Here are a few examples:
Household Wiring: Multiple appliances in a house are connected in parallel. This ensures each appliance receives the same voltage, regardless of whether others are turned on or off.
LED Lighting: Multiple LEDs are often connected in parallel to increase brightness and distribute the current evenly.
Load Sharing: In power supplies and other circuits, parallel resistors can distribute the load across multiple components, preventing any single component from being overloaded.
5. Troubleshooting Parallel Resistor Circuits
If a parallel resistor circuit malfunctions, troubleshooting involves systematically checking each resistor for open or short circuits. A multimeter can be used to measure the resistance of each component and the voltage across each branch. If the measured values deviate significantly from the expected values, a faulty resistor is likely the cause.
Conclusion
Understanding the behavior of three resistors in parallel is fundamental to grasping the principles of circuit analysis. By mastering the calculation of equivalent resistance and current distribution, you can effectively design, analyze, and troubleshoot a wide range of electrical circuits. Remember the key characteristics: identical voltage across each resistor, current splitting based on resistance values, and the use of the reciprocal formula for calculating equivalent resistance. This knowledge forms a cornerstone for more advanced circuit analysis and design.
FAQs
1. What happens if one resistor in a parallel circuit fails (open circuit)? The total resistance will increase, and the current through the remaining branches will redistribute according to Ohm's law. The circuit might still function, but with altered current distribution.
2. Can resistors of different wattage ratings be connected in parallel? Yes, but ensure the total current through each resistor does not exceed its wattage rating. The current will be divided according to Ohm's law.
3. How does the total power dissipation change in a parallel circuit compared to the individual resistors? The total power dissipated in a parallel circuit is the sum of the power dissipated by each individual resistor.
4. Is there a simpler formula for two resistors in parallel? Yes, the equivalent resistance for two resistors (R1 and R2) in parallel is given by: Req = (R1 R2) / (R1 + R2).
5. What if I have more than three resistors in parallel? The same reciprocal formula applies: 1/Req = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn. The calculation becomes more involved with more resistors but follows the same principle.
