The System Bus: The Central Nervous System of Your Computer

The heart of any computer system lies not in its individual components – the CPU, RAM, or hard drive – but in the intricate network connecting them. This network, the system bus, acts as the central nervous system, facilitating the seamless flow of data between different parts of the computer. Understanding the system bus is crucial to comprehending how a computer functions at its most fundamental level. This article will delve into the intricacies of the system bus, explaining its structure, function, and significance in modern computing.

1. What is a System Bus?

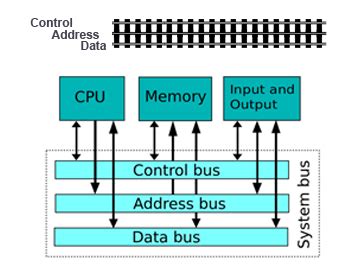

A system bus is a collection of parallel wires that serve as a communication pathway for data, addresses, and control signals within a computer. Imagine it as a highway system connecting different cities (computer components). The data highway carries the actual information being processed, the address highway specifies the location where data needs to go, and the control highway regulates the flow of traffic, ensuring everything runs smoothly and efficiently. These three primary functions are typically handled by separate buses, though they may be physically integrated onto a single circuit board.

2. The Three Main Bus Types: Data, Address, and Control

Data Bus: This is the pathway along which data travels between components. The width of the data bus (measured in bits) determines how much data can be transferred simultaneously. A wider data bus allows for faster data transfer rates. For example, a 64-bit data bus can transfer 64 bits of data at once, significantly faster than a 32-bit bus.

Address Bus: This bus carries memory addresses. Every location in RAM (random-access memory) and other memory devices has a unique address. The address bus tells the CPU where to find or store specific data. The width of the address bus determines the maximum amount of memory the CPU can address. A 32-bit address bus, for instance, allows addressing up to 4GB of RAM (2³² bytes). A 64-bit address bus can address significantly more.

Control Bus: This bus manages the flow of information across the data and address buses. It carries control signals that synchronize data transfers, signal interrupts, and coordinate the operations of different components. These signals might indicate read/write operations, acknowledgements, or requests for data.

3. Types of System Buses: Front Side Bus (FSB) and Others

Historically, the Front Side Bus (FSB) was the primary system bus connecting the CPU to the northbridge chipset (which in turn connected to other components like RAM and the graphics card). However, modern systems have evolved beyond the FSB. Modern CPUs utilize integrated memory controllers and other advancements that have essentially replaced the need for a dedicated FSB.

Today, various high-speed interconnects perform similar roles. These include:

PCI Express (PCIe): A high-speed serial bus used for connecting various peripherals, including graphics cards, network adapters, and storage devices.
HyperTransport: A high-bandwidth point-to-point interconnect technology used primarily in AMD processors.
QuickPath Interconnect (QPI): Intel's high-speed interconnect technology, similar to HyperTransport.
Unified Memory Architecture (UMA): A system where the CPU and GPU share the same memory space.

4. The Impact of Bus Speed on System Performance

The speed of the system bus directly impacts overall system performance. A faster bus allows for quicker data transfer rates, leading to improved application responsiveness and multitasking capabilities. Bus speed is typically measured in megahertz (MHz) or gigahertz (GHz), representing the number of data transfers per second. A system with a slower bus will experience performance bottlenecks, especially when running demanding applications or handling large amounts of data. This is why higher bus speeds are a desirable feature in high-performance computers.

5. System Bus and Future Technologies

As technology continues to advance, the role and architecture of the system bus are constantly evolving. The move towards higher bandwidth interconnects like PCIe reflects the increasing demands for faster data transfer rates in modern applications. Future trends might include even more integrated system designs, potentially blurring the lines between different components and the system bus itself.

Summary

The system bus is the vital communication network within a computer, facilitating data transfer between the CPU, memory, and other peripherals. It comprises three key parts: the data bus, address bus, and control bus. While the traditional FSB has been largely replaced by faster, more sophisticated interconnects, the fundamental principles remain crucial to understanding computer architecture. The speed and efficiency of the system bus significantly impact overall system performance. As technology progresses, the system bus continues to adapt, driving improvements in speed and bandwidth to keep pace with increasingly demanding applications.

FAQs

1. Q: What happens if my system bus fails? A: A failed system bus will render the computer unusable. The components will be unable to communicate, resulting in a system crash.

2. Q: Can I upgrade my system bus? A: You typically cannot directly upgrade the system bus in the same way you might upgrade RAM or a graphics card. Bus speed is usually determined by the motherboard and CPU chipset. Upgrading to a newer motherboard and CPU would be necessary to improve bus performance.

3. Q: How does the system bus differ from a network bus? A: The system bus is internal to the computer, connecting internal components. A network bus connects multiple computers together over a network.

4. Q: Is a wider data bus always better? A: Yes, generally a wider data bus leads to faster data transfer rates. However, this benefit must be considered in conjunction with other system components and the overall system architecture.

5. Q: How can I monitor my system bus speed? A: You can use system monitoring tools (like CPU-Z or HWMonitor) to view information related to your system's bus speeds and other hardware specifications. However, with the shift away from FSB, direct bus speed readings might not always be readily available.
