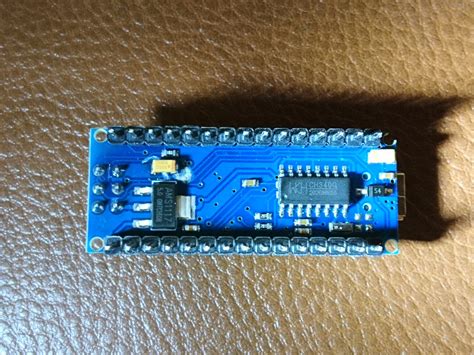

Image related to stk500-getsync-attempt

stk500_getsync Attempt: Understanding AVR Programming Challenges



The phrase "stk500_getsync attempt" often appears in error messages related to AVR microcontroller programming using tools like AVR Studio, Atmel Studio, or Arduino IDE. This error signifies a failure in establishing communication between the programming software and the target AVR chip via the STK500 protocol (or a compatible protocol). Understanding this error is crucial for successfully programming and debugging AVR-based projects. This article will explore this issue through a question-and-answer format.


I. What is the STK500 Protocol and Why is `stk500_getsync` Important?

Q: What is the STK500 protocol?

A: The STK500 protocol is a communication protocol used to program AVR microcontrollers. It defines the communication commands and responses between the programming software (running on a computer) and the programmer hardware (like an ISP programmer, often using USB). The protocol manages tasks like device detection, sending programming instructions, and verifying programmed data. `stk500_getsync` is a crucial part of this process.

Q: What does `stk500_getsync attempt` mean?

A: `stk500_getsync attempt` indicates the programming software is attempting to synchronize with the AVR microcontroller. This synchronization is the initial handshake, verifying that the programmer and the target microcontroller are correctly connected and communicating. If the attempt fails, the programming process stops and the error message appears.


II. Common Causes of `stk500_getsync` Failure

Q: Why might `stk500_getsync` fail?

A: Several factors can lead to this error:

1. Hardware Issues:
Incorrect Wiring: Faulty connections between the ISP programmer, the target AVR, and the power supply are the most common cause. Double-check all connections, ensuring proper alignment and firm contact. Loose connections, incorrect pin assignments, or short circuits can disrupt communication.
Programmer Problems: The programmer itself might malfunction. Try using a different programmer if possible.
Power Supply Issues: Insufficient power to the target AVR, incorrect voltage levels, or noisy power supply can prevent proper synchronization. Ensure the AVR receives the correct voltage and sufficient current. A dedicated power supply is often preferred over relying on the USB port's power.
AVR Chip Failure: The AVR microcontroller itself might be damaged or faulty, preventing communication.

2. Software Issues:
Incorrect Programmer Selection: The programming software must correctly identify the programmer being used. Verify that the correct programmer is selected in the software settings.
Driver Issues: Outdated or corrupted drivers for the programmer can hinder communication. Update the drivers to the latest versions.
Software Bugs: Rarely, bugs in the programming software or firmware of the programmer can cause synchronization problems.

3. Fuse Settings:
Incorrect Fuse Settings: Some fuse settings in the AVR can affect communication. Incorrect settings can sometimes prevent synchronization. Consult the AVR's datasheet for proper fuse configurations.


III. Troubleshooting `stk500_getsync` Errors

Q: How can I troubleshoot this error?

A: Troubleshooting involves systematically checking each potential cause:

1. Verify Hardware Connections: Carefully examine all wiring. Check for loose connections, short circuits, and correct pin assignments (refer to the programmer's and AVR's datasheets).
2. Check Power Supply: Ensure the AVR receives the correct voltage and sufficient current. Use a multimeter to verify voltage levels.
3. Try a Different Programmer: If possible, test with a different ISP programmer to rule out a hardware problem with your programmer.
4. Update Drivers: Update the drivers for your programmer to the latest versions.
5. Check Fuse Settings: If you suspect fuse settings might be the issue, reset them to factory defaults (using a programmer that allows this). However, make sure to set correct fuse settings for future use.
6. Try Different Software: Test with a different AVR programming software (e.g., switch from Atmel Studio to Arduino IDE or vice-versa) to check if the problem is software specific.
7. Reinstall Software: As a last resort, try reinstalling your programming software.


IV. Real-World Examples

Example 1: A user tries programming an ATmega328P using a USBASP programmer. They get the "stk500_getsync attempt" error. After carefully checking the connections, they discover a loose wire on the MISO pin. Correcting the connection resolves the issue.

Example 2: A programmer is attempting to program a new ATtiny85, but repeatedly receives the error. After trying several times, they use a different programmer and the programming completes successfully, implying a problem with the original programmer.

V. Takeaway

The "stk500_getsync attempt" error is a common hurdle in AVR programming. Successfully resolving it requires a methodical approach, systematically checking hardware connections, power supply, driver software, and fuse settings. By carefully reviewing each potential cause, programmers can effectively overcome this challenge and continue with their projects.


FAQs:

1. Q: Can I use a breadboard for programming? A: While possible, breadboards are not ideal due to potential loose connections. Using a dedicated perfboard or PCB is recommended for reliable programming.
2. Q: My fuse settings are correct, but I still get the error. What should I do? A: Try using a different programmer or attempting to program a known-good AVR chip. This can help differentiate between a chip problem and a programmer or software problem.
3. Q: The error only appears intermittently. What does that suggest? A: Intermittent errors often indicate a loose connection, power supply instability, or a problem with the programmer’s internal components. Carefully inspect each connection and consider replacing the faulty component.
4. Q: I'm using Arduino IDE. Where do I find the detailed error messages? A: The Arduino IDE might not display the "stk500_getsync" message directly. Check the IDE's console for more detailed error messages, which might offer more clues.
5. Q: Can I bypass the `stk500_getsync` process? A: No, the synchronization is a fundamental part of the communication process. Trying to bypass it would prevent successful programming. You must resolve the underlying issues to program the AVR.
