Unpacking the Stem and Leaf: A Comprehensive Guide to Data Visualization

Data analysis often feels like navigating a dense forest of numbers. Finding clear paths through this data jungle requires effective visualization tools. While bar charts and histograms are familiar friends, the stem and leaf plot offers a unique and powerful alternative, particularly when dealing with relatively small to moderately sized datasets. This versatile tool allows for both a visual representation of data distribution and the retention of individual data points, making it an invaluable asset for statisticians, researchers, and anyone seeking a deeper understanding of numerical information. This article will guide you through the intricacies of stem and leaf graphs, from their construction to their interpretation, showcasing their practical applications through real-world examples.

1. Understanding the Structure of a Stem and Leaf Plot

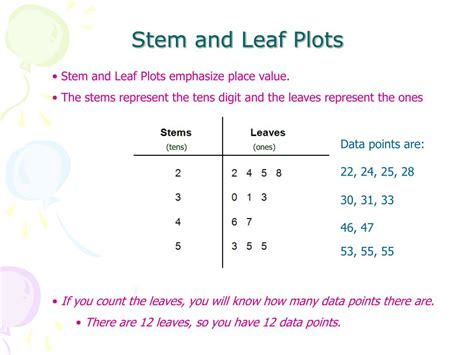

At its core, a stem and leaf plot is a simple yet effective way to organize and display numerical data. It achieves this by separating each data point into two parts: the "stem" and the "leaf." The stem represents the leading digit(s) of the data, while the leaf represents the trailing digit(s). Consider the following example: we have the test scores of ten students: 78, 82, 85, 91, 93, 75, 88, 80, 95, 72.

To create a stem and leaf plot, we first identify the stems. In this case, the tens digits (7, 8, 9) represent the stems. Next, we assign the corresponding units digits as leaves. The resulting stem and leaf plot would look like this:

```
Stem | Leaf
-----|-----
7 | 2 5 8
8 | 0 2 5 8
9 | 1 3 5
```

Each row represents a stem, and the leaves attached to it represent the data points with that stem. For instance, the first row shows that there are three scores in the 70s: 72, 75, and 78. This layout provides a clear visual representation of the data distribution, highlighting the frequency of scores within each range.

2. Constructing a Stem and Leaf Plot: A Step-by-Step Guide

Creating a stem and leaf plot is a straightforward process:

1. Determine the Stem and Leaf: Decide which digits will form the stem and which will form the leaf. This depends on the range of your data and the level of detail you require. Generally, the stem represents the highest place value while the leaf represents the lowest.

2. List the Stems: Write the stems in a vertical column, usually in ascending order.

3. Assign the Leaves: For each data point, write its leaf next to its corresponding stem. It's crucial to maintain the order of the leaves within each stem to preserve the original data order.

4. Add a Key: Include a key to explain the representation. For example: "7 | 2 represents 72". This is crucial for unambiguous interpretation.

5. Optional: Ordering the Leaves: While not strictly necessary, ordering the leaves within each stem from least to greatest enhances readability and allows for easier identification of the median and other statistics.

3. Interpreting Stem and Leaf Plots: Unveiling Data Insights

Stem and leaf plots are not merely visual representations; they offer valuable insights into the data's characteristics:

Data Distribution: The plot clearly shows the distribution of the data, allowing you to identify clusters, gaps, and outliers. In our example, we can quickly see that the scores cluster around the 80s.

Central Tendency: The median (middle value) can be easily found by identifying the middle leaf. In our example, the median is 81 (average of 80 and 82).

Range and Spread: The range (difference between the highest and lowest values) can be quickly determined. In our example, the range is 95 - 72 = 23.

Outliers: Extreme values (outliers) are easily identified as values significantly distant from the main cluster.

Frequency Distribution: The number of leaves associated with each stem provides a visual representation of the frequency distribution.

4. Real-World Applications of Stem and Leaf Plots

Stem and leaf plots are applicable across various fields:

Education: Analyzing student test scores, grades, or attendance data.
Business: Examining sales figures, customer satisfaction scores, or inventory levels.
Healthcare: Tracking patient vital signs, treatment response, or waiting times.
Environmental Science: Analyzing weather data, pollution levels, or ecological measurements.

5. Beyond the Basics: Handling Larger Datasets and Variations

For larger datasets, you might need to adjust the stem and leaf structure. Consider using a wider range for each stem or splitting stems into multiple rows to accommodate more leaves. You can also create back-to-back stem and leaf plots to compare two datasets simultaneously.

Conclusion

The stem and leaf plot offers a unique blend of visual appeal and data preservation. Its simplicity makes it accessible to a wide audience, while its informative nature allows for a nuanced understanding of data distributions. Its ability to quickly reveal central tendencies, ranges, and outliers makes it a powerful tool for preliminary data exploration and analysis.

Frequently Asked Questions (FAQs)

1. When is a stem and leaf plot better than a histogram? Stem and leaf plots are particularly useful for smaller datasets where preserving individual data points is important. Histograms are more suitable for larger datasets where a general overview of the distribution is sufficient.

2. Can I use a stem and leaf plot for data with decimal places? Yes, but you'll need to adjust your choice of stem and leaf accordingly. You might round the data or use the digits before the decimal as the stem and those after the decimal as the leaf.

3. How do I handle negative values in a stem and leaf plot? Negative values can be accommodated by including a negative sign before the stem. For example, -12 would be represented as -1 | 2.

4. Can I use a stem and leaf plot for categorical data? No, stem and leaf plots are specifically designed for numerical data. Categorical data require different visualization methods.

5. What are the limitations of stem and leaf plots? They become less practical for very large datasets. They may not be as visually appealing or intuitive as other visualization methods for complex data distributions.
