Beyond Zero: Unveiling the Secrets of Signed 2's Complement

Ever wondered how your computer, a seemingly simple machine, manages to juggle both positive and negative numbers with such effortless grace? The answer lies in a clever and surprisingly elegant system: signed 2's complement. Forget about cumbersome plus-and-minus signs; this binary magic allows computers to represent negative numbers using only bits – the fundamental building blocks of digital information. Prepare to delve into a world where 1s and 0s dance together to represent the entire spectrum of integers!

1. The Foundation: Understanding Binary Representation

Before diving into the intricacies of signed 2's complement, let's revisit binary. We represent numbers in base 10 (decimal), but computers speak in base 2 (binary), using only two digits: 0 and 1. For instance, the decimal number 5 is represented as 101 in binary (1 x 2² + 0 x 2¹ + 1 x 2⁰ = 5). This is straightforward for positive numbers, but how do we represent negative numbers without using a dedicated “-” sign? This is where the beauty of 2's complement shines.

2. The Magic of 2's Complement: Representing Negative Numbers

Imagine we have an 8-bit system (meaning we use 8 bits to represent a number). In unsigned binary, the largest number we can represent is 255 (11111111). 2's complement cleverly uses the most significant bit (MSB) to represent the sign. A 0 in the MSB signifies a positive number, and a 1 signifies a negative number.

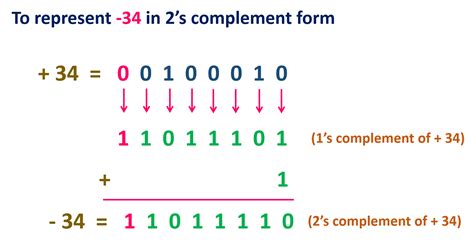

To find the 2's complement of a negative number, follow these steps:

1. Find the 1's complement: Invert all the bits (change 0s to 1s and vice versa).
2. Add 1: Add 1 to the result of step 1.

Let's take the decimal number -5 as an example. Its binary representation is 00000101.

1. 1's complement: 11111010
2. Add 1: 11111011

Therefore, -5 is represented as 11111011 in 8-bit signed 2's complement. Notice how the MSB is 1, indicating a negative number.

3. Arithmetic in the 2's Complement World

The true brilliance of 2's complement lies in its simplicity for arithmetic operations. Addition and subtraction are performed exactly the same way as with unsigned binary numbers, regardless of the signs of the operands. The computer doesn't need separate instructions for handling positive and negative numbers!

Let's add 5 and -5 using our 8-bit representation:

00000101 (5)
+ 11111011 (-5)
---------
1 00000000

The leading 1 is discarded (it represents an overflow in this case, which is often ignored in signed arithmetic), resulting in 00000000 (0), as expected. This seamless integration simplifies computer hardware design significantly.

4. Real-World Applications: From Microcontrollers to Supercomputers

Signed 2's complement isn't just a theoretical concept; it's the backbone of virtually all modern digital systems. Microcontrollers in your appliances, the CPUs in your smartphones and computers, and even the supercomputers crunching massive datasets all rely on this elegant system for handling integers. This ubiquitous presence highlights its efficiency and practicality. Consider your favorite game – the character's health points, scores, and even positions are all likely represented using signed 2's complement.

5. Limitations and Considerations

While incredibly efficient, signed 2's complement has limitations. The range of numbers it can represent is limited by the number of bits used. For an n-bit system, the range is typically from -2^(n-1) to 2^(n-1) - 1. For our 8-bit example, this is -128 to 127. Exceeding this range leads to overflow, resulting in incorrect results. Understanding these limitations is crucial for preventing errors in programming.

Conclusion

Signed 2's complement is a marvel of engineering, allowing computers to effortlessly handle both positive and negative numbers with a surprisingly simple mechanism. Its efficiency in arithmetic operations and its ubiquitous use in modern digital systems solidify its position as a cornerstone of computer architecture. Understanding its principles is key to grasping the fundamental workings of the digital world around us.

Expert FAQs:

1. What happens during overflow in signed 2's complement arithmetic? Overflow occurs when the result of an arithmetic operation exceeds the representable range. This often leads to unexpected results (e.g., adding two large positive numbers resulting in a negative number). Careful error handling is crucial.

2. How does signed 2's complement handle multiplication and division? Multiplication and division are typically implemented using algorithms designed to work seamlessly with 2's complement representation. The core principles remain consistent: the sign bit is automatically handled during the operation.

3. How does the choice of bit-width (e.g., 8-bit, 16-bit, 32-bit) affect the range of representable numbers in signed 2's complement? Increasing the bit-width significantly expands the range. A larger bit-width allows for larger positive and negative numbers but also increases memory requirements.

4. Are there alternative methods for representing signed numbers in computers? Yes, other methods exist, such as sign-magnitude and 1's complement, but signed 2's complement is far more prevalent due to its simplicity and efficiency in arithmetic operations.

5. How does signed 2's complement relate to the concept of modular arithmetic? Signed 2's complement arithmetic can be viewed as modular arithmetic with a modulus equal to 2<sup>n</sup>, where n is the number of bits. This provides a mathematical framework for understanding overflow behavior.
