Settling Time in MATLAB: Beyond the Numbers, Understanding the Dynamics



Ever watched a finely tuned machine whir into action, smoothly reaching its target without a tremor? That graceful transition isn't accidental; it's a testament to precise control systems, and a key metric in assessing their performance is settling time. But what exactly is settling time, and how do we effectively analyze it using the powerful tools within MATLAB? This isn't just about lines of code; it's about understanding the behaviour of dynamic systems in the real world. Let's dive in!


1. Defining Settling Time: More Than Just Reaching the Target

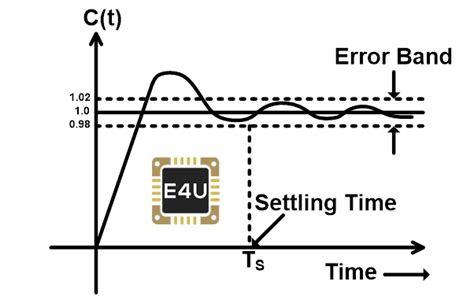

In the context of control systems, settling time refers to the time it takes for the system's output to settle within a specified tolerance band around its final value after a step input. Imagine a thermostat controlling room temperature: the settling time is the duration from when you adjust the temperature until the room temperature stabilizes within, say, ±1°C of the setpoint. It's not just about reaching the target; it's about reaching it steadily and staying there. This tolerance band is typically expressed as a percentage of the final value (e.g., ±2%).

MATLAB provides functions like `stepinfo` to automatically calculate settling time from the step response of a system. This function analyzes the output data and identifies the time it takes to remain within the specified tolerance band. For instance:

```matlab
sys = tf([1],[1 2 1]); % Example transfer function
[y,t] = step(sys);
SI = stepinfo(y,t);
SI.SettlingTime
```

This code snippet first defines a system using a transfer function, then calculates its step response, and finally extracts the settling time using `stepinfo`. The output directly provides the settling time value.


2. Visualizing Settling Time: The Power of Plots



While numerical values are crucial, visualizing the settling time is equally important. MATLAB's plotting capabilities allow us to see exactly how the system behaves over time. Plotting the step response alongside the tolerance bands clearly highlights the settling time.

```matlab
plot(t,y);
hold on;
y_final = SI.SettlingTime;
plot([t(1) t(end)], [y_final1.02 y_final1.02],'r--'); %Upper tolerance
plot([t(1) t(end)], [y_final0.98 y_final0.98],'r--'); %Lower tolerance
xlabel('Time'); ylabel('Amplitude'); title('Step Response with Settling Time');
hold off;
```

This code adds horizontal lines representing the upper and lower bounds of the tolerance band to the step response plot, making the settling time visually apparent. This visual representation is essential for understanding the system's dynamics and identifying potential issues like oscillations or slow response.


3. Factors Affecting Settling Time: Tuning for Optimal Performance



Several factors influence a system's settling time. These include:

System Poles: The location of the poles in the s-plane directly impacts settling time. Poles closer to the imaginary axis generally lead to slower settling times, while poles further to the left result in faster settling times. This is a fundamental concept in control theory.

Gain: Increasing the gain of a system can initially speed up the response, but excessive gain can lead to oscillations and instability, ultimately increasing the settling time or even causing the system to never settle.

System Order: Higher-order systems tend to have longer settling times than lower-order systems due to increased complexity in their dynamics.

Understanding these factors allows control engineers to fine-tune the system parameters – for instance, adjusting PID controller gains – to optimize the settling time while maintaining stability and minimizing overshoot.


4. Real-World Examples: From Robotics to Chemical Processes



The concept of settling time is relevant across various engineering disciplines. Consider a robotic arm: its settling time dictates how quickly and accurately it reaches a target position. A longer settling time means slower, less precise movements. In chemical processes, it might determine the time it takes for a reactor to reach a stable operating temperature or pressure. Analyzing and optimizing settling time is crucial for efficient and safe operation in these contexts. MATLAB's simulation capabilities are invaluable in predicting and improving these system behaviors before physical implementation.


5. Conclusion: Mastering Settling Time for Optimal System Design



Settling time is a crucial metric in assessing the performance of dynamic systems. MATLAB provides powerful tools for calculating, visualizing, and understanding this parameter, allowing engineers to optimize system design for speed, accuracy, and stability. By understanding the factors that influence settling time and leveraging MATLAB's simulation and analysis capabilities, engineers can design and control systems that perform optimally in a wide range of applications.


Expert-Level FAQs:



1. How does the settling time calculation change with different tolerance percentages? The `stepinfo` function allows specifying the settling tolerance, affecting the calculated settling time. Smaller tolerances lead to longer settling times.

2. How can I handle systems with significant oscillations in determining settling time? For oscillatory systems, the `stepinfo` function might not accurately reflect the settling behaviour. Alternative methods, such as examining the envelope of oscillations, are required.

3. Can I use settling time analysis for non-linear systems? While `stepinfo` is designed for linear time-invariant (LTI) systems, you can analyze non-linear systems using numerical simulations and custom algorithms to define a settling criterion.

4. How does sampling rate affect the accuracy of settling time measurement? Insufficient sampling rate can lead to inaccurate determination of settling time, missing rapid transients. A sufficiently high sampling rate is crucial for reliable results.

5. What are some advanced techniques for settling time optimization beyond simple gain tuning? Techniques like optimal control, model predictive control, and pole placement offer more sophisticated methods for minimizing settling time while addressing constraints and robustness concerns.
