PinMode Output Arduino: Controlling the Digital World

The Arduino platform's power lies in its ability to interact with the physical world. A crucial aspect of this interaction involves controlling external components like LEDs, motors, and relays. This is achieved primarily through the `pinMode()` function, specifically when setting a pin's mode to `OUTPUT`. This article will delve into the `pinMode(pin, OUTPUT)` function in Arduino, explaining its functionality, usage, and practical applications.

Understanding `pinMode()`

The `pinMode()` function is a fundamental part of the Arduino programming language. It configures the functionality of a digital pin on the Arduino board. The function takes two arguments:

`pin`: This is an integer representing the digital pin number you want to configure. Arduino boards have numerous digital pins (e.g., 0-13 on Uno), each with its own unique number.
`mode`: This argument specifies the operational mode of the pin. For controlling external components, you'll use `OUTPUT` which designates the pin as an output, allowing the Arduino to send signals to it. Other modes include `INPUT` (receiving signals) and `INPUT_PULLUP` (receiving signals with an internal pull-up resistor).

The syntax is straightforward: `pinMode(pinNumber, OUTPUT);`

Setting a Pin as Output

Before you can use a pin to send a signal, you must first declare it as an `OUTPUT` using `pinMode()`. This is typically done within the `setup()` function, which runs only once at the start of your program. Failure to set the pin mode correctly will result in unexpected behavior or errors.

```cpp
void setup() {
// Set pin 13 as an output
pinMode(13, OUTPUT);
}

void loop() {
// Your code to control pin 13 here
}
```

In this example, pin 13 is configured as an output. Now, any subsequent commands using `digitalWrite()` on pin 13 will successfully control the state of that pin.

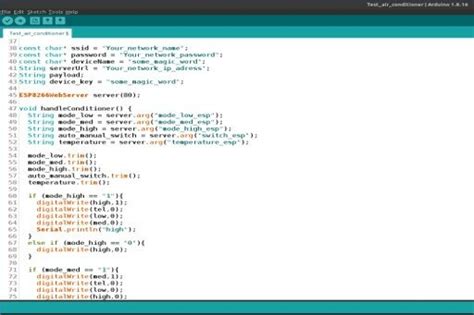

Controlling Output with `digitalWrite()`

Once a pin is set as `OUTPUT`, you can control its state using the `digitalWrite()` function. This function takes two arguments:

`pin`: The digital pin number you wish to control.
`value`: The state you want to set the pin to. This is either `HIGH` (typically 5V) or `LOW` (0V).

```cpp
digitalWrite(13, HIGH); // Sets pin 13 to HIGH (5V)
digitalWrite(13, LOW); // Sets pin 13 to LOW (0V)
```

These commands are used within the `loop()` function, which repeatedly executes your code. By toggling between `HIGH` and `LOW`, you can control the output signal, turning components on and off.

Practical Applications: LEDs and More

The `pinMode(pin, OUTPUT)` function is fundamental to controlling various components. Consider the following scenarios:

Controlling an LED: Connecting an LED to a pin, setting the pin as `OUTPUT`, and using `digitalWrite()` to switch between `HIGH` and `LOW` allows you to turn the LED on and off. Remember to include a current-limiting resistor in series with the LED to prevent damage.

Driving a Motor: Many motors require a higher current than the Arduino can directly supply. In these cases, you'd use a motor driver IC, which is controlled by the Arduino's output pins. Setting the pins as `OUTPUT` allows the Arduino to send the appropriate signals to the motor driver to control the motor's speed and direction.

Activating Relays: Relays are electromechanical switches controlled by low-voltage signals. The Arduino can use its output pins to switch the relay on and off, enabling control over higher-voltage circuits.

Importance of the `setup()` Function

It's crucial to remember that `pinMode()` is usually called within the `setup()` function. This ensures that the pin mode is set only once, at the beginning of the program's execution. Calling `pinMode()` repeatedly within the `loop()` function is unnecessary and can lead to inefficient code.

Summary

The `pinMode(pin, OUTPUT)` function is a critical element in Arduino programming, enabling the control of external hardware. By setting a digital pin as `OUTPUT`, the Arduino can send signals to control a variety of components, from simple LEDs to more complex devices like motors and relays. Combining `pinMode()` with `digitalWrite()` provides a powerful and flexible way to interact with the physical world.

FAQs

1. What happens if I don't use `pinMode()` before `digitalWrite()`? You might encounter unpredictable results. The pin might not change its state as expected, or you might even damage the Arduino or connected components.

2. Can I change the pin mode from OUTPUT to INPUT during the program's execution? Yes, you can change the pin mode using `pinMode()` at any point in your `loop()` function.

3. How many pins can I use as OUTPUT simultaneously? The number of pins you can use as outputs simultaneously depends on your specific Arduino board and its capabilities. Consult your board's datasheet for details.

4. What is the difference between `HIGH` and `LOW`? `HIGH` represents a logic level of 1 (typically 5V for Arduino Uno), while `LOW` represents a logic level of 0 (0V).

5. Do I need external components to use `pinMode(pin, OUTPUT)`? While you can use `pinMode()` without external components to test the functionality, most applications will involve connecting external hardware like LEDs, motors, or sensors, requiring additional circuitry.
