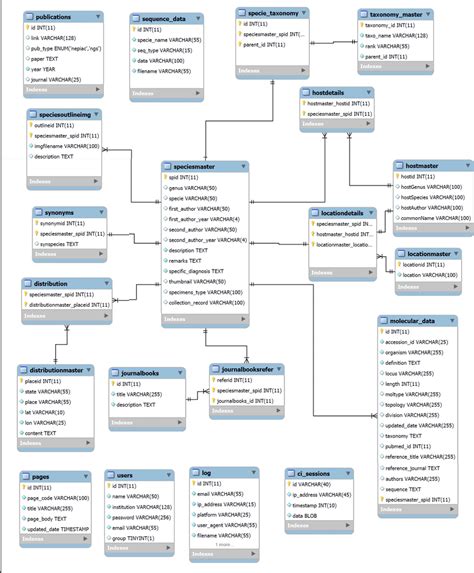

Image related to mysql-eer-diagram

MySQL EER Diagram: A Comprehensive Guide



Understanding database design is crucial for building robust and efficient applications. One of the most effective tools for visualizing and planning database structures is the Entity-Relationship Diagram (ERD). MySQL, a popular open-source relational database management system, benefits immensely from careful ERD design. This article delves into MySQL EER diagrams (Extended Entity-Relationship Diagrams), explaining their components, creation process, and practical applications. We'll move beyond basic ERDs to explore the enhanced modeling capabilities of EER diagrams.

1. Understanding the Fundamentals: Entities, Attributes, and Relationships



Before diving into the intricacies of EER diagrams, let's review the fundamental components of any ERD:

Entities: These represent real-world objects or concepts that we want to store information about in our database. For example, in a library database, "Books," "Members," and "Loans" would be entities. Each entity is typically represented by a rectangle in the diagram.

Attributes: These describe the characteristics of an entity. For example, the "Books" entity might have attributes like "BookID," "Title," "Author," "ISBN," and "PublicationYear." Attributes are usually listed within the entity rectangle.

Relationships: These show the connections between entities. For instance, a "Members" entity might have a "Loans" relationship with the "Books" entity, indicating that members can borrow books. Relationships are depicted as lines connecting the entities, often with a descriptive label indicating the nature of the relationship (e.g., one-to-many, many-to-many).


2. Extending the ER Model: The EER Diagram's Power



While basic ER diagrams effectively model simple relationships, EER diagrams introduce additional features to handle more complex scenarios:

Specialization/Generalization: This allows modeling entities that inherit properties from a more general entity. For example, we could have a "Person" entity as a generalization, with "Member" and "Librarian" as specialized entities inheriting attributes from "Person" but also possessing their own unique attributes (e.g., "MembershipID" for "Member," "EmployeeID" for "Librarian"). This is represented using a "IS-A" relationship, often shown with a triangle.

Weak Entities: These are entities that cannot exist independently and depend on another entity for their existence. Consider "BookCopies" in our library example. A book copy can't exist without a specific book; its existence depends on the "Books" entity. Weak entities are often indicated by a double rectangle.

Attribute Types: EER diagrams allow for a more nuanced representation of attributes. Simple attributes store single values, while composite attributes are broken down into smaller components (e.g., "Address" could be split into "Street," "City," "State," and "Zip Code"). Multi-valued attributes can hold multiple values (e.g., a "Book" entity might have multiple "Authors"). Derived attributes are calculated from other attributes (e.g., "TotalLoans" for a "Member" calculated from the "Loans" entity).

3. Creating a MySQL EER Diagram: A Practical Example



Let's design an EER diagram for a simplified online store:

1. Entities: Products, Customers, Orders, OrderItems.
2. Attributes:
Products: ProductID (PK), Name, Description, Price, CategoryID (FK)
Customers: CustomerID (PK), Name, Email, Address
Orders: OrderID (PK), CustomerID (FK), OrderDate, TotalAmount
OrderItems: OrderItemID (PK), OrderID (FK), ProductID (FK), Quantity
3. Relationships:
Customers 1:N Orders (One customer can have many orders)
Orders 1:N OrderItems (One order can have many order items)
Products 1:N OrderItems (One product can be in many order items)
Products 1:N Categories (One product belongs to one category) - demonstrating a one to many relationship


This diagram can be created using various tools like Lucidchart, draw.io, or MySQL Workbench. The resulting diagram will visually represent the entities, attributes, and relationships, providing a clear blueprint for the database schema.


4. Implementing the EER Diagram in MySQL



Once the EER diagram is finalized, it's translated into MySQL SQL statements to create the database tables. For instance, the "Products" entity would translate to a SQL `CREATE TABLE` statement:

```sql
CREATE TABLE Products (
ProductID INT PRIMARY KEY,
Name VARCHAR(255),
Description TEXT,
Price DECIMAL(10, 2),
CategoryID INT,
FOREIGN KEY (CategoryID) REFERENCES Categories(CategoryID)
);
```

Similar statements would be created for other entities, reflecting the relationships defined in the EER diagram through foreign keys.


5. Conclusion



MySQL EER diagrams are invaluable for designing efficient and well-structured databases. By using EER modeling techniques, developers can capture complexities within their data, leading to improved database performance, data integrity, and reduced development time. The ability to model specialization, weak entities, and diverse attribute types makes EER diagrams a superior approach compared to basic ERDs for many database design scenarios.


FAQs



1. What software can I use to create MySQL EER diagrams? Several tools are available, including MySQL Workbench (integrated with MySQL), Lucidchart, draw.io, and ERwin Data Modeler.

2. Is there a standard notation for EER diagrams? While there's no single universally accepted standard, most tools adhere to similar conventions, making diagrams reasonably understandable across different tools.

3. How do I handle many-to-many relationships in an EER diagram? Many-to-many relationships are typically resolved by introducing a junction table (also called an associative entity).

4. What's the difference between an ERD and an EER diagram? EER diagrams extend ERDs by incorporating features like specialization/generalization, weak entities, and more detailed attribute types, enabling the modeling of more complex relationships.

5. Can I reverse engineer an existing MySQL database into an EER diagram? Yes, most database design tools offer reverse engineering capabilities, allowing you to visualize the structure of an existing database as an EER diagram.
