Module Matplotlib Has No Attribute Plot

Decoding the "Module Matplotlib Has No Attribute Plot" Error

The Python data visualization library Matplotlib is a cornerstone for many data science and scientific computing projects. Its versatility and ease of use make it a favorite among programmers. However, even experienced users occasionally encounter the frustrating error message: "Module Matplotlib has no attribute 'plot'". This article aims to dissect the root causes of this error, provide practical solutions, and equip you with the knowledge to avoid it in the future. We'll explore common scenarios, debugging techniques, and best practices for ensuring your Matplotlib code runs smoothly.

1. Understanding the Error

The error "Module Matplotlib has no attribute 'plot'" essentially means that Python cannot find the `plot` function within the Matplotlib module that you're trying to import. This indicates a problem with your import statement or the installation of Matplotlib itself. The `plot` function is a fundamental part of Matplotlib's `pyplot` module, responsible for creating various types of plots. If this function isn't accessible, your plotting commands will fail.

2. Common Causes and Troubleshooting

Several factors can trigger this error. Let's examine the most prevalent ones:

Incorrect Import Statement: The most frequent culprit is an incorrect import statement. The `plot` function resides within the `pyplot` module, which is typically imported as `matplotlib.pyplot`. Incorrectly importing Matplotlib or attempting to access `plot` directly from the main Matplotlib namespace will result in this error.

Incorrect: `import matplotlib` followed by `matplotlib.plot(...)`
Correct: `import matplotlib.pyplot as plt` followed by `plt.plot(...)`

Namespace Conflicts: If you have other libraries or modules using the same name as Matplotlib functions or variables, it can lead to naming conflicts. This is less common but can occur if you're working with a complex project with many imported modules.

Typographical Errors: Simple typos in the `import` statement or the function call (`plt.plot` vs. `plt.Plot`) can also cause this error. Carefully review your code for any spelling mistakes.

Corrupted or Missing Installation: A corrupted or incomplete installation of Matplotlib can lead to missing modules or functions. Reinstalling Matplotlib is often the solution in this case.

3. Practical Examples and Solutions

Let's illustrate these scenarios with examples and their solutions:

Scenario 1: Incorrect Import

```python
import matplotlib # Incorrect import
matplotlib.plot([1,2,3],[4,5,6]) # This will raise the error
```

Solution:

```python
import matplotlib.pyplot as plt
plt.plot([1,2,3],[4,5,6])
plt.show() #Displays the plot
```

Scenario 2: Namespace Conflict (Hypothetical)

Let's assume you have a module named `mymodule` with a function called `plot`. This could potentially cause a conflict.

Solution: While less likely, restructuring your code to avoid name clashes is the best approach. Consider renaming your functions or modules to prevent conflicts with established libraries like Matplotlib.

Scenario 3: Corrupted Installation

If you've tried the above solutions and still face the error, reinstalling Matplotlib is recommended.

Solution:

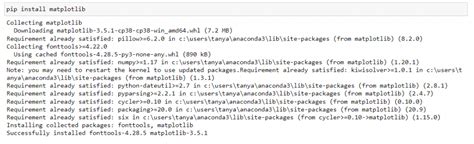

Use your package manager (pip or conda) to reinstall:
```bash
pip uninstall matplotlib
pip install matplotlib
```
or
```bash
conda remove matplotlib
conda install matplotlib
```

4. Best Practices

Always use `import matplotlib.pyplot as plt`: This is the standard and recommended way to import Matplotlib's plotting functions.
Check your spelling: Double-check all variable and function names for typos.
Use a virtual environment: This isolates your project's dependencies and prevents conflicts with other projects.
Keep your packages updated: Regularly update your Python packages using `pip install --upgrade matplotlib` or `conda update matplotlib` to ensure you have the latest bug fixes and features.

5. Conclusion

The "Module Matplotlib has no attribute 'plot'" error usually stems from incorrect import statements, naming conflicts, typos, or installation issues. By understanding these common causes and applying the troubleshooting steps outlined above, you can effectively resolve this error and continue your data visualization work. Remember to always verify your import statements and use the standard `import matplotlib.pyplot as plt` convention.

5 FAQs

1. Q: I've reinstalled Matplotlib, but the error persists. What should I do?
A: Try restarting your Python kernel or IDE. Sometimes, even after a successful reinstall, the old cached information might be causing issues. Also, check your system's PATH environment variable to ensure that Python is finding the correct Matplotlib installation.

2. Q: Can I use `from matplotlib import pyplot` instead of `import matplotlib.pyplot as plt`?
A: While functionally similar, `import matplotlib.pyplot as plt` is generally preferred because it provides better namespace management and avoids potential naming conflicts.

3. Q: My code works on one machine but not another. Why?
A: Different machines may have different Python versions, package installations, or environment configurations. Ensure that the necessary packages (Matplotlib) are installed and the Python versions are compatible on both machines.

4. Q: What if I'm using a Jupyter Notebook?
A: The same principles apply. Make sure you have the correct import statement and that your kernel is correctly configured to access Matplotlib. Restart the kernel if necessary.

5. Q: Are there alternative plotting libraries to Matplotlib?
A: Yes, several alternatives exist, including Seaborn (built on top of Matplotlib), Plotly (interactive plots), and Bokeh (interactive web-based plots). These libraries offer different features and functionalities.
