Maximum Bit Rate Formula

Cracking the Code: Unlocking the Secrets of the Maximum Bit Rate Formula

Ever wondered how much data can actually zip down your internet connection, or across your wireless network? It's not just about your internet plan's advertised speed; there's a fascinating mathematical relationship at play, governed by something called the maximum bit rate formula. This isn't some arcane equation locked away in a dusty textbook; it's the key to understanding the fundamental limits of digital communication. Let's dive in and unravel its mysteries!

1. The Shannon-Hartley Theorem: The Foundation of it All

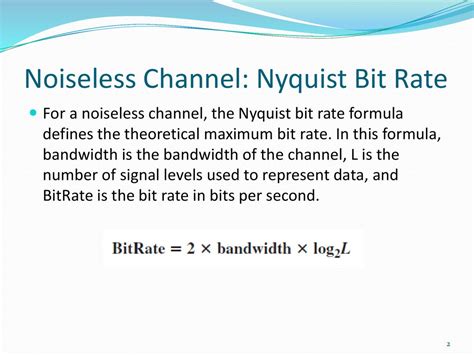

The bedrock of understanding maximum bit rate lies in the Shannon-Hartley Theorem. This isn't just some arbitrary formula; it's a fundamental law of information theory, outlining the theoretical upper limit on the rate at which information can be reliably transmitted over a noisy channel. The formula itself is elegantly simple yet profoundly powerful:

C = B log₂(1 + SNR)

Where:

C represents the channel capacity (maximum bit rate) in bits per second (bps).
B is the bandwidth of the channel in Hertz (Hz). Think of this as the "width" of the frequency range your communication uses. For example, your Wi-Fi might operate on a 20MHz channel.
SNR is the signal-to-noise ratio, a crucial measure of the signal's strength relative to background noise. It's usually expressed as a ratio or in decibels (dB).

Let's break it down with a relatable example: Imagine you're streaming a high-definition video. A wider bandwidth (larger B) allows for more information to be transmitted simultaneously, leading to a higher maximum bit rate. However, even with a wide bandwidth, if your signal is constantly plagued by interference (low SNR), the maximum bit rate suffers. This explains why your streaming quality can degrade during periods of network congestion.

2. Deciphering the SNR: The Noise Factor

The SNR is arguably the most critical component of the maximum bit rate formula. A higher SNR means a cleaner signal, allowing for a greater amount of data to be transmitted reliably. Noise comes in various forms: atmospheric interference, electromagnetic radiation, and even thermal noise within the electronic components themselves.

Calculating SNR involves comparing the power of the desired signal to the power of the noise. This can be measured using specialized equipment, or estimated based on the environment and technology used. A high-quality cable connection generally offers a significantly better SNR than a long, poorly shielded wireless connection. Consider the difference between using a wired Ethernet connection for online gaming versus relying on a Wi-Fi signal – the wired connection usually provides a much higher and more stable SNR.

3. Bandwidth: The Highway's Capacity

Bandwidth (B) is the other crucial element. It represents the range of frequencies available for transmitting data. Think of it as the width of the "highway" your data travels on. A wider highway (higher bandwidth) allows for more data to be transmitted simultaneously. This is why fiber optic cables, capable of carrying much higher bandwidths than traditional copper wires, offer significantly faster internet speeds.

The bandwidth isn't always readily apparent. For Wi-Fi, it's specified in the network settings (e.g., 20MHz, 40MHz, 80MHz). For wired connections, the bandwidth is determined by the physical characteristics of the cable and the networking equipment.

4. Real-World Applications and Limitations

The Shannon-Hartley theorem provides a theoretical maximum. In reality, achieving this maximum is rarely possible due to several factors. Practical limitations include:

Coding Overhead: Error-correcting codes are added to data to ensure reliable transmission, reducing the effective bit rate.
Synchronization Overhead: Time is needed to synchronize the sender and receiver, further affecting the achievable bit rate.
Imperfect Channel: The assumption of an ideal channel is never fully met in practice.

Despite these limitations, the Shannon-Hartley theorem remains crucial in designing communication systems. It sets a benchmark, guiding engineers in choosing optimal modulation techniques, error correction methods, and channel allocation strategies to maximize the bit rate under realistic conditions. It helps in understanding why 5G offers higher speeds than 4G—it leverages higher bandwidths and improved signal processing techniques to maximize the bit rate, closer to the theoretical limit dictated by the formula.

Conclusion

The maximum bit rate formula, rooted in the Shannon-Hartley theorem, is a fundamental concept in understanding the limits of digital communication. While the ideal maximum is rarely attained in practice, understanding the interplay of bandwidth and signal-to-noise ratio is essential for designing efficient and reliable communication systems. It helps explain the performance differences between various technologies and reveals the continuous pursuit of pushing the boundaries of data transmission speed.

Expert-Level FAQs:

1. How does modulation scheme affect the maximum bit rate? Different modulation schemes (e.g., QAM, PSK) allow for transmitting more bits per symbol, potentially increasing the bit rate for a given bandwidth, but at the cost of increased sensitivity to noise.

2. Can we exceed the Shannon limit? No, the Shannon-Hartley theorem defines a theoretical upper bound. While we can improve practical bit rates through better coding and signal processing, we cannot transmit information faster than the channel capacity allows.

3. How does multipath propagation affect the SNR and thus the bit rate? Multipath propagation, where signals arrive at the receiver via multiple paths, leads to signal interference and reduces the SNR, thereby limiting the maximum achievable bit rate.

4. How is the maximum bit rate related to the concept of spectral efficiency? Spectral efficiency quantifies how much data can be transmitted per unit bandwidth. A higher maximum bit rate suggests better spectral efficiency.

5. What are some advanced techniques used to approach the Shannon limit? Advanced techniques such as adaptive modulation and coding, pre-coding, and MIMO (multiple-input and multiple-output) are used to overcome channel impairments and approach the theoretical limit.
