Understanding the Longitudinal Modulus of Composites: A Deep Dive

Composites, materials formed by combining two or more constituent materials with significantly different properties, are increasingly crucial in diverse engineering applications. Their mechanical behavior, particularly the stiffness and strength along the fiber direction, is predominantly determined by the longitudinal modulus. This article aims to provide a comprehensive understanding of the longitudinal modulus of composites, its governing factors, measurement techniques, and practical significance.

1. Defining Longitudinal Modulus

The longitudinal modulus (EL), also known as the axial modulus or Young's modulus in the fiber direction, represents a material's resistance to deformation under tensile or compressive stress applied parallel to the reinforcing fibers in a composite. It quantifies the stiffness of the composite along the direction of the fibers, which is usually the direction of highest strength. A higher longitudinal modulus indicates a stiffer material, requiring greater force to achieve a given elongation or compression. Unlike isotropic materials (materials with the same properties in all directions), the longitudinal modulus of a composite differs significantly from its transverse modulus (ET), which describes stiffness perpendicular to the fibers.

2. Factors Influencing Longitudinal Modulus

Several factors intricately influence the longitudinal modulus of a composite material:

Fiber Modulus (Ef): This is the most significant factor. High modulus fibers like carbon fiber, aramid fiber (Kevlar), or glass fiber contribute significantly to the overall longitudinal modulus of the composite. The higher the fiber modulus, the higher the composite's EL.

Fiber Volume Fraction (Vf): The proportion of fibers in the composite directly impacts the EL. A higher fiber volume fraction generally leads to a higher longitudinal modulus, as more load is carried by the stiffer fibers. However, excessively high fiber volume fractions can lead to processing difficulties and potential micro-cracking, negatively impacting overall performance.

Fiber Orientation: In unidirectional composites, where fibers are aligned parallel to each other, the longitudinal modulus is maximized. However, in woven or multidirectional composites, the fiber orientation is complex, resulting in a lower EL compared to unidirectional composites.

Matrix Modulus (Em): While less impactful than fiber modulus and volume fraction, the matrix material's modulus still contributes to the overall composite modulus. A stiffer matrix can slightly improve the EL.

Fiber-Matrix Interface: The quality of the bond between the fibers and the matrix is crucial. A weak interface reduces load transfer efficiency from the matrix to the fibers, diminishing the overall longitudinal modulus.

3. Rule of Mixtures and its Limitations

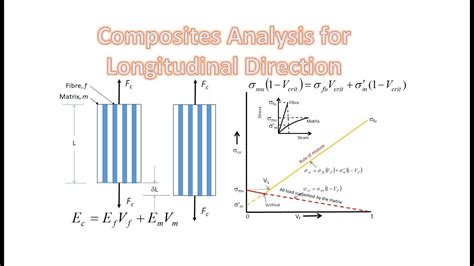

Several models predict the longitudinal modulus of composites. The simplest is the rule of mixtures, which provides an estimate based on the properties of the constituents:

EL ≈ EfVf + EmVm

where Vm is the volume fraction of the matrix (Vm = 1 - Vf). This model assumes perfect load transfer between fibers and matrix, which is rarely the case in reality. More sophisticated models, like the Halpin-Tsai equations, account for the imperfect interface and provide more accurate predictions.

4. Measurement Techniques

The longitudinal modulus is typically determined experimentally using tensile testing. A specimen with the fibers aligned along the loading axis is subjected to a controlled tensile load, and the resulting elongation is measured. The EL is then calculated using Hooke's Law:

EL = (σ/ε)

where σ is the stress (force per unit area) and ε is the strain (elongation per unit length). Other techniques, such as dynamic mechanical analysis (DMA), can also provide valuable information about the modulus at different temperatures and frequencies.

5. Practical Examples

Consider two examples: a carbon fiber reinforced polymer (CFRP) used in aerospace applications and a glass fiber reinforced polymer (GFRP) used in construction. CFRP, with its high-modulus carbon fibers, boasts a significantly higher longitudinal modulus than GFRP, resulting in higher stiffness and strength in the fiber direction. This makes CFRP suitable for high-performance applications requiring exceptional stiffness, while GFRP, with its lower cost and adequate strength, finds its use in less demanding applications.

Conclusion

The longitudinal modulus is a crucial property of composite materials, reflecting their stiffness along the fiber direction. Its value is greatly influenced by fiber properties, volume fraction, matrix properties, and the quality of the fiber-matrix interface. Accurate prediction and measurement of this property are essential for designing and optimizing composite structures for various applications. Understanding the factors influencing EL enables engineers to tailor composite materials to achieve specific performance requirements.

FAQs

1. Q: Can the longitudinal modulus vary with temperature? A: Yes, both the fiber and matrix materials exhibit temperature-dependent mechanical properties, influencing the overall longitudinal modulus of the composite.

2. Q: How does moisture affect the longitudinal modulus? A: Moisture absorption can weaken the fiber-matrix interface and reduce the longitudinal modulus, particularly in some polymer matrix composites.

3. Q: What is the difference between longitudinal modulus and tensile strength? A: Longitudinal modulus represents stiffness (resistance to deformation), while tensile strength represents the maximum stress a material can withstand before failure.

4. Q: Are there any non-destructive methods to measure longitudinal modulus? A: Yes, techniques like ultrasonic testing can provide estimates of the longitudinal modulus without damaging the sample.

5. Q: How does the manufacturing process affect the longitudinal modulus? A: Imperfect processing can introduce defects and inconsistencies, affecting fiber alignment and fiber-matrix bonding, thereby altering the final longitudinal modulus.
