Logistic Regression Decision Boundary

Unveiling the Secrets of the Logistic Regression Decision Boundary

Logistic regression, a cornerstone of machine learning, is a powerful tool for predicting binary outcomes – events that can take on only two values (e.g., yes/no, spam/not spam, malignant/benign). While the model itself might seem complex, understanding its decision boundary is crucial for interpreting its predictions and evaluating its performance. This article aims to demystify the concept of the logistic regression decision boundary, exploring its characteristics, interpretation, and practical implications.

Understanding the Logistic Regression Model

Before delving into the decision boundary, let's briefly revisit the logistic regression model. It uses a sigmoid function to map a linear combination of input features to a probability score between 0 and 1. This score represents the probability of the positive outcome. The model's equation is typically expressed as:

P(Y=1|X) = 1 / (1 + exp(-(β₀ + β₁X₁ + β₂X₂ + ... + βₙXₙ)))

Where:

P(Y=1|X) is the probability of the positive outcome given the input features X.
β₀ is the intercept.
β₁, β₂, ..., βₙ are the coefficients for the input features X₁, X₂, ..., Xₙ.

The sigmoid function ensures the output is always a probability.

Defining the Decision Boundary

The decision boundary is the line (in 2D) or hyperplane (in higher dimensions) that separates the space of input features into regions where the model predicts different classes. In logistic regression, this boundary is defined by the point where the predicted probability equals 0.5. Mathematically, this means:

β₀ + β₁X₁ + β₂X₂ + ... + βₙXₙ = 0

This equation represents the line or hyperplane that separates the positive (P(Y=1) > 0.5) and negative (P(Y=1) < 0.5) predictions.

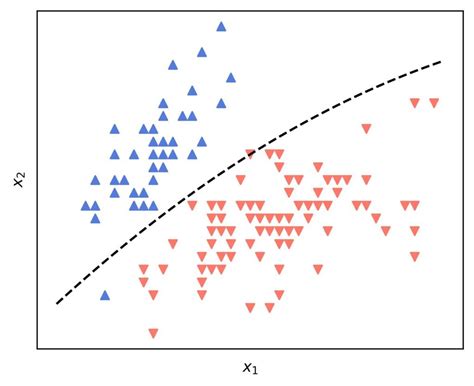

Visualizing the Decision Boundary

Let's consider a simple example with two features, X₁ and X₂. Imagine we're building a model to predict whether a customer will click on an ad based on their age (X₁) and income (X₂). The decision boundary will be a line in the X₁-X₂ plane. Points falling on one side of the line will be predicted as "click" (positive outcome), while points on the other side will be predicted as "no click" (negative outcome). Plotting the data points with their predicted classes and overlaying the decision boundary provides a clear visual representation of the model's predictions.

Interpreting the Decision Boundary's Slope and Intercept

The slope and intercept of the decision boundary are directly related to the coefficients (β) in the logistic regression equation. A steeper slope indicates a stronger influence of the corresponding feature on the prediction. The intercept determines the position of the boundary on the axes. By analyzing the decision boundary, we gain insights into the relative importance of different features in influencing the model's predictions. For instance, a steep slope for income (X₂) suggests income is a strong predictor of ad clicks.

Non-linear Decision Boundaries

While the basic logistic regression model creates linear decision boundaries, it's possible to achieve non-linear boundaries by introducing polynomial terms or interaction terms as features. For example, adding X₁², X₂², and X₁X₂ to the model allows for curved decision boundaries, enabling the model to capture more complex relationships between features and the outcome.

Conclusion

Understanding the logistic regression decision boundary is essential for interpreting the model's predictions and gaining insights into the relationships between input features and the outcome. The position and shape of the boundary are determined by the model's coefficients and the presence of polynomial or interaction terms. Visualizing this boundary provides a powerful tool for evaluating model performance and identifying areas where the model may be underperforming.

FAQs

1. Q: Can I use logistic regression for multi-class problems? A: While basic logistic regression handles only binary outcomes, extensions like multinomial logistic regression can handle multiple classes.

2. Q: How does regularization affect the decision boundary? A: Regularization techniques (like L1 or L2) can shrink the coefficients, potentially simplifying the decision boundary and reducing overfitting.

3. Q: What if my data is not linearly separable? A: You might need to consider non-linear transformations of your features or explore other models better suited for non-linearly separable data.

4. Q: How do I interpret a complex, high-dimensional decision boundary? A: Visualizing high-dimensional boundaries is challenging. Focus on interpreting the coefficients and their relative magnitudes to understand feature importance.

5. Q: What metrics should I use to evaluate a logistic regression model's performance? A: Common metrics include accuracy, precision, recall, F1-score, and AUC (Area Under the ROC Curve). The choice depends on the specific application and the relative costs of false positives and false negatives.
