Decoding the Length of a Line: A Comprehensive Guide

From mapping distances on a geographical chart to calculating the dimensions of a building, determining the length of a line is a fundamental task across numerous fields. While seemingly simple, the calculation method varies depending on the context: a straight line on a flat surface demands a different approach than a curved line or a line segment in three-dimensional space. This comprehensive guide will unravel the various formulas and techniques used to calculate line lengths, equipping you with the knowledge to tackle these calculations with confidence.

1. The Distance Formula for Straight Lines in Two Dimensions

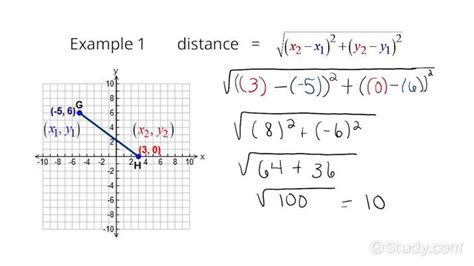

The most straightforward case involves finding the length of a straight line segment between two points on a two-dimensional plane (a flat surface like a piece of paper). This is where the distance formula shines. Given two points, (x₁, y₁) and (x₂, y₂), the distance 'd' between them is calculated using the Pythagorean theorem:

d = √[(x₂ - x₁)² + (y₂ - y₁)²]

This formula is a direct application of the Pythagorean theorem, where the difference in x-coordinates forms one leg of a right-angled triangle, and the difference in y-coordinates forms the other leg. The distance 'd' represents the hypotenuse.

Real-world Example: Imagine you're planning a city walk. Point A is at coordinates (2, 3) and Point B is at (7, 6) on a city map (where units represent blocks). Using the distance formula:

d = √[(7 - 2)² + (6 - 3)²] = √(25 + 9) = √34 ≈ 5.83 blocks.

Your walk will be approximately 5.83 blocks long.

2. Line Length in Three Dimensions

Extending the concept to three dimensions, we consider points in space defined by three coordinates (x, y, z). The distance formula becomes:

d = √[(x₂ - x₁)² + (y₂ - y₁)² + (z₂ - z₁)²]

This simply adds the z-coordinate difference squared to the two-dimensional formula. The principle remains the same: we're calculating the hypotenuse of a right-angled triangle, but now in three-dimensional space.

Real-world Example: Consider an airplane flying between two points. Point A is at (100, 50, 1000) meters (longitude, latitude, altitude) and Point B is at (150, 100, 1200) meters. The direct distance between these points, ignoring the curvature of the Earth, can be calculated as:

d = √[(150 - 100)² + (100 - 50)² + (1200 - 1000)²] = √(2500 + 2500 + 40000) = √45000 ≈ 212.13 meters.

3. Arc Length of a Curve

Calculating the length of a curved line is significantly more complex than a straight line. The exact calculation often requires calculus. For simple curves, we can approximate the length by dividing the curve into many small, nearly straight line segments and summing their lengths. However, for precise calculation of arc length (s) of a function y = f(x) between points x = a and x = b, we use the integral:

s = ∫[a, b] √[1 + (f'(x))²] dx

where f'(x) is the derivative of f(x). This formula arises from considering infinitesimally small segments of the curve and applying the Pythagorean theorem in the limit as the segment length approaches zero.

This integral is often solved using numerical methods if a closed-form solution isn't readily available.

Real-world Example: Determining the length of a curved road on a map. Approximating the road using several short straight line segments provides a reasonable estimate. However, for higher accuracy, a more sophisticated method involving calculus and potentially GIS software would be necessary.

4. Geodesic Distance on a Sphere

Calculating the distance between two points on the surface of a sphere (like the Earth) requires considering the curvature of the surface. The simplest approximation uses the Haversine formula, but for greater accuracy, Vincenty's formulae are used, accounting for the Earth's ellipsoidal shape. These formulas involve trigonometric functions and are computationally more intensive. These are particularly relevant in fields such as navigation and geography.

Conclusion

Determining the length of a line, whether straight or curved, involves applying different formulas depending on the context. From the simple Pythagorean theorem-based distance formula for straight lines in two or three dimensions to the integral calculus required for arc lengths of curves and the sophisticated geodetic calculations for distances on a sphere, the appropriate method hinges on the problem's specific geometric properties. Understanding these different methods allows for accurate and appropriate calculations across diverse applications.

FAQs:

1. Can I use the distance formula for curved lines? No, the distance formula only applies to straight lines. For curved lines, you need techniques involving calculus or numerical approximations.

2. What are the units for the length of a line? The units depend on the context. If coordinates are in meters, the length is in meters. If coordinates are in miles, the length is in miles, and so on.

3. How accurate is approximating a curve's length with straight line segments? The accuracy increases as you use more, shorter segments. However, it will always be an approximation, and the error depends on the curve's curvature.

4. Why are there different formulas for calculating distances on a sphere? The Earth isn't perfectly spherical; it's an ellipsoid. Simpler formulas like the Haversine formula provide good approximations, but Vincenty's formulae offer greater accuracy by accounting for the ellipsoidal shape.

5. What software can help me calculate line lengths? Various software packages, including GIS software (like ArcGIS or QGIS), CAD software (like AutoCAD), and mathematical software (like MATLAB or Mathematica), can efficiently calculate line lengths, especially for complex geometries.
