Delving into the Depths: The Laplace Operator in Cylindrical Coordinates

Imagine a shimmering heat haze rising from a hot asphalt road on a summer day. The temperature isn't uniform; it varies with height and distance from the road's surface. Describing this temperature variation mathematically requires a tool that can handle three dimensions, but in a way that reflects the symmetry of the situation – a cylindrical coordinate system seems perfect, doesn't it? This is where the Laplace operator in cylindrical coordinates comes into play. It's a powerful mathematical tool that allows us to analyze and understand phenomena like heat diffusion, fluid flow, and electromagnetism in systems best represented using cylindrical geometry. Let's unpack its intricacies and explore its real-world relevance.

1. Understanding the Laplace Operator

Before diving into cylindrical coordinates, let's grasp the fundamental concept of the Laplace operator (often denoted as ∇² or Δ). It's a differential operator that measures the second-order spatial derivatives of a scalar field. In simpler terms, it tells us how much a quantity, like temperature or electric potential, is curving or changing rapidly at a given point in space. In Cartesian coordinates (x, y, z), the Laplace operator has a familiar form:

∇²f = ∂²f/∂x² + ∂²f/∂y² + ∂²f/∂z²

where 'f' represents the scalar field.

2. The Cylindrical Coordinate System

The Cartesian system, while useful, isn't always the most efficient. Imagine analyzing the temperature distribution around a cylindrical pipe; using Cartesian coordinates would be cumbersome. Cylindrical coordinates (ρ, φ, z) provide a more natural description for such systems.

ρ (rho): The radial distance from the z-axis.
φ (phi): The azimuthal angle measured from the positive x-axis.
z: The height along the z-axis.

This system elegantly captures the radial symmetry inherent in many physical problems.

3. Deriving the Laplace Operator in Cylindrical Coordinates

The transformation from Cartesian to cylindrical coordinates is non-trivial, requiring the chain rule of calculus. The process involves expressing the Cartesian partial derivatives (∂/∂x, ∂/∂y, ∂/∂z) in terms of cylindrical partial derivatives (∂/∂ρ, ∂/∂φ, ∂/∂z). After a series of calculations (often involving Jacobian matrices), we obtain the Laplace operator in cylindrical coordinates:

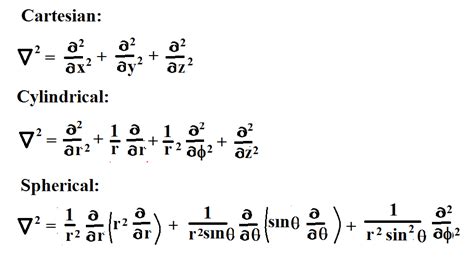

∇²f = (1/ρ) ∂/∂ρ (ρ ∂f/∂ρ) + (1/ρ²) ∂²f/∂φ² + ∂²f/∂z²

This equation looks more complex than its Cartesian counterpart, but its structure reveals important insights into the radial, angular, and axial variations of the scalar field.

4. Applications of the Laplace Operator in Cylindrical Coordinates

The versatility of this operator is immense. Here are a few key applications:

Heat Transfer: Analyzing temperature distribution in cylindrical objects like pipes, wires, or engine cylinders. Solving the heat equation (which involves the Laplace operator) helps determine thermal stresses and optimize designs for efficient heat dissipation.
Fluid Dynamics: Studying fluid flow in pipes or around cylindrical obstacles. The Navier-Stokes equations, governing fluid motion, often involve the Laplace operator for simplifying certain aspects of the flow, especially in the case of inviscid or irrotational flow.
Electromagnetism: Determining electric potential and magnetic fields around cylindrical conductors. Solving Laplace's equation (∇²V = 0, where V is the potential) provides insights into the distribution of charge and current.
Acoustics: Modeling sound wave propagation in cylindrical waveguides or around cylindrical objects. The wave equation, crucial for acoustics, incorporates the Laplace operator for analyzing sound field distributions.

5. Solving Laplace's Equation in Cylindrical Coordinates

Solving Laplace's equation (∇²f = 0) in cylindrical coordinates often involves techniques like separation of variables. This method assumes a solution in the form of a product of functions, each depending on only one of the cylindrical coordinates (ρ, φ, z). This allows us to transform the partial differential equation into a set of ordinary differential equations, which are easier to solve. The final solution is then a superposition of these individual solutions, often involving Bessel functions (for the radial component) and trigonometric functions (for the angular component).

Summary

The Laplace operator in cylindrical coordinates is a fundamental tool in mathematical physics and engineering. Its ability to elegantly describe phenomena with cylindrical symmetry makes it essential for tackling problems in diverse fields like heat transfer, fluid dynamics, electromagnetism, and acoustics. While its derivation might seem daunting, understanding its structure and appreciating its applications reveals its power and importance in solving real-world problems.

FAQs

1. Why is the Laplace operator important? The Laplace operator provides a way to quantify the curvature or rate of change of a scalar field, which is crucial in understanding many physical processes.

2. What are Bessel functions, and why do they appear in the solutions? Bessel functions are special functions that arise naturally as solutions to the radial part of Laplace's equation in cylindrical coordinates.

3. Can the Laplace operator be expressed in other coordinate systems? Yes, it can be expressed in spherical coordinates, elliptical coordinates, and other coordinate systems, each tailored to the symmetry of the problem.

4. Are there numerical methods for solving Laplace's equation in cylindrical coordinates? Yes, finite difference and finite element methods are commonly used for numerical solutions when analytical solutions are intractable.

5. How does the choice of coordinate system affect the complexity of solving a problem? Choosing the appropriate coordinate system (Cartesian, cylindrical, spherical, etc.) significantly impacts the complexity of solving a problem. A well-chosen coordinate system leverages the symmetry of the problem, simplifying the equations and potentially leading to analytical solutions.
