Decoding the IPv4 Datagram: A Deep Dive into Internet Communication



The internet, a seemingly seamless web connecting billions, relies on a complex choreography of data packets traversing vast distances. At the heart of this intricate dance lies the IPv4 datagram, the fundamental unit of data transmission in the Internet Protocol version 4. Understanding its structure and function is crucial for anyone seeking a deeper appreciation of how the internet works, from network administrators troubleshooting connectivity issues to developers building robust applications. This article will dissect the IPv4 datagram, revealing its inner workings and providing practical insights into its role in online communication.

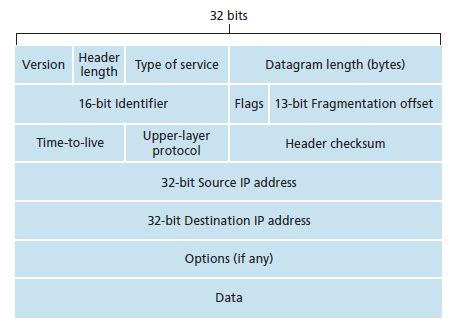

1. The IPv4 Datagram: Structure and Fields



An IPv4 datagram is essentially a container, meticulously structured to ensure reliable delivery of data across networks. It's composed of a header and a data payload. The header, a series of fields, provides essential information for routing and processing the packet, while the payload carries the actual data – be it an email, a web page request, or a video stream. Let's explore the key header fields:

Version (4 bits): Identifies the IP version (4 in this case).
Internet Header Length (IHL) (4 bits): Specifies the length of the header in 32-bit words. This is crucial because IPv4 headers can be extended with options.
Type of Service (TOS) (8 bits): Historically used for prioritizing packets (e.g., prioritizing VoIP traffic), this field is largely superseded by newer mechanisms like Differentiated Services Code Point (DSCP).
Total Length (16 bits): Indicates the total length of the datagram, including both header and data, in bytes.
Identification (16 bits): A unique identifier assigned to each datagram by the sending host, crucial for fragment reassembly.
Flags (3 bits): Control fragmentation. The most significant bit is the "Don't Fragment" flag, preventing fragmentation.
Fragment Offset (13 bits): Specifies the offset of a fragment within the original datagram.
Time to Live (TTL) (8 bits): Limits the datagram's lifespan, preventing routing loops. Each router decrements the TTL; when it reaches zero, the datagram is discarded.
Protocol (8 bits): Identifies the upper-layer protocol (e.g., TCP, UDP, ICMP).
Header Checksum (16 bits): A checksum used for error detection in the header.
Source IP Address (32 bits): The IP address of the sending host.
Destination IP Address (32 bits): The IP address of the receiving host.
Options (Variable Length): Optional fields providing additional functionalities (e.g., security, routing).
Padding (Variable Length): Ensures that the header length is a multiple of 32 bits.


2. Fragmentation and Reassembly



IPv4 datagrams have a maximum size of 65,535 bytes (determined by the "Total Length" field). Networks might have smaller Maximum Transmission Unit (MTU) sizes. If a datagram exceeds the MTU of a network link, it needs to be fragmented into smaller pieces. Routers perform fragmentation, adding fragment offset information to each fragment. The receiving host reassembles the fragments into the original datagram based on the identification and fragment offset fields. This process is essential for handling diverse network conditions. Failure in reassembly leads to data loss.


3. IPv4 Addressing and Routing



The source and destination IP addresses are fundamental for routing. Routers examine the destination IP address and use routing tables to determine the best path for forwarding the datagram. This path involves traversing multiple networks and routers until it reaches its final destination. The internet's routing infrastructure relies on sophisticated protocols like Border Gateway Protocol (BGP) and Open Shortest Path First (OSPF) to manage this complex task.


4. Real-World Examples and Practical Insights



Consider streaming a video from Netflix. The video data is broken down into numerous IPv4 datagrams, each carrying a small portion of the stream. These datagrams travel through the internet, potentially traversing thousands of routers, until they reach your device. Each router inspects the destination IP address and forwards the datagram along the optimal path. Errors in any part of the process – from fragmentation issues to routing failures – can lead to interruptions or buffering in the video stream. Network administrators constantly monitor and manage these processes to ensure smooth and reliable internet connectivity.


5. The Limitations of IPv4 and the Rise of IPv6



IPv4's 32-bit address space has been exhausted, leading to the development of IPv6, which employs a 128-bit address space. IPv4's limitations, such as address scarcity and the complexities of Network Address Translation (NAT), highlight the need for a more scalable and robust addressing scheme. While IPv4 remains dominant, the transition to IPv6 is ongoing to accommodate the growing demand for internet connectivity.


Conclusion



The IPv4 datagram is the cornerstone of internet communication. Understanding its structure, functions, and limitations provides valuable insights into the workings of the internet. While challenges remain, its fundamental role in transporting data remains pivotal, and its features such as fragmentation and addressing remain crucial elements in modern networking.


FAQs:



1. What is the difference between TCP and UDP and how does it relate to the IPv4 datagram? TCP and UDP are transport-layer protocols that run on top of the IP layer. The IPv4 datagram carries either TCP or UDP segments (or other protocol data) as its payload. TCP provides reliable, ordered delivery, while UDP is connectionless and faster but less reliable. The "Protocol" field in the IPv4 header identifies which transport protocol is used.

2. How does the Time to Live (TTL) field prevent routing loops? If a datagram gets trapped in a routing loop, it would circulate endlessly. The TTL field prevents this by setting a limit on the number of hops a packet can make. Once the TTL reaches zero, the packet is discarded.

3. What happens if an IPv4 datagram is corrupted during transmission? The header checksum allows detection of errors in the header. If the checksum doesn't match, the receiving host discards the datagram. However, errors in the payload are not detected by the IP layer; higher-level protocols might handle error detection.

4. What is Network Address Translation (NAT)? NAT is a technique used to conserve IPv4 addresses. It maps multiple private IP addresses within a network to a single public IP address. This allows multiple devices to share a single internet connection.

5. What are the key differences between IPv4 and IPv6 datagrams? The most significant difference is the address size (32 bits for IPv4, 128 bits for IPv6). IPv6 also simplifies the header structure and offers enhanced security features. IPv6 datagrams are generally larger but use a more efficient header format.
