Understanding the Internet's 5-Layer Stack: A Simplified Guide

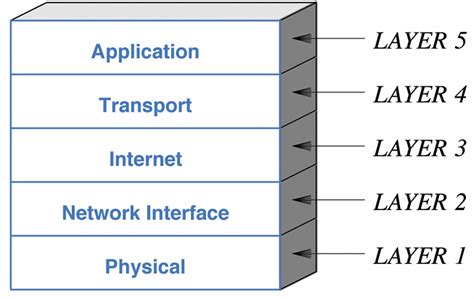

The internet, a seemingly magical network connecting billions of devices, relies on a structured system for communication. This system is known as the Internet Protocol Suite (often shortened to TCP/IP), but a simplified model often uses a five-layer stack to explain its functionality. Imagine it like a layered cake, each layer performing a specific task to ensure your data reaches its destination safely and efficiently. This article will break down each layer, using relatable examples to demystify this crucial technological foundation.

1. The Physical Layer: The Foundation

This is the most fundamental layer, the actual physical cables, wires, and wireless signals that transmit the raw data. Think of it as the road network for your data. This layer involves the physical hardware like ethernet cables, fiber optic lines, Wi-Fi antennas, and network interface cards (NICs) in your computer. It deals with the bits and bytes as raw electrical or optical signals, without any interpretation of their meaning.

Example: When you send an email, the physical layer is responsible for transmitting the data as electrical signals through your ethernet cable to your router. The router then transmits it via fiber optic cables to your internet service provider (ISP).

2. The Data Link Layer: Addressing Your Local Network

This layer handles communication within a local network (like your home or office network). It adds addressing information to ensure data gets to the correct device on that network. Think of it as the street addresses within a city. This layer uses MAC addresses (Media Access Control addresses) which are unique identifiers for each device. It also handles error detection and correction within the local network.

Example: Your computer has a unique MAC address, and your router uses this address to direct data packets to your specific device. If a packet gets corrupted during transmission within your home network, this layer will detect and potentially retransmit it. Protocols like Ethernet and Wi-Fi operate at this layer.

3. The Network Layer: Global Addressing and Routing

This layer is responsible for routing data across the internet. It uses IP addresses (Internet Protocol addresses), the global addresses of devices connected to the internet. Think of it as the global postal service – it determines the route your data takes to reach its final destination. This layer employs protocols like IP (Internet Protocol) and ICMP (Internet Control Message Protocol, used for pinging websites).

Example: When you type a website address (like google.com) into your browser, the network layer translates that into an IP address and determines the best route across the internet to reach Google's servers. Routers at various points along the route use IP addresses to forward the data packets.

4. The Transport Layer: Reliable Data Delivery

This layer ensures reliable data delivery between applications. It breaks down large amounts of data into smaller packets and reassembles them at the destination. It also handles error checking and flow control to prevent data loss or congestion. Two major protocols at this layer are TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).

Example: When you're streaming a video, TCP ensures that all the packets arrive in the correct order and without errors. If a packet is lost, TCP requests retransmission. UDP, on the other hand, is faster but less reliable, often used for live streaming where minor data loss is acceptable.

5. The Application Layer: The Interface You See

This is the topmost layer, the one you interact with directly. It provides the interface for applications like web browsers, email clients, and file transfer programs. It defines the protocols used for these applications, such as HTTP (Hypertext Transfer Protocol for websites), SMTP (Simple Mail Transfer Protocol for email), and FTP (File Transfer Protocol for file transfers).

Example: When you open your web browser and type in a URL, the application layer uses HTTP to communicate with the web server and retrieve the website's content. Your email client uses SMTP to send emails and POP3/IMAP to receive them.

Key Takeaways

Understanding the five-layer model helps us grasp how data travels across the internet. Each layer performs a specific function, building upon the previous one to ensure reliable and efficient communication. This knowledge is invaluable for troubleshooting network issues and appreciating the complexity of the internet's infrastructure.

FAQs

1. What is the difference between TCP and UDP? TCP provides reliable, ordered delivery of data, while UDP is faster but less reliable. TCP is used for applications where data loss is unacceptable (e.g., file transfers), while UDP is used for applications where speed is prioritized over reliability (e.g., online gaming).

2. What is an IP address? An IP address is a unique numerical identifier assigned to each device connected to the internet. It allows devices to locate and communicate with each other.

3. What is the role of a router? A router acts as a gateway between different networks. It forwards data packets based on their IP addresses, deciding the best path for them to take to reach their destination.

4. How does the internet handle errors? Error detection and correction mechanisms are implemented at multiple layers. The data link layer checks for errors within the local network, while the transport layer ensures reliable data delivery across the internet.

5. What happens if a packet is lost? If a packet is lost, the transport layer (using TCP) will request a retransmission. If using UDP, the lost packet is simply not replaced, potentially resulting in a slight degradation of service.
