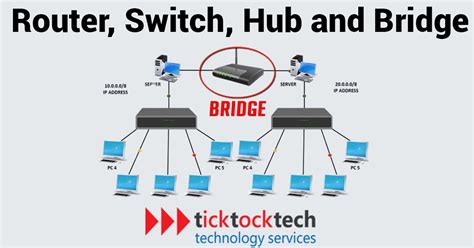

Image related to hub-and-bridge

Navigating the Network Maze: Understanding and Troubleshooting Hubs and Bridges



Network connectivity is the backbone of modern communication and data transfer. Understanding the fundamental building blocks of network infrastructure, particularly hubs and bridges, is crucial for effective network management and troubleshooting. While these devices might seem antiquated in the age of sophisticated switches and routers, grasping their functionality remains vital for maintaining older systems or understanding the evolution of networking technology. This article will explore the core differences between hubs and bridges, common problems encountered when using them, and effective strategies for resolving these issues.

Hubs: The Simplest Networking Devices



A hub is a basic networking device that operates at the physical layer (Layer 1) of the OSI model. It acts as a central point connecting multiple devices on a network. When a device transmits data, the hub receives it and broadcasts it to every other port connected to it, regardless of the intended recipient. This process, known as broadcast forwarding, is highly inefficient and can lead to network congestion, especially in larger networks. Think of a hub like a megaphone in a crowded room; everyone hears the message, even if it's not meant for them.

Common Hub Problems and Solutions:

Collisions: Since all devices share the same communication channel, collisions occur when multiple devices try to transmit data simultaneously. This leads to data loss and requires retransmission, slowing down the network significantly. Solution: Using hubs is generally discouraged in larger networks precisely because of this inherent limitation. Smaller networks with minimal traffic might tolerate hubs, but even then, the lack of collision detection makes them less desirable than switches.
Security Risks: The broadcast nature of hubs poses a security vulnerability. All traffic is visible to every device on the network, increasing the risk of eavesdropping and unauthorized access. Solution: Implement strong network security measures, such as firewalls and access control lists (ACLs), to mitigate these risks. However, this remains a bandaid solution rather than addressing the fundamental vulnerability of the hub architecture.
Limited Bandwidth: The shared bandwidth of a hub limits overall network performance. Each device competes for the same bandwidth, potentially leading to performance bottlenecks, especially during peak usage periods. Solution: Upgrade to a switch which offers dedicated bandwidth to each port.

Bridges: A Step Towards Smarter Networking



A bridge operates at the data link layer (Layer 2) of the OSI model. Unlike hubs, bridges learn the MAC addresses of devices connected to each port and forward data only to the intended recipient. This significantly improves network efficiency and reduces collisions compared to hubs. Bridges examine the MAC address of the frame and only forward it to the port connected to the intended recipient. Think of a bridge as a more intelligent message dispatcher, directing messages only to the intended recipient.

Common Bridge Problems and Solutions:

MAC Address Table Issues: The bridge's ability to forward data relies on its MAC address table. If the table is incomplete or contains errors, it can lead to incorrect data forwarding or network disruptions. Solution: Regularly monitor the bridge's MAC address table and ensure its accuracy. A restart might help clear inconsistencies. In more advanced configurations, dynamic MAC address learning is used to handle updates automatically.
Looping: If bridges are incorrectly configured or interconnected in a loop, it can lead to broadcast storms, a situation where broadcast frames continuously circulate within the loop, clogging the network. Solution: Careful planning and configuration are crucial. Using the Spanning Tree Protocol (STP) is a standard method to prevent loops by dynamically blocking redundant paths.
Limited Scalability: While bridges improve efficiency over hubs, they still have limitations regarding scalability. Managing a large network with numerous bridges can become complex. Solution: For larger networks, switches and routers are significantly more efficient and scalable.

Hubs vs. Bridges: A Comparative Overview



| Feature | Hub | Bridge |
|-----------------|----------------------------|-----------------------------|
| Layer | Physical (Layer 1) | Data Link (Layer 2) |
| Forwarding | Broadcast | Selective, MAC address-based |
| Collisions | Frequent | Less frequent |
| Bandwidth | Shared | More efficient |
| Security | Less secure | More secure |
| Scalability | Poor | Moderate |
| Cost | Generally cheaper | Generally more expensive |


Step-by-Step Troubleshooting of Hub and Bridge Issues



1. Identify the Problem: Observe network symptoms. Are there slowdowns, data loss, or connectivity issues?
2. Isolate the Device: Determine if the problem is related to a specific hub or bridge.
3. Check Cabling: Ensure proper cabling and connection at both ends.
4. Check Device LEDs: Examine the LEDs on the hub or bridge for indications of errors.
5. Check Configuration: Review the configuration settings (where applicable, such as MAC address tables in bridges).
6. Restart the Device: A simple restart often resolves temporary glitches.
7. Consult Documentation: Refer to the manufacturer's documentation for troubleshooting guides.
8. Advanced Diagnostics: Use network monitoring tools to analyze traffic patterns and identify bottlenecks.


Conclusion



Hubs and bridges represent different stages in the evolution of networking technology. While hubs offer simplicity at the cost of efficiency, bridges provide a significant improvement by utilizing MAC address learning. Understanding their functionalities, limitations, and common problems is vital for effective network management. For modern networking needs, switches and routers have largely replaced hubs and bridges due to their superior performance and scalability. However, familiarity with hubs and bridges is still valuable for supporting legacy systems or for comprehending the fundamental principles of network architecture.


FAQs



1. Can I mix hubs and bridges in the same network? Yes, but it's not recommended for optimal performance. Carefully plan your network topology to avoid inefficiencies. Bridges can help segment a network with hubs, but careful consideration is needed for broadcast domain implications.
2. What is a repeater, and how does it differ from a hub? A repeater operates at the physical layer, similar to a hub, but its primary function is to extend the signal range of a network, not to connect multiple devices.
3. Are hubs still used today? While largely obsolete in new network designs, hubs may still be found in older or very small networks.
4. How do I identify a faulty hub or bridge? Look for malfunctioning LEDs, consistent data loss, slow performance, and inconsistent connectivity. Network monitoring tools can provide more detailed diagnostics.
5. What is the best replacement for a hub or bridge in a modern network? A managed switch offers significantly better performance, security, and scalability than either hubs or bridges. For larger networks, a combination of switches and routers is generally required.
