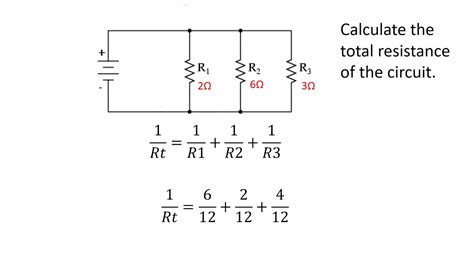

Image related to how-to-find-total-resistance-in-a-parallel-circuit

Finding Total Resistance in a Parallel Circuit: A Comprehensive Guide



Introduction:

Electrical circuits can be arranged in various configurations, the most common being series and parallel circuits. Understanding how to calculate the total resistance in each type is crucial for predicting current flow and voltage drops within the circuit. This article focuses specifically on determining the total resistance (often denoted as R<sub>T</sub> or R<sub>eq</sub>) in a parallel circuit. Unlike series circuits where resistances simply add up, calculating total resistance in a parallel circuit requires a different approach due to the unique way current distributes itself across multiple branches.

1. Understanding Parallel Circuits:

In a parallel circuit, each component (resistor, light bulb, etc.) is connected across the same voltage source, forming independent branches. This means the voltage across each component is identical to the voltage of the source. The key characteristic distinguishing parallel circuits is that current divides among the various branches. Imagine multiple pipes carrying water from a single source; each pipe receives the full water pressure (voltage) but carries a portion of the total water flow (current). This division of current allows parallel circuits to offer redundancy; if one branch fails, the others continue to function.

2. The Reciprocal Formula for Total Resistance:

The total resistance in a parallel circuit is always less than the smallest individual resistance. This is because adding more paths for current to flow effectively reduces the overall resistance to the current. The formula used to calculate total resistance in a parallel circuit is based on the reciprocal of resistance:

1/R<sub>T</sub> = 1/R<sub>1</sub> + 1/R<sub>2</sub> + 1/R<sub>3</sub> + ... + 1/R<sub>n</sub>

Where:

R<sub>T</sub> is the total resistance of the parallel circuit.
R<sub>1</sub>, R<sub>2</sub>, R<sub>3</sub>, ... R<sub>n</sub> are the individual resistances in each branch of the parallel circuit.


3. Step-by-Step Calculation:

Let's illustrate the process with an example. Consider a parallel circuit with three resistors: R<sub>1</sub> = 10 ohms, R<sub>2</sub> = 20 ohms, and R<sub>3</sub> = 30 ohms.

Step 1: Find the reciprocal of each individual resistance:

1/R<sub>1</sub> = 1/10 ohms = 0.1 Siemens (S)
1/R<sub>2</sub> = 1/20 ohms = 0.05 S
1/R<sub>3</sub> = 1/30 ohms = 0.0333 S

Step 2: Sum the reciprocals:

1/R<sub>T</sub> = 0.1 S + 0.05 S + 0.0333 S = 0.1833 S

Step 3: Find the reciprocal of the sum to obtain the total resistance:

R<sub>T</sub> = 1 / 0.1833 S ≈ 5.45 ohms

Therefore, the total resistance of the parallel circuit is approximately 5.45 ohms. Notice that this value (5.45 ohms) is smaller than the smallest individual resistance (10 ohms), as expected.

4. Special Cases:

Two Resistors: When only two resistors are in parallel, a simplified formula can be used:

R<sub>T</sub> = (R<sub>1</sub> R<sub>2</sub>) / (R<sub>1</sub> + R<sub>2</sub>)

This formula is derived from the reciprocal formula and is often easier to use when dealing with just two resistances.

Equal Resistors: If all resistors in the parallel circuit have the same value (e.g., R<sub>1</sub> = R<sub>2</sub> = R<sub>3</sub> = R), the total resistance is simply the individual resistance divided by the number of resistors:

R<sub>T</sub> = R / n

Where 'n' is the number of resistors. For example, if you have three 10-ohm resistors in parallel, the total resistance is 10 ohms / 3 = 3.33 ohms.

5. Practical Applications:

Understanding parallel circuits and total resistance calculations is vital in various applications. For instance, household electrical wiring is often configured in parallel to allow multiple appliances to operate independently. Each appliance represents a branch in the parallel circuit, and the total current drawn depends on the total resistance and the voltage supplied. Similarly, parallel circuits are used in lighting systems, where multiple lights can be switched on or off without affecting the operation of others.


Summary:

Calculating total resistance in a parallel circuit involves utilizing the reciprocal formula, which considers the combined effect of multiple current paths. This formula highlights the crucial fact that the total resistance is always less than the smallest individual resistance. By following the step-by-step procedure and understanding the special cases, one can accurately determine the total resistance, a fundamental step in analyzing and designing various electrical systems.


Frequently Asked Questions (FAQs):

1. Q: Can I use the series resistance formula (R<sub>T</sub> = R<sub>1</sub> + R<sub>2</sub> + ...) for parallel circuits?
A: No, the series resistance formula is only applicable to circuits where components are connected end-to-end. Parallel circuits require the reciprocal formula due to the independent current paths.


2. Q: What happens to the total resistance if I add another resistor in parallel?
A: The total resistance will always decrease. Adding more paths for the current to flow reduces the overall resistance of the circuit.


3. Q: What if one of the resistors in a parallel circuit is open (disconnected)?
A: The total resistance will increase significantly, possibly becoming infinitely large. The current will cease to flow through that branch, and the circuit's operation will be affected, depending on the overall circuit design.


4. Q: Can I use this method for circuits that have both series and parallel components?
A: Yes, but you'll need to break down the circuit into simpler series and parallel combinations, calculating the total resistance of each section step-by-step before combining them using the appropriate formulas.


5. Q: What are the units of resistance?
A: The standard unit of resistance is the ohm (Ω). Siemens (S) is the unit of conductance (the reciprocal of resistance).
