How To Divide A Network Into Subnets

Dividing Your Network into Subnets: A Comprehensive Q&A

Network segmentation, or dividing a network into subnets, is a crucial aspect of network administration. It's not just about organization; it significantly enhances network security, performance, and manageability. Without subnetting, a large network becomes unwieldy, vulnerable to broadcast storms, and difficult to troubleshoot. This article answers key questions to guide you through the process effectively.

I. Why Subnet? What are the benefits?

Q: Why would I need to subnet my network? Isn't one large network simpler?

A: While a single large network might seem simpler at first, it's highly inefficient and insecure for anything beyond a small home network. Imagine a single large network with hundreds of devices. This results in:

Broadcast storms: Every broadcast message floods the entire network, clogging bandwidth and slowing down everything. Subnetting limits broadcasts to smaller segments.
Security vulnerabilities: A compromised device on a large network has access to the entire network. Subnetting isolates different sections, limiting the impact of a breach.
Difficult troubleshooting: Identifying the source of problems becomes significantly harder in a large, unsegmented network.
Inefficient IP address allocation: Using a single large network quickly depletes available IP addresses.

II. Understanding IP Addresses and Subnet Masks

Q: What are IP addresses and subnet masks, and how do they relate to subnetting?

A: An IP address (e.g., 192.168.1.10) identifies a device on a network. A subnet mask (e.g., 255.255.255.0) defines the network portion of an IP address and differentiates it from the host portion. The subnet mask determines the size of the subnet. The combination of the IP address and subnet mask identifies a specific device on a specific subnet.

Q: How do I calculate the network address and broadcast address for a subnet?

A: To find the network address, perform a bitwise AND operation between the IP address and the subnet mask. The broadcast address is calculated by inverting the subnet mask (change 255 to 0 and vice versa), then performing a bitwise OR operation with the network address. For example, with the IP address 192.168.1.10 and subnet mask 255.255.255.0:

Network Address: 192.168.1.0
Broadcast Address: 192.168.1.255

III. Subnetting Techniques and Calculations

Q: How do I determine the appropriate subnet mask for my network?

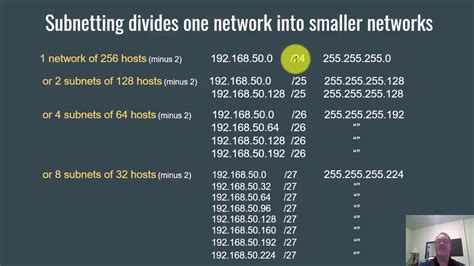

A: This depends on the number of subnets and hosts you need per subnet. You'll need to borrow bits from the host portion of the IP address to create more subnets. Each borrowed bit doubles the number of possible subnets. This usually involves using a subnet mask with more '1's in the network portion. Tools like subnet calculators can greatly assist with these calculations. For example, changing the subnet mask from 255.255.255.0 (/24) to 255.255.255.128 (/25) creates two subnets, each with half the number of usable host addresses.

Q: Can you provide a real-world example of subnetting?

A: Imagine a small office with three departments: Sales, Marketing, and IT. You have a /24 network (192.168.1.0/24). You could subnet this into three smaller networks:

Sales: 192.168.1.0/25 (126 usable hosts)
Marketing: 192.168.1.128/25 (126 usable hosts)
IT: 192.168.1.64/26 (62 usable hosts) - Requires further subnetting if more hosts are required.

IV. Implementing Subnetting

Q: How do I actually implement subnetting on my network?

A: Implementing subnetting involves configuring your routers and switches with the appropriate subnet masks and routing information. This usually involves:

1. Planning: Determine the number of subnets and hosts needed.
2. Calculating subnet masks: Use a subnet calculator to determine the appropriate subnet mask.
3. Configuring routers: Configure your routers with the necessary routing entries to direct traffic between subnets.
4. Configuring devices: Assign IP addresses and subnet masks to devices within their respective subnets.
5. Testing: Verify connectivity between subnets.

V. Conclusion:

Subnetting is a crucial skill for network administrators. By understanding IP addresses, subnet masks, and subnet calculations, you can effectively segment your network, improving security, performance, and manageability. Remember to plan carefully, utilize subnet calculators, and thoroughly test your implementation.

Frequently Asked Questions (FAQs):

1. Q: What is Classless Inter-Domain Routing (CIDR) notation? A: CIDR notation uses a slash followed by the number of bits in the network portion of the IP address (e.g., /24). This simplifies the representation of subnet masks.

2. Q: What happens if I assign conflicting IP addresses or subnet masks? A: This leads to network connectivity issues. Devices will not be able to communicate correctly.

3. Q: Can I subnet a subnet? A: Yes, you can create further subnets within existing subnets. This is often necessary to accommodate different departments or sections within a larger organization.

4. Q: What are VLSM and its benefits? A: Variable Length Subnet Masking (VLSM) allows you to use different subnet masks for different subnets, optimizing IP address utilization.

5. Q: What are some good tools for subnet calculations and network planning? A: Several free online subnet calculators and network planning tools are available, simplifying the process of determining the appropriate subnet masks and IP address ranges. Many network management software packages also incorporate these functions.
