Calculating Page Table Size: A Comprehensive Guide

Introduction:

Understanding how to calculate the size of a page table is crucial in computer architecture and operating systems. The page table is a vital data structure that maps virtual addresses used by processes to physical addresses in RAM. Its size directly impacts system performance and memory management efficiency. A larger page table means more memory consumed, potentially leading to slower access times and reduced available memory for applications. This article will guide you through calculating page table size, addressing various complexities and providing practical examples.

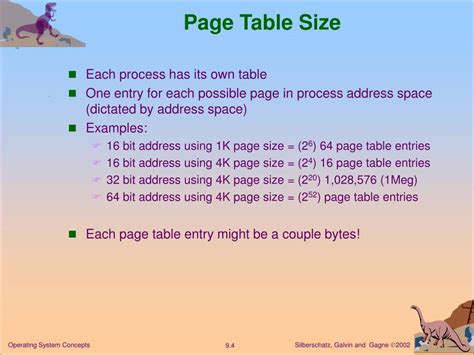

1. What are the fundamental components influencing page table size?

The size of a page table depends primarily on three factors:

Number of virtual pages: This is determined by the size of the virtual address space (VAS) and the page size. A larger VAS or smaller page size leads to more virtual pages. For example, a 32-bit system with a 4KB page size (2¹² bytes) has 2³² / 2¹² = 2²⁰ virtual pages.

Page table entry (PTE) size: Each entry in the page table stores information about a single virtual page, including its physical frame number, access permissions (read, write, execute), and other flags. A typical PTE might be 4 bytes (32 bits) or 8 bytes (64 bits) in size. The larger the PTE, the more memory the page table consumes.

Number of levels in the page table (if multi-level): Modern systems often employ multi-level page tables (e.g., two-level, three-level, or even more) to reduce the overall page table size for very large virtual address spaces. This is because a single, flat page table for a large VAS would be impractically huge. A multi-level table reduces memory consumption by only allocating entries for actually used pages.

2. How to calculate the size of a single-level page table?

This is the simplest scenario. The calculation is straightforward:

`Page Table Size = Number of virtual pages PTE size`

Example:

Consider a system with a 32-bit virtual address space and a 4KB page size. The PTE size is 4 bytes.

1. Number of virtual pages: 2³² / 2¹² = 2²⁰ = 1,048,576 pages
2. Page Table Size: 1,048,576 pages 4 bytes/page = 4,194,304 bytes = 4 MB

This demonstrates that even with a relatively small PTE size, a single-level page table for a 32-bit system can consume a significant amount of memory.

3. How to calculate the size of a multi-level page table?

Multi-level page tables are more complex. Let’s examine a two-level page table as an example. Imagine a 32-bit system with a 4KB page size and 4-byte PTEs. We’ll assume a 10-bit page offset.

1. Page directory size: The top-level page table (page directory) maps the virtual address space into smaller chunks (page tables). With a 10-bit page offset, we have 2²² virtual addresses left to manage (32-bit address - 10-bit offset). We'll use 12 bits to index into the page directory, leaving 10 bits for the second-level page table index. This means we have 2¹² = 4096 entries in the page directory. The total size of the page directory is 4096 entries 4 bytes/entry = 16KB.

2. Page table size (per entry in page directory): Each entry in the page directory points to a page table. These page tables contain entries for individual pages. We have 2¹⁰ = 1024 entries per page table, resulting in a size of 1024 entries 4 bytes/entry = 4KB per page table.

3. Maximum total size: In the worst-case scenario (all page tables are fully populated), the total size would be 16KB (page directory) + 4096 4KB (page tables) = 16MB. However, this is the maximum size. In reality, a multi-level page table is significantly more efficient because only page tables that map actually used virtual pages need to be allocated.

4. Real-world examples and considerations:

Modern operating systems like Linux and Windows use multi-level page tables to efficiently manage massive virtual address spaces. The exact number of levels and the size of each level vary depending on the architecture and operating system design. Furthermore, techniques like page table sharing and demand paging significantly reduce the memory footprint of page tables in practice.

Takeaway:

Calculating page table size involves understanding the virtual address space, page size, PTE size, and the number of levels in the page table. Single-level page tables are simple to calculate but can be inefficient for large address spaces. Multi-level page tables offer a significant improvement in space efficiency but add complexity to the calculation. The actual memory usage is often far less than the theoretical maximum due to optimizations like demand paging and page table sharing.

FAQs:

1. How does demand paging impact page table size? Demand paging allocates page table entries only when a page is accessed. This drastically reduces the memory footprint of the page table, particularly in systems with sparse memory usage.

2. What are inverted page tables and how do they affect size calculation? Inverted page tables use a single hash table indexed by physical page numbers, leading to a fixed-size table regardless of the number of virtual pages. The calculation differs significantly as it depends on the hash table size and implementation.

3. How does page table sharing affect memory consumption? Page table sharing among processes reduces overall memory usage by allowing multiple processes to share the same page table entries for identical memory regions. This is especially beneficial in virtual machines and applications using shared libraries.

4. What is the role of TLB (Translation Lookaside Buffer) in page table size calculation? While the TLB doesn't directly affect the calculation of the page table size, it significantly impacts performance. The TLB caches frequently used page table entries, reducing the need to access main memory for address translation.

5. How can I estimate the page table size for a specific system? You'd need information about the operating system, architecture (32-bit or 64-bit), page size, PTE size, and the number of levels in the page table. You can often find some of this information in system documentation or using system utilities (e.g., `/proc/` in Linux). However, precise calculation in real-world scenarios can be extremely complex due to dynamic allocation and system optimizations.
