Hexagonal Lattice Primitive Vectors

Understanding Hexagonal Lattice Primitive Vectors: A Simplified Guide

Crystalline materials, like snowflakes or silicon chips, possess an ordered internal structure, repeating in a specific pattern. This pattern is described using a lattice, and understanding its fundamental building blocks, the primitive vectors, is crucial for analyzing material properties. This article focuses on the hexagonal lattice, a common structure found in various materials, and explains its primitive vectors in a simple, accessible manner.

1. What is a Hexagonal Lattice?

Imagine a honeycomb – that’s a visual representation of a hexagonal lattice. It's a two-dimensional arrangement of points where each point is surrounded by six equidistant neighbors, forming hexagons. Extending this pattern in three dimensions creates a hexagonal close-packed (HCP) structure, a common crystal structure found in metals like magnesium, zinc, and titanium. The arrangement is incredibly efficient, maximizing the packing density of atoms.

2. Defining Primitive Vectors

The beauty of a lattice lies in its repetitive nature. We can describe the entire lattice using just a set of vectors, called primitive vectors, that, when added together in various combinations (integer multiples), generate all the lattice points. These vectors are not unique; multiple sets of primitive vectors can describe the same lattice. However, they must satisfy two crucial conditions: they must be linearly independent (meaning they don't point in the same or opposite directions), and they must generate all lattice points through integer linear combinations.

3. Primitive Vectors of a Hexagonal Lattice: A Visual Approach

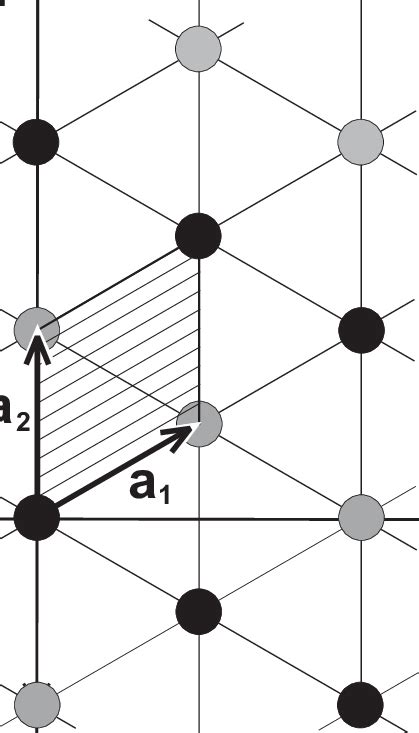

For a hexagonal lattice in two dimensions, we can define two primitive vectors, typically denoted as a₁ and a₂. Imagine these vectors starting from a single lattice point. a₁ points directly to one of its nearest neighbors. a₂ points to another nearest neighbor, making an angle of 120° with a₁. Both vectors have the same magnitude, which is equal to the distance between nearest neighbors.

In three dimensions (HCP structure), we need a third vector, c, which is perpendicular to the plane of the two-dimensional hexagonal lattice. Its magnitude is related to the height of the unit cell, often expressed as a multiple of the magnitude of a₁ and a₂.

The precise mathematical representation involves using Cartesian coordinates. For a 2D hexagonal lattice with lattice constant 'a', we can represent the vectors as:

a₁ = a(1, 0)
a₂ = a(1/2, √3/2)

Notice how combining integer multiples of these vectors can generate all the lattice points. For example, a₁ + a₂ points to a lattice point different from those defined by a₁ and a₂ alone.

4. Why Use Primitive Vectors?

Primitive vectors provide a concise mathematical description of the lattice. This allows us to:

Calculate lattice parameters: The lengths and angles between primitive vectors define the lattice parameters, essential for determining crystal properties.
Determine the unit cell: The unit cell is the smallest repeating unit of the lattice, and the primitive vectors define its edges.
Analyze diffraction patterns: In X-ray diffraction, understanding the lattice and its primitive vectors is crucial for interpreting the diffraction patterns and determining the crystal structure.
Simulate material properties: Computational methods utilize primitive vectors to build models of crystals and predict their behavior.

5. Practical Example: Graphite

Graphite is a classic example of a material with a hexagonal lattice. Each layer of graphite consists of a hexagonal arrangement of carbon atoms. The primitive vectors in the plane describe the arrangement within a layer, while the distance between layers defines the 'c' vector. Understanding these vectors is crucial for studying graphite's unique properties, such as its lubricity and electrical conductivity.

Actionable Takeaways:

The hexagonal lattice is a common and efficient structure in various materials.
Primitive vectors are fundamental to describing this lattice mathematically.
Understanding primitive vectors facilitates the analysis of crystal structure and properties.
Multiple sets of primitive vectors can describe the same lattice.

FAQs:

1. Are hexagonal lattices always two-dimensional? No, the hexagonal lattice extends to three dimensions in the hexagonal close-packed (HCP) structure.

2. What is the significance of the 120° angle between a₁ and a₂? This angle is a defining characteristic of the hexagonal symmetry and is essential for the structure’s overall packing efficiency.

3. How do I determine the primitive vectors experimentally? Techniques like X-ray diffraction provide data that allow you to calculate the lattice parameters and, therefore, the primitive vectors.

4. Can I use other vectors besides a₁ and a₂ to describe the hexagonal lattice? Yes, but the chosen vectors must satisfy the criteria of linear independence and the ability to generate all lattice points through integer combinations.

5. What if the hexagonal lattice is not perfect? Real crystals often have defects, which deviate from the ideal lattice. Primitive vectors describe the ideal lattice, and deviations are analyzed separately.
