Decoding the Harvard Architecture: Beyond the Textbook

Imagine a bustling city with two distinct, highly efficient transportation systems – one exclusively for passengers, the other solely for cargo. This parallel efficiency is the essence of the Harvard architecture in computer science. Unlike its Von Neumann counterpart, which uses a single address space for both instructions and data, the Harvard architecture employs separate memory spaces for each, leading to significantly improved performance, especially in real-time applications. Let’s delve deeper into this fascinating architectural design and explore its impact on the world around us.

1. The Fundamental Difference: Separate Memory Spaces

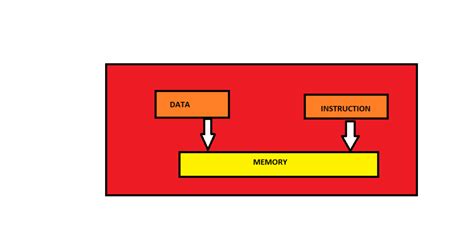

The core principle differentiating the Harvard architecture from the Von Neumann architecture lies in its use of separate memory buses and address spaces for instructions (program code) and data. In a Von Neumann system, both instructions and data share the same memory bus, creating a bottleneck, particularly when fetching instructions and data concurrently. The Harvard architecture circumvents this limitation by allowing simultaneous access to both instruction and data memory, leading to faster processing. This is analogous to having separate lanes for cars (data) and trucks (instructions) on a highway – significantly reducing congestion and improving overall traffic flow.

2. Advantages of the Harvard Architecture: Speed and Efficiency

The separation of memory spaces in the Harvard architecture translates into several key advantages:

Increased Processing Speed: Concurrent access to instructions and data eliminates the "Von Neumann bottleneck," resulting in a significant speed boost. This is crucial for applications requiring real-time processing, like embedded systems and digital signal processing (DSP).
Improved Instruction Fetching: Dedicated instruction memory allows for continuous instruction fetching without interfering with data access. This streamlined process enhances the overall efficiency of the system.
Enhanced Memory Management: Managing separate memory spaces simplifies memory allocation and management. This is particularly beneficial in systems with limited memory resources.
Flexible Memory Organization: The Harvard architecture allows for different memory technologies to be used for instructions and data. For example, faster, more expensive memory can be allocated for instructions, while slower, cheaper memory can be used for data.

3. Real-World Applications: Where Harvard Architecture Shines

The Harvard architecture's benefits are particularly pronounced in specific application domains:

Embedded Systems: Microcontrollers found in everyday devices like washing machines, automobiles, and smartphones heavily rely on Harvard architecture for efficient and timely execution of control programs. The real-time responsiveness required in these applications necessitates the speed and parallelism offered by this architecture.
Digital Signal Processing (DSP): Applications involving real-time signal processing, such as audio and video processing, benefit greatly from the Harvard architecture's ability to handle large volumes of data concurrently. Think about noise cancellation in headphones or video compression algorithms – these are often implemented using DSP processors based on the Harvard architecture.
Graphics Processing Units (GPUs): Modern GPUs utilize a modified version of the Harvard architecture to handle the massive parallel processing required for rendering complex graphics. The separate memory spaces allow for efficient fetching of both instructions and texture data, resulting in faster rendering times and smoother graphics.
Early Computers: Interestingly, many early computers, before the dominance of the Von Neumann architecture, employed the Harvard architecture, showcasing its historical significance.

4. Limitations of the Harvard Architecture: Addressing Challenges

While the Harvard architecture offers substantial advantages, it also presents some limitations:

Memory Fragmentation: Efficient memory management is crucial to prevent memory fragmentation in separate memory spaces.
Increased Complexity: The design and implementation of a Harvard architecture system can be more complex compared to a Von Neumann architecture.
Data Transfer Overhead: Transferring data between instruction and data memory might introduce some overhead, although this is often negligible compared to the overall performance gains.

5. Modified Harvard Architectures: Bridging the Gap

Modern systems often employ a "modified Harvard architecture," which combines elements of both Harvard and Von Neumann architectures. This hybrid approach allows for both separate memory spaces for instructions and data (like in pure Harvard architecture) but also provides mechanisms for sharing memory between the two spaces when needed. This approach offers the advantages of both architectures, minimizing their respective limitations.

Conclusion: A Powerful Architectural Choice

The Harvard architecture, with its distinct approach to memory management, has significantly impacted the development of high-performance computing. Its ability to enhance processing speed and efficiency makes it a preferred choice for real-time applications and systems requiring concurrent access to instructions and data. While limitations exist, the advancements in modified Harvard architectures and efficient memory management techniques continue to improve its applicability and relevance in modern computing.

FAQs: Addressing Common Questions

1. What is the main difference between Harvard and Von Neumann architectures? The primary difference is that the Harvard architecture uses separate memory spaces for instructions and data, while the Von Neumann architecture uses a single address space for both.

2. Which architecture is faster, Harvard or Von Neumann? Generally, the Harvard architecture is faster due to its ability to fetch instructions and data concurrently.

3. Is the Harvard architecture suitable for all applications? No, the added complexity and potential memory management challenges make it less suitable for applications where simplicity and low power consumption are paramount.

4. What is a modified Harvard architecture? It's a hybrid approach that combines features of both Harvard and Von Neumann architectures, providing the advantages of separate memory spaces while also allowing for memory sharing between the two.

5. Are modern computers using only one type of architecture? No, modern computers often utilize a combination of architectural principles, including modified Harvard architectures within specialized components like GPUs and DSPs, while employing a Von Neumann architecture for general-purpose processing.
