The Hidden Architecture of Everyday Materials: Exploring the Face-Centered Cubic (FCC) Structure

Ever wondered why your aluminum can is so lightweight yet strong, or why gold is so malleable? The answer, hidden at the atomic level, lies in the beautiful, intricate dance of atoms arranged in specific crystal structures. One such captivating arrangement is the face-centered cubic (FCC) structure, a common motif found in many metals and alloys that significantly influences their macroscopic properties. Let's delve into this microscopic marvel and uncover its secrets.

Understanding the FCC Lattice: A Three-Dimensional Jigsaw

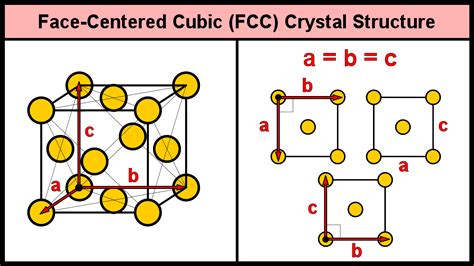

Imagine a cubic box. Now, place an atom at each corner of this box. This is a simple cubic arrangement, but not an FCC structure. To get the FCC arrangement, we add more atoms! Specifically, we place an atom at the center of each face of the cube. This seemingly simple addition dramatically alters the properties of the material. Each corner atom is shared by eight adjacent unit cells, contributing 1/8th of an atom to each. The six face-centered atoms contribute ½ an atom each. Adding these fractions together (8 x 1/8 + 6 x ½ = 4), we find that a single FCC unit cell contains four atoms. This compact arrangement is key to understanding the properties of FCC materials.

Think of it like building with LEGOs. A simple cubic structure would be quite unstable, prone to collapse. But the FCC structure, with its tightly packed atoms, is far more robust. This inherent stability directly translates into the physical properties of the materials it forms.

Atomic Packing Factor: Maximizing Space Efficiency

A critical characteristic of the FCC structure is its high atomic packing factor (APF). The APF represents the fraction of space within the unit cell that is occupied by atoms, assuming they are hard spheres. For FCC, this factor is a remarkable 0.74, meaning 74% of the unit cell's volume is filled with atoms. This high packing efficiency is a major reason why many FCC metals are relatively dense and strong. Compare this to a simple cubic structure, which has a much lower APF of only 0.52. The increased density in FCC materials leads to higher resistance to deformation under stress.

Consider the example of aluminum, a vital component in numerous applications, from aircraft bodies to beverage cans. Its FCC structure contributes to its lightweight yet surprisingly strong nature, perfect for these applications.

Slip Systems and Ductility: The Dance of Dislocations

The mechanical properties of FCC metals are greatly influenced by their slip systems. These are specific crystallographic planes and directions along which dislocations – imperfections in the crystal lattice – can easily move. FCC structures boast a multitude of slip systems (12), making them highly ductile. Ductility refers to the material's ability to deform plastically before fracturing. This means FCC metals can be bent, drawn into wires, or shaped without readily breaking. This is why gold, another FCC metal, is so famous for its malleability. The abundance of slip systems allows dislocations to easily glide through the crystal lattice, absorbing energy and preventing brittle fracture.

Think of hammering gold into a thin sheet – the many slip systems within its FCC structure allow for extensive plastic deformation without failure. This characteristic is exploited in jewelry making and other metalworking processes.

Real-World Applications: From Cans to Catalysts

The properties arising from the FCC structure make it ubiquitous in diverse applications. Aluminum (cans, aircraft), copper (wiring, plumbing), nickel (batteries, alloys), and gold (jewelry, electronics) are just a few examples of elements crystallizing in this structure. Moreover, many important alloys, such as stainless steel and brass, also adopt the FCC structure, further highlighting its significance in material science. The catalytic properties of certain FCC metals like platinum and palladium are also noteworthy, stemming from their ability to readily adsorb molecules onto their surfaces.

Conclusion: A Microscopic Masterpiece

The FCC structure is more than just a geometrical arrangement; it's a fundamental determinant of the macroscopic properties of a wide range of materials. Its high atomic packing factor, numerous slip systems, and resulting ductility and strength make it a critical structure in engineering and materials science. From the lightweight strength of an aluminum can to the malleability of gold, the FCC structure quietly underpins the functionality of countless everyday objects. Understanding this fundamental structure allows us to design and engineer materials with tailored properties for specific applications.

Expert-Level FAQs:

1. How does temperature affect the stability of the FCC structure? High temperatures can lead to phase transformations, potentially changing the crystal structure from FCC to another, like body-centered cubic (BCC). This is dependent on the specific material.

2. How does alloying affect the properties of FCC metals? Alloying can alter the lattice parameter, introduce different slip systems, and affect the strength and ductility of the material. This is often used to fine-tune properties for specific applications.

3. What are the limitations of FCC materials? While ductile, FCC metals can exhibit relatively low yield strength compared to some BCC metals. Their resistance to creep (deformation under sustained stress at high temperatures) can also be a limiting factor in certain high-temperature applications.

4. How is the FCC structure determined experimentally? Techniques like X-ray diffraction (XRD) are routinely used to identify the crystal structure of materials, revealing the characteristic diffraction patterns of the FCC lattice.

5. Can stacking faults alter the properties of an FCC material? Yes, stacking faults, which are disruptions in the regular stacking sequence of atomic planes, can significantly influence the mechanical properties and even the electrical conductivity of FCC materials, increasing their hardness and decreasing their ductility.
