External Standard Method: A Comprehensive Guide

Introduction:

In analytical chemistry, accurately determining the concentration of an analyte (the substance being measured) within a sample is paramount. Various methods exist to achieve this, and the external standard method is one of the most fundamental and widely used techniques. This method involves preparing a series of solutions with known concentrations of the analyte (standards) and measuring their responses (e.g., absorbance, signal intensity) using the same instrument and conditions as the unknown sample. By plotting the response versus concentration, a calibration curve is generated, allowing for the determination of the unknown sample's concentration based on its measured response. This article delves into the details of the external standard method, exploring its advantages, limitations, and practical applications.

1. Principle of the External Standard Method:

The external standard method relies on the linear relationship between the analyte concentration and its measured response. This relationship is often described by Beer-Lambert's law in spectrophotometry (A = εbc, where A is absorbance, ε is molar absorptivity, b is path length, and c is concentration), although the principle applies to various analytical techniques. The method assumes that the instrument's response is directly proportional to the analyte concentration within a specific range. To establish this relationship, a series of standard solutions with accurately known concentrations are prepared and analyzed. The obtained data is then used to construct a calibration curve, typically a linear regression. The unknown sample is measured under identical conditions, and its concentration is determined by interpolating its response on the calibration curve.

2. Procedure for Implementing the External Standard Method:

The implementation of the external standard method follows a structured procedure:

Preparation of Standard Solutions: A series of standard solutions with precisely known concentrations are prepared by accurately weighing or measuring the analyte and dissolving it in a suitable solvent. The concentration range should cover the expected concentration of the unknown sample. Typically, at least five standards are prepared to ensure the accuracy of the calibration curve.
Instrument Calibration and Measurement: The instrument (e.g., spectrophotometer, chromatograph) is calibrated and optimized according to its manufacturer's instructions. Each standard solution is measured, and the response (e.g., absorbance, peak area) is recorded. It is crucial to maintain consistent instrumental conditions throughout the measurements.

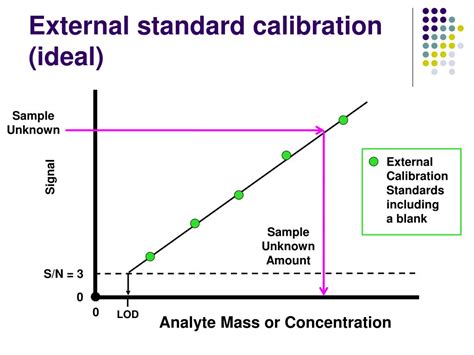

Calibration Curve Construction: The measured responses are plotted against their corresponding concentrations. A linear regression analysis is performed to determine the best-fit line, which represents the calibration curve. The equation of this line (typically y = mx + c, where y is the response, x is the concentration, m is the slope, and c is the intercept) is used for subsequent calculations.
Sample Measurement and Concentration Determination: The unknown sample is measured under the same conditions as the standards. Its response is then substituted into the equation of the calibration curve to calculate its concentration.

3. Advantages and Disadvantages of the External Standard Method:

Advantages:

Simplicity and Ease of Use: The method is relatively straightforward and requires minimal sample preparation.
Wide Applicability: It can be applied to a wide range of analytical techniques.
Cost-Effectiveness: It generally requires less expensive equipment and reagents compared to other methods.

Disadvantages:

Matrix Effects: Differences between the matrix (the composition of the solvent and other components) of the standards and the unknown sample can lead to inaccurate results. This is because the matrix can influence the analyte's response.
Preparation of Standards: Accurate preparation of standard solutions requires meticulous attention to detail and precise measurements. Errors in standard preparation directly affect the accuracy of the results.
Limited Applicability to Non-linear Responses: The method is most effective when the response is linearly proportional to the concentration. Non-linear relationships require more complex calibration procedures.

4. Examples and Applications:

The external standard method finds widespread application in various fields:

Environmental Monitoring: Determining the concentration of pollutants in water or soil samples. For example, measuring the concentration of heavy metals in wastewater using atomic absorption spectroscopy (AAS).
Pharmaceutical Analysis: Quantifying the active ingredient in pharmaceutical formulations using high-performance liquid chromatography (HPLC).
Food Analysis: Determining the concentration of nutrients or contaminants in food products. For example, measuring the concentration of pesticides in fruits and vegetables using gas chromatography-mass spectrometry (GC-MS).

5. Matrix Matching and Standard Addition Method:

To mitigate the problem of matrix effects, matrix matching is often employed. This involves preparing the standard solutions in a matrix that closely resembles the unknown sample's matrix. If matrix matching is not feasible, the standard addition method is a preferable alternative that minimizes matrix effects.

Summary:

The external standard method is a crucial technique in analytical chemistry for determining the concentration of an analyte in an unknown sample. Its simplicity and wide applicability make it a valuable tool in various fields. However, it is essential to be aware of its limitations, particularly regarding matrix effects and the assumption of linearity. Proper calibration curve construction and careful attention to detail are critical for obtaining accurate and reliable results. Employing matrix matching or considering alternative techniques like standard addition can significantly improve accuracy when matrix effects are suspected.

Frequently Asked Questions (FAQs):

1. Q: How many standard solutions should I prepare? A: Generally, at least five standards are recommended to ensure the accuracy of the calibration curve and assess its linearity.

2. Q: What should I do if my calibration curve is not linear? A: If the relationship between concentration and response is not linear, consider using a different analytical technique or applying a suitable transformation to linearize the data. Alternatively, consider using a non-linear regression model.

3. Q: How can I minimize errors in the external standard method? A: Ensure accurate preparation of standard solutions, maintain consistent instrumental conditions, and use a sufficient number of replicates for both standards and samples.

4. Q: What are the units for the slope and intercept of the calibration curve? A: The units depend on the analytical technique and the units of the response and concentration. For example, in spectrophotometry, the slope might have units of L/mol, while the intercept would be dimensionless.

5. Q: When should I consider using the standard addition method instead of the external standard method? A: The standard addition method is preferred when significant matrix effects are expected and matrix matching is not feasible. This method compensates for matrix interference by adding known amounts of the analyte directly to the sample.
