Euclidean Distance Excel

Euclidean Distance in Excel: A Comprehensive Guide

Euclidean distance, also known as the L2 distance, is a fundamental concept in mathematics and various fields like data science, machine learning, and statistics. It measures the straight-line distance between two points in a multi-dimensional space. This article explains how to calculate Euclidean distance in Microsoft Excel, illustrating its application with practical examples. Understanding Euclidean distance is crucial for tasks such as clustering, similarity analysis, and finding nearest neighbors.

1. Understanding the Euclidean Distance Formula

The Euclidean distance between two points, A and B, in an n-dimensional space is calculated using the following formula:

√[(x₁ - x₂)² + (y₁ - y₂)² + ... + (z₁ - z₂)²]

Where:

(x₁, y₁, ..., z₁) are the coordinates of point A.
(x₂, y₂, ..., z₂) are the coordinates of point B.

This formula essentially calculates the square root of the sum of the squared differences between corresponding coordinates of the two points. For a two-dimensional space (like a simple x-y plane), the formula simplifies to:

√[(x₁ - x₂)² + (y₁ - y₂)²]

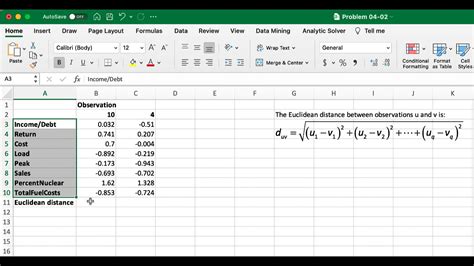

2. Calculating Euclidean Distance in Excel Using Formulas

Excel provides powerful functions to simplify the calculation of Euclidean distance. Let's consider a simple example. Suppose we have the coordinates of two points:

Point A: (2, 5)
Point B: (7, 10)

To calculate the Euclidean distance in Excel:

1. Enter the coordinates: Input the x and y coordinates of Point A in cells A1 and B1, and the coordinates of Point B in cells A2 and B2 respectively.

2. Calculate the squared differences: In cells C1 and D1, calculate the squared differences between the x and y coordinates:
C1: `=(A1-A2)^2`
D1: `=(B1-B2)^2`

3. Sum the squared differences: In cell E1, sum the squared differences: `=C1+D1`

4. Calculate the square root: Finally, in cell F1, calculate the square root of the sum to obtain the Euclidean distance: `=SQRT(E1)`

The value in cell F1 will represent the Euclidean distance between Point A and Point B. This method can easily be extended to higher dimensions by adding more columns for additional coordinates and adjusting the sum formula accordingly.

3. Using Excel for Higher Dimensional Data

The above method works seamlessly for higher dimensional data. Imagine you have data representing different products with features like price, weight, and size. Each product can be represented as a point in a three-dimensional space. You can easily adapt the Excel formula to calculate the distance between any two products. Simply add columns for each feature, calculate the squared differences for each feature, sum them, and then take the square root. This allows for efficient comparison and analysis of multi-featured data.

4. Applications of Euclidean Distance in Excel

Euclidean distance has numerous applications in Excel-based data analysis. Here are a few examples:

Clustering: Group similar data points together based on their proximity in the feature space. This is useful for market segmentation, customer profiling, or identifying similar products.

Nearest Neighbor Search: Find the data point closest to a given query point. This is used in recommendation systems (finding similar products or users) or anomaly detection (identifying outliers).

Similarity Analysis: Determine the similarity between different data points. A smaller Euclidean distance implies higher similarity. This can be used in comparing documents based on word frequencies or analyzing gene expression data.

Data Visualization: Although not directly visualized in Excel, the calculated Euclidean distances can inform the layout and interpretation of visualizations created in other software using the data.

5. Handling Large Datasets

For extremely large datasets, manually calculating Euclidean distances using formulas can be inefficient. In such cases, consider using Excel's array formulas or VBA (Visual Basic for Applications) macros to automate the process. Alternatively, specialized data analysis tools and programming languages like Python (with libraries like NumPy and SciPy) are more efficient for handling large-scale computations.

Summary

Calculating Euclidean distance in Excel provides a straightforward method for analyzing the proximity between data points in multi-dimensional space. While basic formulas suffice for smaller datasets, efficient techniques like array formulas or external tools are needed for larger ones. Understanding Euclidean distance is crucial for various data analysis tasks, allowing for meaningful insights and informed decisions.

FAQs

1. Can I calculate Euclidean distance between more than two points simultaneously in Excel? Not directly with a single formula. You'll need to calculate the distance pairwise using the formula described above for each pair of points.

2. What happens if the coordinates have negative values? The formula works correctly even with negative coordinates. The squaring operation ensures that negative differences contribute positively to the distance.

3. Are there other distance metrics besides Euclidean distance? Yes, several others exist, including Manhattan distance, Minkowski distance, and Hamming distance. Each metric has its own properties and applications.

4. How do I handle missing data when calculating Euclidean distance? Missing data requires careful handling. Options include imputation (filling in missing values with estimates), exclusion of data points with missing values, or using distance metrics specifically designed for incomplete data.

5. What if my data is not numerical? Euclidean distance is defined for numerical data. For categorical data, you'll need to use other similarity measures like Jaccard similarity or cosine similarity.
