Decoding the Ethernet Frame Header: A Troubleshooting Guide



The Ethernet frame header is the unsung hero of network communication. This seemingly small piece of data, prepended to every Ethernet packet, dictates how data is routed and processed across a network. Understanding its structure and potential issues is crucial for effective network troubleshooting and optimization. A poorly configured or misinterpreted header can lead to packet loss, network congestion, and ultimately, system failure. This article will delve into the intricacies of the Ethernet frame header, address common challenges, and provide practical solutions to help you navigate the complexities of network communication.

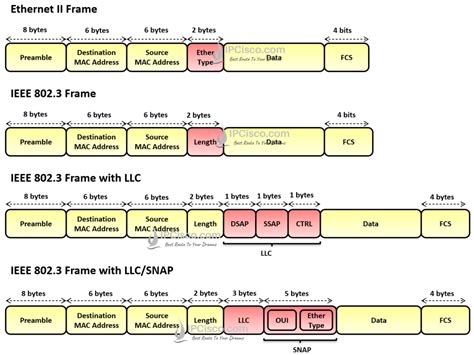

1. Structure and Fields of the Ethernet Frame Header



The Ethernet frame header consists of 14 bytes, meticulously organized into several fields, each with a specific purpose. Let's break them down:

Destination MAC Address (6 bytes): This field identifies the receiving device's unique Media Access Control (MAC) address. It's like a physical address for the network interface card (NIC).
Source MAC Address (6 bytes): This identifies the sending device's MAC address.
EtherType (2 bytes): This field indicates the type of network protocol encapsulated within the Ethernet frame. Common values include 0x0800 (IPv4) and 0x0806 (ARP). This is crucial for higher-layer protocols to understand the payload.


Example: Let's consider an Ethernet frame with the following header:

`Destination MAC: 00:16:3E:00:00:01`
`Source MAC: 00:0C:29:A7:3D:8A`
`EtherType: 0x0800`

This indicates a frame destined for a device with MAC address `00:16:3E:00:00:01`, sent from a device with MAC address `00:0C:29:A7:3D:8A`, and carrying an IPv4 packet.

2. Common Challenges and Troubleshooting Steps



Several issues can arise due to problems with the Ethernet frame header:

a) Incorrect MAC Addresses: If the destination MAC address is incorrect or not found on the network, the frame will be discarded. This often results from misconfigurations in network devices or faulty NICs.

Solution: Verify the MAC addresses of both sending and receiving devices using commands like `ipconfig /all` (Windows) or `ifconfig` (Linux/macOS). Ensure correct network cabling and device configurations. Using network monitoring tools like Wireshark can help pinpoint faulty MAC addresses in captured network traffic.

b) Incorrect EtherType: If the EtherType is invalid or doesn't match the encapsulated protocol, the receiving device might not be able to process the frame correctly.

Solution: Use network monitoring tools to inspect the EtherType field of problematic frames. If it's incorrect, investigate potential issues with the sending device's protocol stack or network drivers. Ensure the sending and receiving devices are using compatible protocols.


c) Frame Check Sequence (FCS) Errors: The Ethernet frame includes a 4-byte FCS at the end, used for error detection. If the FCS check fails, the frame is discarded. This usually indicates transmission errors due to cable problems or noise.

Solution: Check physical cabling for damage, loose connections, or interference. Try replacing cables. Investigate network interference sources like electrical appliances or other devices.


d) Header Corruption: Corruption in the header due to transmission errors can lead to unpredictable behavior.

Solution: This is often linked to FCS errors and cabling issues. Addressing the root cause of transmission errors will generally resolve header corruption. Using error correction mechanisms can improve robustness.

3. Using Network Monitoring Tools



Powerful tools like Wireshark provide invaluable insight into Ethernet frame headers. You can capture network traffic, filter based on MAC addresses or EtherTypes, and examine the detailed contents of each frame header. This allows for precise identification of errors and problematic packets.

Step-by-Step using Wireshark:

1. Install and launch Wireshark.
2. Select the network interface to capture traffic from.
3. Start capturing.
4. Reproduce the network issue.
5. Stop capturing.
6. Filter the captured packets (e.g., `ether host <MAC address>`).
7. Examine the Ethernet frame header of relevant packets.


4. Advanced Considerations: VLAN Tagging



Virtual LANs (VLANs) add an extra 4-byte tag to the Ethernet frame header. This allows for logical segmentation of a physical network, improving security and efficiency. Understanding VLAN tagging is crucial in more complex network environments. Incorrect VLAN tagging can lead to communication failures between VLANs. Troubleshooting VLAN issues often involves checking VLAN configurations on switches and network interfaces.


Conclusion



The Ethernet frame header, though small, plays a vital role in network communication. Understanding its structure, common challenges, and troubleshooting techniques is essential for network administrators and anyone working with network protocols. Using network monitoring tools provides crucial insights for identifying and resolving issues efficiently. Addressing physical cabling issues and verifying device configurations are key steps in resolving many Ethernet header-related problems.


FAQs



1. What happens if the destination MAC address is broadcast (FF:FF:FF:FF:FF:FF)? The frame is sent to all devices on the local network segment.

2. Can I change the source MAC address? Technically, yes, but it's generally discouraged and can lead to security issues and network instability. It's best to use the MAC address assigned by the NIC.

3. How does the Ethernet header differ from the IP header? The Ethernet header is responsible for communication at the data link layer (Layer 2), while the IP header handles communication at the network layer (Layer 3). The Ethernet header contains MAC addresses, while the IP header contains IP addresses.

4. What is the role of the FCS in ensuring reliable communication? The FCS (Frame Check Sequence) acts as a checksum, allowing the receiver to verify data integrity. If the calculated FCS doesn't match the received FCS, it indicates a transmission error.

5. What are some common tools beyond Wireshark for Ethernet header analysis? Other tools include tcpdump (command-line network analyzer), and various network management systems (NMS) that offer packet capture and analysis capabilities.
