Mastering Drop-Down Menus in Excel: A Beginner's Guide
Excel's versatility extends far beyond simple calculations. Data validation, a powerful feature, allows you to control the type of data entered into a cell. One of the most user-friendly and effective data validation tools is the drop-down menu. This article will guide you through creating and utilizing drop-down menus in Excel, transforming your spreadsheets from simple data entry forms into organized and error-free databases.
1. Understanding the Power of Drop-Down Menus
Drop-down menus, also known as data validation lists, restrict user input to a predefined set of values. This prevents accidental errors, ensures data consistency, and speeds up data entry. Imagine creating a spreadsheet to track customer orders. Instead of typing "Shirt," "Pants," or "Shoes" repeatedly, you can create a drop-down menu containing these options. This reduces typing errors and maintains consistency in your data. The benefit extends beyond simple text; you can also use drop-downs for numbers, dates, or even cell references.
2. Creating a Simple Drop-Down Menu
Let's walk through creating a basic drop-down menu. Assume you want to track the status of various projects: "To Do," "In Progress," and "Completed."
1. Select the cell(s): Click on the cell(s) where you want the drop-down menu to appear. You can select multiple cells simultaneously to apply the same validation to all of them.
2. Access Data Validation: Go to the "Data" tab on the Excel ribbon. Click on "Data Validation".
3. Settings: In the "Settings" tab of the Data Validation dialog box, under "Allow," choose "List."
4. Source: In the "Source" box, type your list of values, separated by commas. For our example, type: `"To Do,In Progress,Completed"` (without the quotes, but including the commas). Alternatively, you can select a range of cells containing your list. For instance, if you've written "To Do" in cell A1, "In Progress" in A2, and "Completed" in A3, you can type `=A1:A3` in the Source box.
5. Input Message (Optional): Click on the "Input Message" tab and check the "Show input message when cell is selected" box. You can add a title and instruction text to guide users.
6. Error Alert (Optional): The "Error Alert" tab allows you to customize a warning message that appears if a user tries to enter a value not in the list.

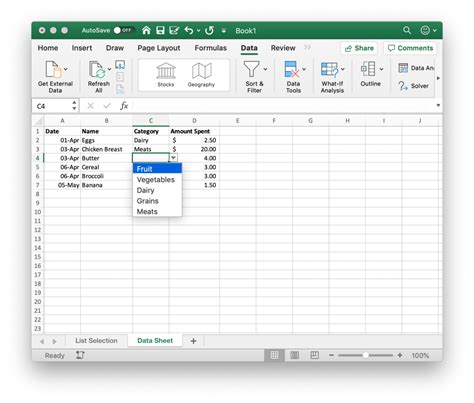

7. Click OK: Once you're satisfied with your settings, click "OK." A drop-down arrow will now appear in the selected cell(s).
3. Advanced Drop-Down Menu Techniques
The basic example above shows the fundamentals. Let's explore some more advanced applications:
Using named ranges: Instead of typing values directly into the "Source" box, you can create a named range (e.g., "ProjectStatus") containing your list. Then, you can simply type `=ProjectStatus` in the "Source" box. This makes your spreadsheets cleaner and easier to manage. To create a named range, select your list of values, go to the "Formulas" tab, and click "Define Name."
Dependent drop-down menus: Create cascading drop-downs where the options in one drop-down menu depend on the selection in another. For example, a first drop-down might list countries, and a second drop-down would list cities based on the selected country. This requires using formulas within the "Source" box of the second drop-down, using `INDIRECT` or `VLOOKUP` functions to dynamically change the list.
Using data from other worksheets or workbooks: Your data validation list doesn't have to be on the same worksheet. You can reference cells or ranges from other sheets or even other workbooks.
4. Troubleshooting Common Issues
Error messages: If you encounter an error when creating a drop-down, double-check your syntax in the "Source" box. Ensure that commas are used correctly to separate values, and that cell references are accurate.
Missing drop-down arrow: Check that you've selected the correct cells and that the "Data Validation" settings are applied correctly.
5. Key Takeaways
Drop-down menus are a powerful tool for improving data accuracy and consistency in Excel. Using named ranges and understanding dependent lists unlocks advanced functionalities. By implementing these techniques, you can transform your spreadsheets into efficient and user-friendly data management tools.
FAQs
1. Can I use formulas within my drop-down list? Yes, you can use formulas to dynamically generate the list of values, particularly helpful for dependent drop-down menus.
2. Can I add images to my drop-down options? No, drop-down menus only support text values.
3. What happens if I delete the source range of my drop-down menu? The drop-down menu will still function, but it will display the values that were originally in the source range when the validation was created. It is best practice to avoid deleting the source data unless you intend to rebuild the drop-down list.
4. How can I clear data validation from a cell? Select the cell(s), go to "Data Validation," and click "Clear All."
5. Can I use drop-down menus with numbers? Yes, absolutely. You can include numbers in your list, either directly typed in the "Source" or from a range containing numeric data.
