Mastering Developer Tools in Excel 2016: A Problem-Solving Guide
Microsoft Excel 2016, while renowned for its spreadsheet capabilities, offers a powerful yet often underutilized feature: the Developer tab. This tab unlocks a world of automation and customization, allowing developers and power users to significantly enhance Excel's functionality through VBA (Visual Basic for Applications) programming and form creation. However, navigating this powerful toolset can be challenging for newcomers. This article addresses common questions and challenges faced by users trying to leverage the Developer tab in Excel 2016, providing step-by-step solutions and insights to facilitate a smoother workflow.

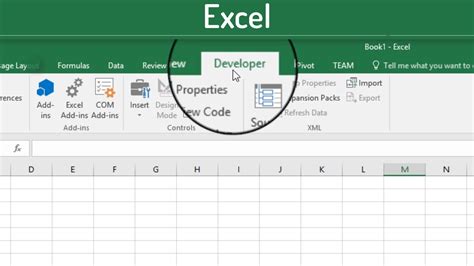

1. Enabling the Developer Tab
The first hurdle many encounter is the absence of the Developer tab in the Excel ribbon. This is because it's not enabled by default. Here's how to enable it:
Step 1: Open Excel 2016.
Step 2: Go to File > Options.
Step 3: Select Customize Ribbon from the left-hand menu.
Step 4: In the "Customize the Ribbon" section, under "Main Tabs," check the box next to "Developer."
Step 5: Click OK.
The Developer tab will now appear in your Excel ribbon.
2. Understanding VBA (Visual Basic for Applications)
VBA is the programming language that powers the Developer tab's automation capabilities. It allows you to create macros – sequences of instructions that automate repetitive tasks. Understanding the basics of VBA is crucial for effectively using the Developer tab.
Example: Creating a simple macro to sum a range of cells:
Step 1: Click the "Developer" tab, then click "Visual Basic" to open the VBA editor.
Step 2: Insert a new module (Insert > Module).
Step 3: Paste the following code into the module:
```vba
Sub SumRange()
Dim sum As Double
sum = Application.WorksheetFunction.Sum(Range("A1:A10"))
MsgBox "The sum of the range is: " & sum
End Sub
```
Step 4: Close the VBA editor and return to your Excel sheet.
Step 5: Go to the Developer tab, click "Macros," select "SumRange," and click "Run."
This macro will sum the values in cells A1 to A10 and display the result in a message box. This is a simple example; VBA allows for far more complex operations.
3. Working with Forms and Controls
The Developer tab allows you to insert various controls (buttons, text boxes, checkboxes, etc.) onto your worksheets to create user interfaces. This is particularly useful for building custom input forms or interactive dashboards.
Example: Adding a button to run a macro:
Step 1: Go to the Developer tab and click "Insert."
Step 2: Choose a button from the "Form Controls" section.
Step 3: Draw the button on your worksheet.
Step 4: The "Assign Macro" dialog box will appear. Select the macro you want to associate with the button (e.g., the "SumRange" macro from the previous example).
Step 5: Click "OK." Now, clicking the button will execute the assigned macro.
4. Debugging VBA Code
Errors in VBA code are inevitable. The VBA editor provides debugging tools to help identify and resolve these issues.
Common debugging techniques:
Step through code: Use the "Step Into" (F8) command to execute your code line by line, allowing you to inspect variable values at each step.
Breakpoints: Set breakpoints by clicking in the margin next to the line of code where you want execution to pause. This allows you to examine the program's state at a specific point.
Watch expressions: Add watch expressions to monitor the values of specific variables during execution.
Error handling: Use error handling statements (e.g., `On Error Resume Next`, `On Error GoTo`) to gracefully handle errors and prevent program crashes.
5. Importing and Exporting Data with VBA
VBA facilitates efficient data import and export from various sources. This can automate data transfer between Excel and databases, text files, or other applications. This requires understanding file I/O operations within VBA.
Summary
The Developer tab in Excel 2016 provides a powerful means to automate tasks and customize spreadsheets through VBA programming and form creation. Mastering these tools significantly enhances productivity and allows for the creation of sophisticated and interactive Excel solutions. While the learning curve can be steep initially, understanding the fundamentals of VBA, form controls, and debugging techniques provides a solid foundation for building advanced Excel applications.
FAQs:
1. Q: Can I use VBA code from older Excel versions in Excel 2016? A: Generally yes, but some minor adjustments might be necessary due to subtle changes in the VBA environment across versions.
2. Q: Where can I find more resources to learn VBA? A: Microsoft's official documentation, online tutorials (YouTube, Udemy, etc.), and community forums are excellent resources for learning VBA.
3. Q: What are the security implications of using macros? A: Macros can pose security risks if downloaded from untrusted sources. Enable macros only from reputable sources and exercise caution. Consider using digital signatures for your own macros to increase trust.
4. Q: How can I handle errors gracefully in my VBA code? A: Use `On Error GoTo` or `On Error Resume Next` statements to handle errors and prevent crashes. Include error-handling routines to log errors and provide user-friendly messages.
5. Q: Can I create user forms with custom layouts? A: Yes, the UserForm object in VBA allows you to create custom forms with various controls and layouts to design user interfaces tailored to your specific needs. This requires a deeper understanding of VBA and its object model.
