The Amazingly Efficient Packing of Atoms: Understanding Cubic Close Packing



Imagine trying to pack as many oranges as possible into a box. You'd instinctively start arranging them in layers, fitting them snugly together. Atoms, the fundamental building blocks of matter, face a similar challenge, but on an unimaginably smaller scale. Their arrangement, driven by the forces of attraction and repulsion, often results in highly efficient structures, one of which is the captivating cubic close-packed (CCP) structure. This arrangement, also known as face-centered cubic (FCC), is a testament to nature's elegant efficiency and underpins the properties of many important materials. Let's delve into the world of CCP, exploring its intricacies and real-world significance.

1. Visualizing the CCP Structure: Layers Upon Layers



Understanding CCP starts with envisioning layers of atoms. The first layer (Layer A) arranges itself in a hexagonal close-packed pattern – think of a honeycomb structure. The second layer (Layer B) sits on top, nestled into the depressions of the first layer. However, the atoms in Layer B do not sit directly above the atoms in Layer A; instead, they occupy the spaces between them, maximizing space utilization. The third layer (Layer C) presents a crucial point: it can either repeat the arrangement of Layer A, creating a hexagonal close-packed (HCP) structure, or it can adopt a new arrangement, denoted as Layer C, creating the cubic close-packed structure.

The key difference between HCP and CCP lies in the stacking sequence. HCP follows an ABABAB… pattern, while CCP follows an ABCABCABC… pattern. This seemingly minor difference in stacking has significant implications for the overall crystal structure and its resulting properties. In CCP, the fourth layer will sit directly above layer A, and the pattern repeats. This ABCABC… stacking creates a cubic unit cell, which is a repeating unit that represents the entire crystal structure.

2. The Cubic Unit Cell: Unveiling the Geometry

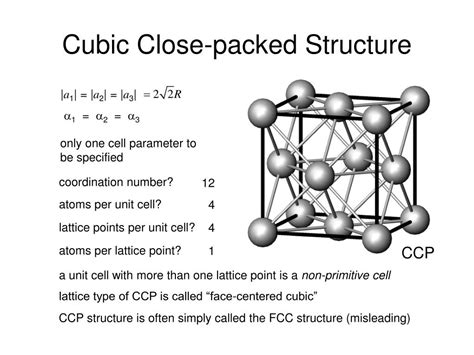

The cubic unit cell in CCP is not a simple cube; it's a face-centered cubic unit cell. This means that atoms are located at each of the eight corners of the cube and at the center of each of the six faces. Each corner atom is shared by eight adjacent unit cells, so only 1/8th of each corner atom belongs to a single unit cell. Each face-centered atom is shared by two unit cells, meaning only half of each face-centered atom belongs to a single unit cell. Therefore, a single CCP unit cell contains a total of 4 atoms (8 corner atoms × 1/8 + 6 face-centered atoms × 1/2 = 4 atoms).

This arrangement results in a remarkably high packing efficiency. Approximately 74% of the space within the CCP structure is filled with atoms, leaving minimal empty space. This high packing density contributes to the material's strength and density.

3. Coordination Number and Atomic Radius: Understanding the Relationships



The coordination number of an atom describes the number of its nearest neighbors. In a CCP structure, each atom is surrounded by twelve nearest neighbors – six in its own layer, three in the layer above, and three in the layer below. This high coordination number further contributes to the stability and strength of the structure.

The atomic radius (r) is also intricately linked to the lattice parameter (a) – the length of the side of the cubic unit cell. In CCP, the relationship is defined as: a = 2√2r. This geometric relationship allows us to calculate the unit cell dimensions if we know the atomic radius, and vice versa.

4. Real-world Applications: From Metals to Catalysts



CCP is not just a theoretical concept; it's a fundamental structural arrangement found in many important materials. Many metals, such as aluminum, copper, nickel, and silver, crystallize in a CCP structure. This structural arrangement directly influences their properties, contributing to their malleability, ductility, and conductivity. Furthermore, the high packing efficiency makes CCP structures ideal for applications requiring high density and strength.

Beyond metals, CCP structures are also found in some ionic compounds and intermetallic compounds, influencing their properties and behaviors. Nanoparticles with CCP structures have also garnered attention due to their potential in catalysis, offering unique active sites for chemical reactions.

5. Conclusion: The Elegance of Efficient Packing



The cubic close-packed structure is a testament to nature's elegant solution to efficient packing. Its intricate arrangement of atoms, resulting in a high packing efficiency and high coordination number, underpins the properties of a wide range of materials. From the metals used in everyday objects to cutting-edge catalysts, understanding CCP is crucial to comprehending the behavior and applications of countless materials. Its geometric beauty and practical importance make it a fascinating subject of study for anyone curious about the inner workings of the material world.


FAQs:



1. What is the difference between CCP and HCP? Both CCP and HCP achieve high packing efficiency, but they differ in their stacking sequence. CCP follows an ABCABC… sequence, resulting in a cubic unit cell, while HCP follows an ABABAB… sequence, resulting in a hexagonal unit cell. This difference affects their properties, such as anisotropy (direction-dependent properties).

2. Why is the packing efficiency of CCP 74%? The packing efficiency is calculated by dividing the volume occupied by atoms within the unit cell by the total volume of the unit cell. In CCP, the geometric arrangement leads to approximately 74% space being occupied by atoms.

3. Can all metals adopt a CCP structure? No, although many metals adopt CCP structures, others prefer body-centered cubic (BCC) or hexagonal close-packed (HCP) structures depending on factors such as atomic size and bonding characteristics.

4. What are the limitations of CCP structures? While highly efficient, CCP structures can be susceptible to certain types of deformation under stress, depending on the material's properties.

5. How is the CCP structure determined experimentally? Techniques such as X-ray diffraction can be used to determine the crystal structure of a material. The diffraction pattern obtained provides information about the arrangement of atoms within the material, revealing whether it's CCP, HCP, BCC, or another structure.
