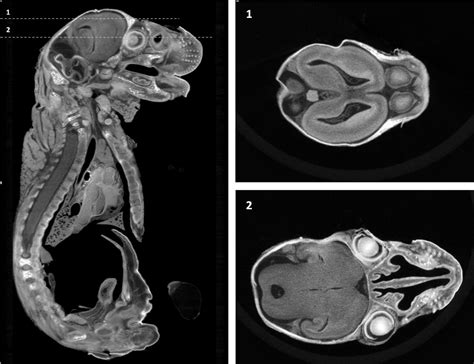

Image related to contrast-resolution-ct

Contrast Resolution in CT: Seeing the Subtle Differences



Computed tomography (CT) is a powerful medical imaging technique that uses X-rays to create detailed cross-sectional images of the body. While CT excels at showing anatomical structures, its ability to differentiate between tissues of similar densities, known as contrast resolution, is equally crucial for accurate diagnosis. This article delves into the concept of contrast resolution in CT, exploring its importance, influencing factors, and practical applications.


Understanding Contrast Resolution



Contrast resolution in CT refers to the ability of the scanner to distinguish between tissues with only slightly differing X-ray attenuation coefficients. Attenuation refers to how much a tissue absorbs or scatters X-rays. Tissues with similar densities, such as grey matter and white matter in the brain, or slightly different tumor tissue and surrounding healthy tissue, will have subtle differences in their X-ray attenuation. High contrast resolution means the CT scanner can clearly differentiate these subtle differences, leading to a clearer and more accurate image. Low contrast resolution, on the other hand, might blur these distinctions, potentially obscuring important diagnostic information. This is particularly critical when identifying small lesions or subtle changes in tissue density indicative of disease.

Factors Affecting Contrast Resolution



Several factors influence the contrast resolution of a CT scan:

Noise: Noise in a CT image appears as random variations in pixel intensity, obscuring subtle differences in tissue density. Higher noise levels reduce contrast resolution. Noise is affected by factors such as the radiation dose used, the reconstruction algorithms, and the detector characteristics. Lower radiation doses lead to higher noise.
Slice Thickness: Thicker slices average the signal from a larger volume of tissue, potentially blurring the differences between tissues with similar densities. Thinner slices generally improve contrast resolution by providing greater detail.
Pixel Size: Similar to slice thickness, smaller pixel size allows for better spatial resolution and improved contrast resolution by capturing finer anatomical details.
Reconstruction Algorithms: The algorithms used to reconstruct the image from the raw data significantly impact contrast resolution. Advanced iterative reconstruction techniques are often used to reduce noise and improve contrast resolution while simultaneously lowering radiation dose.
Contrast Media: Intravenous contrast agents, such as iodine-based solutions, are often used to enhance the visibility of certain structures. They increase the difference in X-ray attenuation between different tissues, thereby improving contrast resolution. This is especially vital in vascular imaging and the detection of lesions in organs like the liver or kidneys. For instance, a liver lesion might be indistinguishable from surrounding liver tissue without contrast, but becomes clearly visible after contrast administration.
Scatter Radiation: Scattered X-rays contribute to noise and reduce contrast resolution. CT scanners employ various techniques to minimize scatter, such as using collimators and scatter correction algorithms.


Clinical Applications and Importance of High Contrast Resolution



High contrast resolution is crucial in various clinical applications:

Oncology: Detecting small tumors or metastases often requires high contrast resolution to distinguish subtle density differences between the tumor and surrounding tissue.
Neurology: Differentiating between grey and white matter in the brain, identifying subtle ischemic changes, or detecting small hemorrhages requires high contrast resolution.
Abdominal Imaging: Identifying subtle changes in liver parenchyma, detecting small kidney stones, or differentiating between different types of bowel disease all benefit from high contrast resolution.
Cardiovascular Imaging: Assessing coronary artery calcification, detecting subtle plaque buildup, or differentiating between different types of heart tissue requires good contrast resolution.

A scenario illustrating this importance is detecting a small liver metastasis. Without sufficient contrast resolution, the small tumor might blend in with the surrounding liver tissue, leading to a missed diagnosis. However, with high contrast resolution, facilitated by optimal scanning parameters and potentially contrast media, the subtle density difference between the tumor and the liver parenchyma becomes apparent, enabling early detection and treatment.

Enhancing Contrast Resolution in Practice



Improving contrast resolution involves optimizing various parameters during the CT scan acquisition and reconstruction process. This includes using lower mA (milliamperage) to reduce noise, employing iterative reconstruction techniques, utilizing appropriate slice thickness and pixel size, and selecting the right contrast agent and administration protocol. Careful consideration of these factors ensures that the resulting images provide the highest possible diagnostic information.

Summary



Contrast resolution in CT is a critical factor determining the diagnostic accuracy of the scan. It represents the ability of the CT scanner to distinguish between tissues with subtle differences in density. Several factors influence contrast resolution, including noise, slice thickness, pixel size, reconstruction algorithms, contrast media, and scatter radiation. Optimizing these factors is crucial for enhancing image quality and facilitating accurate diagnoses across a wide range of clinical applications, particularly in oncology, neurology, and abdominal imaging. High contrast resolution enables the detection of small lesions, subtle tissue changes, and other crucial details that might otherwise be missed.


FAQs:



1. What is the difference between spatial resolution and contrast resolution in CT? Spatial resolution refers to the ability to distinguish between closely spaced objects, while contrast resolution refers to the ability to distinguish between objects with subtle differences in density.

2. How does the radiation dose affect contrast resolution? Lower radiation doses generally increase noise, which reduces contrast resolution. However, advanced reconstruction techniques can mitigate this effect.

3. What is the role of contrast media in improving contrast resolution? Contrast media increase the difference in X-ray attenuation between different tissues, making them easier to distinguish.

4. Can contrast resolution be improved post-acquisition? To a limited extent, yes. Post-processing techniques, such as image filtering and advanced reconstruction algorithms, can help improve contrast resolution, but this is not a replacement for optimizing scan parameters during acquisition.

5. What are the risks associated with using contrast media? Some individuals may experience allergic reactions to contrast media, including mild skin reactions, nausea, or more severe, though rare, anaphylactic reactions. A thorough medical history is essential before administering contrast media.
