Binary To Hexadecimal Converter

Decoding the Digital Language: A Deep Dive into Binary to Hexadecimal Converters

The digital world we inhabit relies fundamentally on binary code – a system using only two digits, 0 and 1, to represent all information. However, long strings of binary numbers can be cumbersome and difficult to read. Hexadecimal (base-16), with its sixteen digits (0-9 and A-F), offers a more compact and human-readable representation of the same data. This article will explore the crucial role of binary to hexadecimal converters, explaining how they work, their applications, and the underlying mathematical principles.

Understanding the Basics: Binary and Hexadecimal

Before delving into conversion methods, let's solidify our understanding of the two number systems.

Binary (Base-2): Uses only two digits, 0 and 1. Each digit represents a power of 2. For instance, the binary number 1011 is equivalent to (1 2³) + (0 2²) + (1 2¹) + (1 2⁰) = 8 + 0 + 2 + 1 = 11 in decimal.

Hexadecimal (Base-16): Uses sixteen digits: 0-9 and A (representing 10), B (11), C (12), D (13), E (14), and F (15). Each digit represents a power of 16. For example, the hexadecimal number 1A is (1 16¹) + (10 16⁰) = 16 + 10 = 26 in decimal.

The Logic Behind Binary to Hexadecimal Conversion

The efficiency of binary to hexadecimal conversion stems from the relationship between the two bases: 16 is a power of 2 (16 = 2⁴). This means that every four binary digits (a nibble) can be directly represented by a single hexadecimal digit.

The conversion process involves grouping the binary number into sets of four digits, starting from the rightmost digit. If the binary number doesn't have a multiple of four digits, add leading zeros to the left to complete the grouping. Then, each four-digit binary group is converted to its equivalent hexadecimal digit using a conversion table or simple arithmetic.

Methods of Conversion

There are two primary approaches to converting binary to hexadecimal:

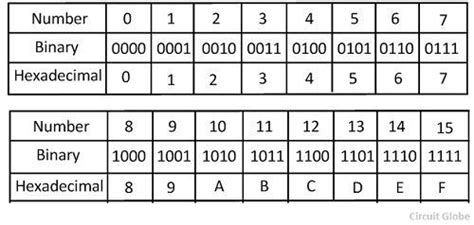

1. Using a Conversion Table: This is the simplest method. A table maps each four-digit binary number to its corresponding hexadecimal equivalent:

| Binary | Hexadecimal |
|---|---|
| 0000 | 0 |
| 0001 | 1 |
| 0010 | 2 |
| 0011 | 3 |
| 0100 | 4 |
| 0101 | 5 |
| 0110 | 6 |
| 0111 | 7 |
| 1000 | 8 |
| 1001 | 9 |
| 1010 | A |
| 1011 | B |
| 1100 | C |
| 1101 | D |
| 1110 | E |
| 1111 | F |

2. Direct Calculation: This method involves calculating the decimal equivalent of each four-bit binary group and then representing that decimal value with its hexadecimal equivalent.

Practical Example

Let's convert the binary number 1101100111010110 into hexadecimal:

1. Grouping: Divide the binary number into groups of four: 1101 1001 1101 0110
2. Conversion: Using the table or calculation, we get:
1101 = D
1001 = 9
1101 = D
0110 = 6
3. Result: The hexadecimal equivalent of 1101100111010110 is D9D6.

Applications of Binary to Hexadecimal Converters

Binary to hexadecimal converters are indispensable tools in various fields:

Computer programming: Representing memory addresses, color codes (in web development), and machine instructions.
Digital electronics: Analyzing and debugging digital circuits.
Data communication: Transmitting and interpreting data packets.
Cryptography: Handling encryption and decryption algorithms.

Conclusion

Binary to hexadecimal conversion is a fundamental process in computer science and digital electronics. Understanding this conversion simplifies the representation and manipulation of binary data, making it more manageable and readable for humans. The methods described, coupled with readily available online tools and software, make this conversion straightforward and efficient.

FAQs

1. Can I convert very large binary numbers to hexadecimal manually? While possible, it becomes tedious for extremely long binary strings. Using a converter tool is highly recommended for efficiency.

2. Are there any limitations to hexadecimal representation? Hexadecimal is more compact than binary, but it still represents the same information. It doesn't inherently add or remove information.

3. What are some freely available binary to hexadecimal converters online? Many websites and online calculators offer this functionality. A simple search will provide numerous options.

4. How does the conversion process differ for negative binary numbers? Negative binary numbers typically use two's complement representation. The conversion to hexadecimal follows the same grouping and table/calculation method, but the interpretation of the resulting hexadecimal number requires understanding two's complement.

5. Can I perform this conversion in programming languages like Python or C++? Yes, these languages offer built-in functions or libraries to facilitate the conversion between binary and hexadecimal representations.
