Unveiling the Secrets of Triangles: Exploring Area Through Vectors



Imagine you're a surveyor tasked with calculating the area of a triangular plot of land. Traditional methods might involve measuring angles and sides, a process that can be time-consuming and prone to error, especially in challenging terrain. But what if there was a more elegant, efficient, and powerful method? Enter the world of vectors, offering a fascinating and insightful approach to calculating the area of a triangle. This article will delve into the concept of the area of a triangle using vectors, revealing its beauty and practicality.


1. Understanding the Basics: Vectors and their Properties



Before diving into the area calculation, let's establish a solid foundation in vectors. A vector is a mathematical object that possesses both magnitude (length) and direction. Unlike scalars (like temperature or mass), which are only defined by their magnitude, vectors are represented graphically as arrows, where the length represents the magnitude and the arrowhead indicates the direction. We often denote vectors using boldface letters (e.g., a, b) or with an arrow above the letter (e.g., $\vec{a}$, $\vec{b}$).

Key vector operations crucial for our exploration include:

Vector Addition: Geometrically, this involves placing the tail of one vector at the head of the other and drawing a vector from the initial tail to the final head. Algebraically, it involves adding the corresponding components of the vectors.
Vector Subtraction: Similar to addition, but we reverse the direction of the vector being subtracted before adding it.
Scalar Multiplication: Multiplying a vector by a scalar (a number) changes its magnitude but not its direction (unless the scalar is negative, in which case the direction reverses).


2. The Cross Product: A Gateway to Area



The key to calculating the area of a triangle using vectors is the cross product. The cross product is a binary operation on two vectors in three-dimensional space, resulting in a new vector that is perpendicular to both original vectors. The magnitude of this resulting vector is directly related to the area of the parallelogram formed by the two original vectors.

Mathematically, the cross product of two vectors a = (a₁, a₂, a₃) and b = (b₁, b₂, b₃) is given by:

a x b = (a₂b₃ - a₃b₂, a₃b₁ - a₁b₃, a₁b₂ - a₂b₁)

The magnitude of the cross product, ||a x b||, represents the area of the parallelogram formed by a and b. Since a triangle is half of a parallelogram, the area of a triangle with sides represented by vectors a and b is:

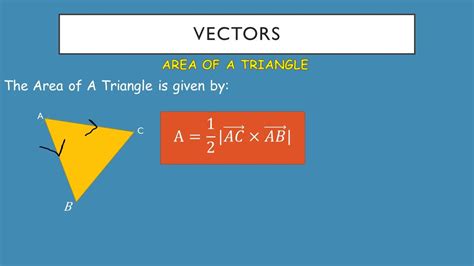

Area = (1/2) ||a x b||


3. Applying the Formula: A Step-by-Step Guide



Let's illustrate the process with an example. Consider a triangle with vertices A = (1, 2, 3), B = (4, 1, 0), and C = (2, 5, 2).

1. Form Vectors: We create two vectors representing two sides of the triangle. Let's use a = AB = B - A = (3, -1, -3) and b = AC = C - A = (1, 3, -1).

2. Calculate the Cross Product: Using the formula above, we find:

a x b = ((-1)(-1) - (-3)(3), (-3)(1) - (3)(-1), (3)(3) - (-1)(1)) = (10, 0, 10)

3. Find the Magnitude: The magnitude of the cross product is:

||a x b|| = √(10² + 0² + 10²) = √200 = 10√2

4. Calculate the Area: Finally, the area of the triangle is:

Area = (1/2) ||a x b|| = (1/2)(10√2) = 5√2 square units.


4. Real-World Applications: Beyond the Textbook



The vector method for calculating triangle area isn't just a theoretical exercise. It finds significant applications in various fields:

Computer Graphics: Determining the area of polygons in 3D modeling and game development.
Physics: Calculating the area of force vectors in mechanics problems, especially those involving torque.
Engineering: Estimating the surface area of irregular shapes in structural design and civil engineering.
Geographic Information Systems (GIS): Determining the area of land parcels and calculating distances between points on a map.


5. Summary and Reflection



This exploration of calculating the area of a triangle using vectors reveals the power and elegance of vector algebra. By leveraging the cross product, we can bypass the complexities of traditional trigonometric methods, obtaining a more direct and efficient solution. The process, while involving some algebraic manipulation, provides a clear and systematic approach applicable across numerous disciplines. The real-world implications highlight the importance of understanding vector mathematics beyond theoretical concepts.


FAQs:



1. Can this method be used for triangles in 2D space? Yes, you can treat 2D vectors as 3D vectors with a z-component of 0.

2. What happens if the cross product is the zero vector? This indicates that the two vectors are parallel, meaning the triangle is degenerate (has zero area).

3. Is this method always more efficient than traditional methods? While generally more efficient for complex triangles or in higher dimensions, for simple triangles with easily measurable sides and angles, traditional methods might be quicker.

4. Can this method be extended to polygons with more than three sides? Yes, by dividing the polygon into triangles and summing the areas of the individual triangles.

5. Are there alternative vector methods for calculating the area of a triangle? Yes, using the determinant of a matrix formed from the coordinates of the vertices is another common approach.
