Angular Velocity Cross Product

Understanding Angular Velocity and the Cross Product: A Deep Dive

Imagine a spinning top. Its every point is moving, yet it's not translating across the table. This motion, rotation about an axis, is described by a powerful mathematical tool: angular velocity. But understanding angular velocity fully requires grasping its vector nature and, crucially, its relationship with the cross product. This article will delve into the intricacies of angular velocity, focusing on its representation as a vector and its calculation using the cross product, providing both theoretical understanding and practical applications.

1. Defining Angular Velocity: More Than Just Speed

Angular speed, a scalar quantity, simply tells us how fast something is rotating – often measured in revolutions per minute (RPM) or radians per second (rad/s). However, this alone is insufficient. A spinning top spinning clockwise is fundamentally different from one spinning counterclockwise, even at the same speed. This is where angular velocity, a vector quantity, shines.

Angular velocity (ω, omega) is a vector whose magnitude represents the rotational speed and whose direction indicates the axis of rotation according to the right-hand rule. Point your thumb in the direction of the angular velocity vector; your curled fingers indicate the direction of rotation. This allows us to uniquely define the rotation, capturing both speed and direction. For example, a spinning wheel with an angular velocity pointing upwards signifies counterclockwise rotation viewed from above.

2. The Cross Product: A Gateway to Angular Velocity

The cross product, denoted by '×', is a binary operation on two vectors that results in a third vector perpendicular to both. This perpendicularity is crucial for understanding angular velocity because the rotation always occurs around an axis perpendicular to the plane of motion.

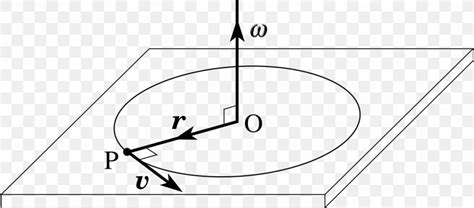

Consider a particle moving in a circular path. Its position vector r points from the center of rotation to the particle. Its velocity vector v is always tangential to the circle. The angular velocity vector ω is then given by the cross product:

ω = v × r / ||r||²

Where ||r|| represents the magnitude of the vector r. Notice the inverse square relationship with the distance from the center; the farther away the point is, the slower the angular velocity for a given tangential speed. It's important to note that this formula is for a single particle and often, especially in rigid body dynamics, a slightly different approach is used.

3. Angular Velocity in Rigid Body Motion

In most real-world scenarios, we deal with extended objects (rigid bodies) rather than single particles. For a rigid body rotating about a fixed axis, the angular velocity is the same for all points in the body. This simplifies the calculation. The angular velocity vector still points along the axis of rotation, and its magnitude represents the rotational speed.

However, for more complex rotations (e.g., a tumbling satellite), the angular velocity vector can change over time and may not even be constant in magnitude. In such cases, the cross product still plays a critical role in describing the instantaneous velocity of any point on the body:

v = ω × r

This equation links the angular velocity of the rigid body to the linear velocity of any point (r) on the body relative to the axis of rotation.

4. Real-World Applications

The concept of angular velocity and the cross product are fundamental in numerous fields:

Robotics: Precise control of robotic arms and manipulators relies on accurate calculation of angular velocities to ensure smooth and coordinated movement.
Aerospace Engineering: Analyzing the flight dynamics of aircraft and spacecraft, including spin stabilization and attitude control, heavily involves angular velocity calculations.
Automotive Engineering: Understanding the rotational motion of engine components, wheels, and other parts is essential for designing efficient and safe vehicles.
Physics: From planetary motion to the spin of subatomic particles, angular velocity is a ubiquitous concept in classical and quantum mechanics.
Computer Graphics: Simulating realistic 3D rotations in games and animation relies on accurate representation and manipulation of angular velocity vectors.

5. Beyond the Basics: More Complex Scenarios

The concepts discussed so far primarily focus on rotation about a fixed axis. However, more complex situations arise, such as rotation about a moving axis or the combined effects of rotation and translation. In these advanced scenarios, the cross product remains a crucial tool but requires more sophisticated mathematical techniques, often involving Euler angles or quaternions for describing the orientation and angular velocity.

Conclusion

The angular velocity cross product is not merely an abstract mathematical concept; it's a powerful tool for describing and analyzing rotational motion in diverse real-world applications. Understanding its vector nature and its relationship with the cross product is crucial for comprehending rotational dynamics in fields ranging from robotics to astrophysics. By mastering this concept, you unlock a deeper understanding of the mechanics of the rotating world around us.

Frequently Asked Questions (FAQs)

1. What happens if the vectors in the cross product are parallel? The resulting angular velocity vector would have zero magnitude, indicating no rotation around that axis.

2. Can angular velocity be negative? The magnitude of angular velocity is always positive, representing the speed of rotation. The negative sign only implies a change in the direction of the rotation axis based on the right-hand rule.

3. How do I convert RPM to radians per second? Multiply the RPM value by 2π/60.

4. What is the difference between angular velocity and angular acceleration? Angular velocity describes the rate of change of angular position, while angular acceleration describes the rate of change of angular velocity.

5. How does the concept of angular momentum relate to angular velocity? Angular momentum is the product of moment of inertia and angular velocity. It represents the rotational equivalent of linear momentum. It's a vector quantity and is conserved in the absence of external torques.
