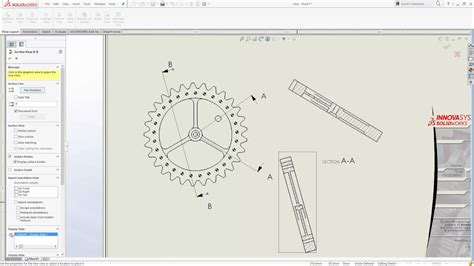

Image related to aligned-section-view-solidworks

Unlocking the Power of Aligned Section Views in SolidWorks: A Deep Dive



Ever stared at a complex SolidWorks assembly, feeling overwhelmed by the sheer volume of parts obscuring the crucial internal details? You're not alone. Understanding and effectively using section views, especially aligned section views, is a game-changer for communicating design intent and simplifying complex geometries. It's about transforming a confusing jumble of lines into a clear, concise representation that speaks volumes. Let's dissect this powerful SolidWorks tool and unlock its full potential.

Understanding the Fundamentals: Section Views in SolidWorks



Before diving into the nuances of aligned section views, let's establish a baseline. A section view in SolidWorks, simply put, is a view that shows a cut-away of your model, revealing internal features that would otherwise be hidden. This is crucial for showcasing intricate internal mechanisms, confirming clearances, and generally making your design intentions clear. Think of it as a virtual surgical incision, allowing you to peer inside your digital creation.

There are several types of section views, including full section views (cutting through the entire part), half section views (cutting only half, preserving the external view of the other half), and broken-out section views (revealing a specific area of interest). Aligned section views are a sophisticated subtype that adds a significant layer of control and visual clarity.

The Power of Alignment: What Makes Aligned Section Views Unique?



Standard section views are created along a cutting plane defined by a line or a series of lines. This is fine for simple geometries. However, imagine a complex assembly where the internal components don't conveniently align with a simple straight cut. This is where the beauty of aligned section views shines.

Aligned section views automatically adjust the cutting plane to follow the geometry of your chosen feature. This results in a section view that neatly cuts through specific components or features, regardless of their orientation within the assembly. The cutting plane dynamically adapts, resulting in a cleaner, more understandable representation, even with the most convoluted designs.

Real-world example: Imagine designing a complex gearbox. Using a standard section view, you might end up with a confusing mess of intersecting gear teeth and shafts. An aligned section view, however, allows you to cleanly cut through each gear individually, highlighting the tooth profile and internal geometry without the clutter of other components.

Creating Aligned Section Views: A Step-by-Step Guide



Creating an aligned section view in SolidWorks is relatively straightforward:

1. Select the desired view: Start with a standard view of your assembly.
2. Insert a section view: Navigate to "Insert" -> "Section Views" -> "Aligned Section View."
3. Define the cutting plane: Instead of drawing a straight line, you'll now select the specific features you want the cutting plane to follow. SolidWorks intelligently adjusts the plane's path.
4. Adjust view settings: Fine-tune the appearance of your section view, including line styles, hatching, and visibility of individual components.


Advanced Techniques and Considerations



While the basic process is simple, mastering aligned section views involves understanding a few advanced techniques:

Multiple Features: You can select multiple features for the aligned section view to follow, creating complex but precise cuts.
Combining with other views: Combine aligned section views with detailed views or exploded views to create a comprehensive and easy-to-understand presentation of your design.
Managing hidden lines: Carefully control hidden lines to ensure the section view remains clean and readable. SolidWorks provides tools to manage this effectively.

Conclusion: Elevating Your SolidWorks Drawings



Aligned section views are a powerful tool in any SolidWorks user's arsenal. They transform complex assemblies into easily understandable drawings, facilitating smoother communication with colleagues, clients, and manufacturers. By mastering these techniques, you’ll not only improve the clarity of your drawings but also enhance your overall design process. Remember that practice makes perfect; experiment with different settings and approaches to discover the optimal workflow for your specific designs.


Expert-Level FAQs:



1. Can I create an aligned section view of a single component within a complex assembly? Yes, by selecting only the desired component during the selection process for the cutting plane, you can isolate it for a clear section view.

2. How do I handle situations where the aligned section view intersects with other parts unintentionally? Use the "Hidden Lines" options in the section view properties to selectively remove unwanted lines from the view.

3. Can I use curved surfaces as the basis for an aligned section view? Yes, SolidWorks is capable of following curved geometries, making this an extremely versatile tool.

4. How do I maintain consistency in hatching and line styles across multiple aligned section views in a large assembly? Utilize SolidWorks's templates and drawing standards to ensure consistency in your drawings.

5. What are the limitations of aligned section views? While powerful, aligned section views might struggle with extremely complex geometries or situations with highly intricate intersections. In such cases, consider breaking down the assembly into smaller, more manageable parts before creating section views.
