Aliasing in MATLAB: Understanding and Mitigating the Sampling Pitfall

Digital signal processing (DSP) relies heavily on the ability to accurately represent continuous-time signals in a discrete form. However, this transformation isn't without its pitfalls. One of the most significant challenges is aliasing, a phenomenon where high-frequency components of a signal masquerade as lower-frequency components after sampling. This can lead to inaccurate analysis, distorted reconstructions, and ultimately, flawed conclusions. This article delves into the intricacies of aliasing in MATLAB, providing practical guidance on understanding, identifying, and mitigating its effects.

1. The Nyquist-Shannon Sampling Theorem: The Foundation of Aliasing

The Nyquist-Shannon sampling theorem dictates that to accurately reconstruct a continuous-time signal from its discrete samples, the sampling frequency (fs) must be at least twice the highest frequency component (fmax) present in the signal. Mathematically, this is expressed as: `fs ≥ 2fmax`. This minimum sampling frequency, `2fmax`, is known as the Nyquist rate.

If the sampling frequency falls below the Nyquist rate, aliasing occurs. High-frequency components "fold" back into the lower frequency range, creating spurious signals that weren't originally present in the continuous-time signal. Imagine a spinning wheel with spokes: if you take pictures of it at a slow shutter speed, you might capture blurred or seemingly backward movement of the spokes, distorting the true motion. This is analogous to aliasing – the true high-frequency signal is misinterpreted as a lower frequency signal.

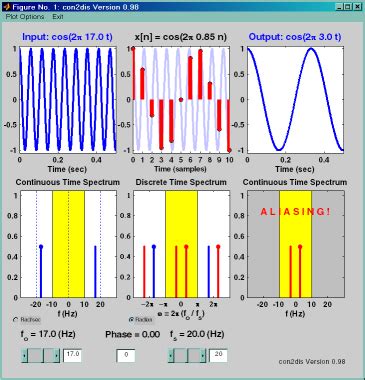

2. Visualizing Aliasing in MATLAB

Let's illustrate aliasing with a simple MATLAB example. We'll generate a sinusoidal signal with two frequencies:

```matlab
t = 0:0.001:1; % Time vector
f1 = 10; % Frequency 1
f2 = 50; % Frequency 2
x = sin(2pif1t) + sin(2pif2t); % Original signal
plot(t,x); title('Original Signal');
```

Now, let's sample this signal at different frequencies:

```matlab
fs1 = 100; % Sampling frequency 1 (above Nyquist)
fs2 = 40; % Sampling frequency 2 (below Nyquist)

t_sampled1 = 0:1/fs1:1;
x_sampled1 = sin(2pif1t_sampled1) + sin(2pif2t_sampled1);

t_sampled2 = 0:1/fs2:1;
x_sampled2 = sin(2pif1t_sampled2) + sin(2pif2t_sampled2);

figure;
subplot(2,1,1); plot(t_sampled1, x_sampled1); title('Sampled at 100 Hz');
subplot(2,1,2); plot(t_sampled2, x_sampled2); title('Sampled at 40 Hz');
```

The first subplot will show a fairly accurate representation of the original signal. The second, however, will exhibit aliasing. The 50 Hz component will appear as a lower frequency component due to undersampling.

3. Anti-Aliasing Techniques: Preventing the Problem

The best way to deal with aliasing is to prevent it in the first place. This primarily involves:

Pre-filtering: Applying a low-pass anti-aliasing filter before sampling is crucial. This filter attenuates high-frequency components above half the sampling frequency, ensuring that only the frequencies within the Nyquist limit are sampled. In MATLAB, this can be accomplished using functions like `fir1` or `butter` to design a suitable filter and then applying it using `filter`.

Increasing Sampling Rate: If feasible, increasing the sampling frequency to significantly exceed the Nyquist rate provides a safety margin, reducing the impact of potential high-frequency noise and improving the accuracy of the reconstruction.

Careful Signal Analysis: Thoroughly understanding the characteristics of the signal, particularly its frequency content, is essential. This can be done using techniques like the Fast Fourier Transform (FFT) in MATLAB (`fft`). This allows for informed decision-making regarding the appropriate sampling frequency and filter design.

4. Real-World Examples and Implications

Aliasing has significant consequences in various applications. In audio processing, it can manifest as unwanted sounds or distortion. In image processing, it can lead to moiré patterns, the visually distracting interference patterns that appear when sampling a fine-textured image at too low a resolution. In medical imaging, aliasing can distort crucial diagnostic information.

5. Detecting and Correcting Aliasing

While prevention is ideal, sometimes aliasing is unavoidable or undetected. Detecting aliasing usually involves analyzing the frequency spectrum of the sampled signal using the FFT. The presence of unexpected high-frequency components in the spectrum after sampling, exceeding the Nyquist frequency, indicates aliasing. Correcting aliasing, however, is challenging and often involves sophisticated signal processing techniques that attempt to estimate and remove the aliased components; this is often an imperfect solution.

Conclusion

Aliasing is a fundamental limitation in digital signal processing. Understanding its causes and implementing effective anti-aliasing strategies, primarily through appropriate pre-filtering and sufficient sampling rates, is paramount for accurate signal acquisition and processing. Failing to address aliasing can lead to inaccurate results and erroneous conclusions in various applications.

FAQs:

1. What is the difference between aliasing and folding? Aliasing is the overall phenomenon where high frequencies appear as lower frequencies. Folding is the specific mechanism within aliasing where frequencies above the Nyquist frequency "fold" back into the baseband (0 to fs/2).

2. Can I always prevent aliasing completely? While minimizing aliasing is usually achievable, completely eliminating it is often practically impossible due to limitations in filter design and the presence of unforeseen high-frequency noise.

3. How do I choose the appropriate cutoff frequency for my anti-aliasing filter? The cutoff frequency should be slightly below half the sampling frequency (fs/2). The specific choice depends on the sharpness of the filter's roll-off and the acceptable level of attenuation of frequencies above the cutoff.

4. Why is oversampling beneficial even if the Nyquist rate is met? Oversampling provides a safety margin, reducing the sensitivity to high-frequency noise and allowing for a more gradual filter roll-off, improving the signal's reconstruction quality.

5. What MATLAB functions are most helpful in addressing aliasing? `fft` (for spectral analysis), `fir1` and `butter` (for filter design), and `filter` (for applying filters) are key MATLAB functions in dealing with aliasing.
