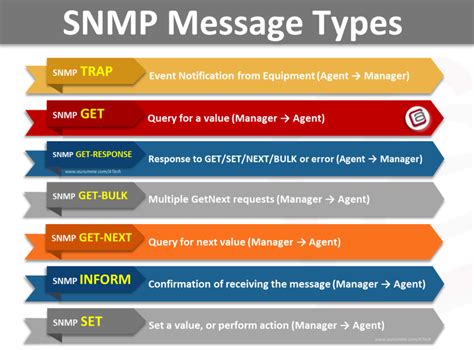

Decoding the Whispers of Your Network: A Deep Dive into SNMP Message Types



Ever wondered how your network monitoring tools magically gather information about your devices? It's not witchcraft, but the elegant choreography of Simple Network Management Protocol (SNMP) messages. Think of your network devices as chatty individuals, constantly broadcasting their status and performance data. SNMP provides the language – a structured set of messages – for them to communicate this vital information. But these messages aren’t all created equal; understanding their different types is crucial for effective network management. So, let's crack open the hood and explore the world of SNMP message types.

1. The Get Request: Asking for Specific Information



The "Get Request" is your basic information-gathering tool. It's like asking a specific question to a network device. You target a particular Managed Object (MO), identified by its Object Identifier (OID), and the device responds with the requested value.

For instance, if you want to know the current CPU utilization of a router, you'd send a Get Request targeting the relevant OID (typically something like `.1.3.6.1.2.1.25.3.3.1.2`). The router, if properly configured, would respond with the percentage value. This is the cornerstone of most SNMP monitoring tasks, allowing for precise data retrieval. Imagine troubleshooting a slow server – a Get Request for memory usage or disk I/O stats can quickly pinpoint the bottleneck.

2. The GetNext Request: Exploring the Unknown



Unlike the targeted Get Request, "GetNext Request" is more explorative. Instead of specifying a particular OID, you provide a starting point. The device then returns the next value in the Management Information Base (MIB) tree, following a sequential path. This is incredibly useful for discovering all the available information about a device without prior knowledge of every single OID. However, it can be less efficient than targeted Get Requests for retrieving specific data, as it may involve traversing unnecessary branches of the MIB.

Think of it as walking down a library aisle instead of going directly to a specific shelf. It might unearth unexpected information, but it’s less precise and potentially time-consuming.

3. The Set Request: Making Changes



The "Set Request" is where things get interesting. This message allows you to modify the configuration of a network device remotely. It's not just about reading data; it's about actively controlling it. Imagine needing to change the IP address of a switch port or enable a specific feature on a firewall – a Set Request is your tool. This capability, however, requires careful consideration and robust security measures, as improper use can lead to significant network disruptions.

For example, setting the `sysLocation` OID allows you to remotely label a device, aiding in inventory management. But altering crucial parameters like routing tables requires utmost caution and deep understanding of the consequences.

4. The GetBulk Request: Efficiency in Bulk



Retrieving large amounts of data using repeated Get Requests can be inefficient. That's where "GetBulk Request" shines. This message allows you to request multiple values in a single request, significantly improving performance. You specify a starting OID and the number of variables to retrieve, and the device responds with a bulk set of data. This is particularly beneficial when monitoring many parameters on a device or multiple devices simultaneously. Think of it as grabbing a whole shopping cart of data instead of picking items one by one.

This is a power tool in network monitoring, allowing for efficient polling of large numbers of network devices for performance and health metrics.

5. The Trap Message: Unsolicited Alerts



Unlike the previous types, "Trap messages" are unsolicited – the device sends them spontaneously to report significant events. These are crucial for proactive network management. Imagine a device experiencing a critical failure, such as running out of disk space or a hardware malfunction. Instead of waiting for a poll, it sends a Trap message to alert the monitoring system immediately. These messages are vital for rapid response to critical issues, preventing potential downtime.

A classic example is a link down event on a router – a Trap message would inform the network management system instantly, enabling quicker troubleshooting and restoration.


Conclusion:

Understanding the different SNMP message types is fundamental to effective network management. Each type serves a specific purpose, from simple information retrieval to proactive alert generation and configuration modification. Mastering this protocol opens the door to sophisticated monitoring and control of your network infrastructure, enabling proactive problem solving and efficient resource management. By leveraging the power of these messages, you can transform reactive network management into a proactive and efficient operation.


Expert-Level FAQs:

1. What are the security implications of using SNMP Set Requests? Improper use of Set Requests can lead to unauthorized configuration changes, creating security vulnerabilities or causing network outages. Strong authentication and authorization mechanisms are crucial.

2. How can I optimize GetBulk requests for performance? Carefully select the non-repetitive OIDs, use appropriate max-repetitions value, and consider the device's processing capabilities to avoid overloading it.

3. How do SNMP Traps differ from SNMP Inform requests? Traps are unsolicited messages, while Informs require an acknowledgment from the receiver. Informs provide more reliable delivery but are less efficient.

4. What are MIBs and how do they relate to SNMP message types? MIBs define the structure and content of managed objects. SNMP message types use OIDs defined within MIBs to identify and access specific data.

5. How does SNMP version affect message types? While the core message types remain consistent, SNMPv3 incorporates enhanced security features that impact authentication and authorization of message exchanges.
