Sn Phase Diagram

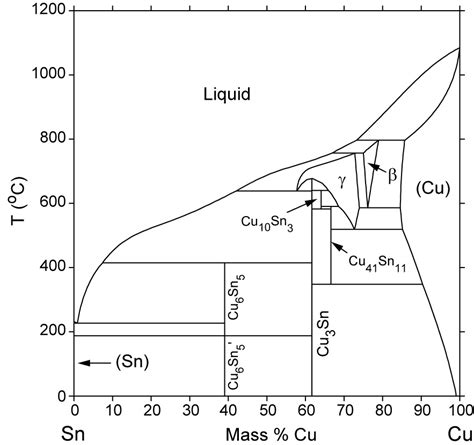

Image related to sn-phase-diagram

Understanding the Sn Phase Diagram: A Simple Guide



Phase diagrams are powerful tools used in materials science and engineering to visualize the relationships between different phases of a material (like solid, liquid, gas) under varying conditions of temperature and pressure. The tin (Sn) phase diagram, while seemingly simple compared to others, offers a fantastic introduction to the fundamental concepts governing phase transitions. This article will demystify the Sn phase diagram, breaking down its complexities into easily digestible sections.

1. What is a Phase?



Before diving into the Sn phase diagram, let's clarify the meaning of "phase." A phase refers to a physically distinct and homogenous region of a material. For example, ice, liquid water, and water vapor are all different phases of H₂O. Each phase possesses unique physical properties like density, structure, and energy. The Sn phase diagram shows us which phase (or phases) of tin will be stable at different temperatures and pressures.

2. Deciphering the Sn Phase Diagram



The Sn phase diagram is relatively straightforward. It primarily depicts the relationship between temperature and the phases of tin: α-tin (grey tin), β-tin (white tin), and liquid tin. Note that the pressure axis is often omitted in simplified diagrams because the pressure range affecting tin's phase transitions is relatively small at normal pressures.

α-tin (grey tin): This is the stable phase below 13.2 °C. It has a diamond cubic crystal structure, making it brittle and powdery.
β-tin (white tin): This is the familiar form of tin, stable above 13.2 °C. It has a tetragonal crystal structure, possessing metallic properties – ductile and malleable.
Liquid tin: At temperatures above the melting point (231.9 °C), tin becomes a liquid.

The diagram shows the transition points: 13.2 °C, the α-tin to β-tin transition, and 231.9 °C, the melting point of β-tin. These are crucial temperatures indicating phase changes.

3. Understanding Phase Transitions



The phase diagram illustrates the transitions between these phases. For example, if you cool β-tin below 13.2 °C, it will transform into α-tin. This transition, known as the "tin pest," is a solid-solid phase transition and can cause significant volume changes, potentially damaging the material. Conversely, heating α-tin above 13.2 °C will cause it to transform back into β-tin.

The melting point represents the transition from solid (β-tin) to liquid tin. Heating β-tin above 231.9 °C results in melting, and cooling liquid tin below this temperature causes solidification.

4. Practical Examples and Applications



Understanding the Sn phase diagram is crucial in various applications:

Solder: Tin is a key component in solder, used for joining metals. The melting point of tin is vital in determining the appropriate soldering temperature.
Coatings: Tin coatings protect metals from corrosion. Understanding the phase transitions ensures the coating remains stable under various environmental conditions.
Bronze: Tin is an alloying element in bronze. The phase diagram helps in understanding the microstructure and properties of bronze.
Avoiding the "Tin Pest": Knowing the α-β transition temperature helps avoid the "tin pest" in cold climates by ensuring tin is kept above 13.2 °C. This is especially important for tin-based organ pipes or historical artifacts.


5. Key Takeaways



The Sn phase diagram provides a concise visual representation of the relationships between temperature and the phases of tin. Understanding these relationships is crucial for selecting and using tin in various applications. The transition between α-tin and β-tin is a critical phenomenon to avoid for structural integrity, highlighting the importance of understanding phase stability in material science.


FAQs



1. Why is the "tin pest" a problem? The α-tin to β-tin transition involves a significant volume increase, causing stress and potential cracking or disintegration of the material.

2. Can pressure affect the Sn phase diagram significantly? At normal pressures, the effect is minimal; however, at extremely high pressures, the phase boundaries might shift slightly.

3. What other factors besides temperature and pressure can affect the phase of tin? The presence of impurities can affect the phase transition temperatures.

4. How is the Sn phase diagram determined experimentally? It's determined using techniques like differential scanning calorimetry (DSC) and X-ray diffraction (XRD) to observe phase changes and identify the corresponding structures.

5. Are there other elements with phase diagrams similar to tin's? Many elements exhibit similar solid-solid transitions, though the temperatures and crystal structures vary. The fundamental concepts of phase diagrams apply across materials.
