Diving Deep into SJF: A C Programming Journey

Imagine a bustling operating system, juggling multiple tasks simultaneously – printing documents, downloading files, running games. How does it decide which task gets attention first? One effective strategy is the Shortest Job First (SJF) scheduling algorithm. This article delves into the fascinating world of SJF, exploring its implementation in C, its strengths and weaknesses, and its real-world applications. We'll build a program together, step by step, to understand this fundamental concept in operating systems and process management.

Understanding the Shortest Job First (SJF) Algorithm

The Shortest Job First (SJF) algorithm, also known as the Shortest Process Next (SPN) algorithm, is a scheduling algorithm that prioritizes tasks with the shortest estimated burst time (the time required to complete the task). This approach minimizes the average waiting time for all processes. It aims to complete the quickest jobs first, leading to better overall system responsiveness.

There are two main variations of SJF:

Preemptive SJF: This version allows a shorter job to interrupt a currently running longer job. If a shorter job arrives while a longer job is running, the operating system preempts (interrupts) the longer job and starts the shorter one.
Non-preemptive SJF: This version does not interrupt running processes. A job only begins execution when the currently running job completes. Once a process begins, it runs to completion without interruption.

While preemptive SJF generally yields better results in terms of average waiting time, it involves more overhead due to context switching (saving and restoring the state of a process).

Implementing SJF in C: A Step-by-Step Guide

Let's build a non-preemptive SJF scheduler in C. This simplified version will illustrate the core concepts:

```c

include <stdio.h>

include <stdlib.h>

// Structure to represent a process
typedef struct {
int pid; // Process ID
int burst_time; // Burst time (execution time)
int waiting_time; // Waiting time
int turnaround_time; // Turnaround time (completion time)
} Process;

// Function to compare processes based on burst time
int compare(const void a, const void b) {
return ((Process )a)->burst_time - ((Process )b)->burst_time;
}

int main() {
int n;
printf("Enter the number of processes: ");
scanf("%d", &n);

Process processes[n];
for (int i = 0; i < n; i++) {
processes[i].pid = i + 1;
printf("Enter burst time for process %d: ", i + 1);
scanf("%d", &processes[i].burst_time);
processes[i].waiting_time = 0;
processes[i].turnaround_time = 0;
}

// Sort processes by burst time
qsort(processes, n, sizeof(Process), compare);

int waiting_time = 0;
int turnaround_time = 0;

// Calculate waiting and turnaround times
for (int i = 0; i < n; i++) {
processes[i].waiting_time = waiting_time;
processes[i].turnaround_time = waiting_time + processes[i].burst_time;
waiting_time += processes[i].burst_time;
turnaround_time += processes[i].turnaround_time;
}

// Print the results
printf("\nProcess\tBurst Time\tWaiting Time\tTurnaround Time\n");
for (int i = 0; i < n; i++) {
printf("%d\t\t%d\t\t%d\t\t%d\n", processes[i].pid, processes[i].burst_time, processes[i].waiting_time, processes[i].turnaround_time);
}

printf("\nAverage Waiting Time: %.2f\n", (float)waiting_time / n);
printf("Average Turnaround Time: %.2f\n", (float)turnaround_time / n);

return 0;
}
```

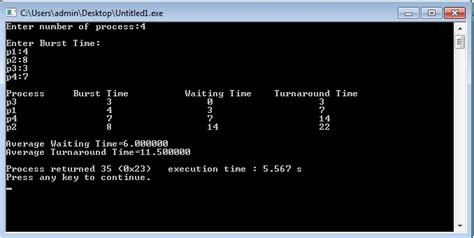

This code takes process burst times as input, sorts them using `qsort`, and then calculates and displays waiting and turnaround times for each process.

Real-World Applications of SJF

SJF finds practical applications in various scenarios:

Operating System Scheduling: Many operating systems use variations of SJF for task scheduling, especially in real-time systems where response time is critical (e.g., controlling robotic arms, managing industrial processes).
Job Scheduling in Servers: In server environments, SJF can optimize the execution of short jobs, improving overall server responsiveness.
Disk Scheduling: SJF principles can be applied to disk scheduling algorithms, prioritizing requests to nearby tracks to minimize seek time.
Resource Management: In resource-constrained systems, SJF can effectively manage resource allocation by prioritizing shorter tasks that require fewer resources.

Strengths and Weaknesses of SJF

Strengths:

Minimizes average waiting time: This is the primary advantage of SJF.
Improved system responsiveness: By completing short jobs quickly, the system responds faster to user requests.

Weaknesses:

Difficult to predict burst times accurately: In practice, accurately estimating burst times beforehand can be challenging. Inaccurate estimations can lead to poor performance.
Starvation of long processes: Long processes might experience significant delays if many short processes arrive continuously.
Implementation complexity (preemptive SJF): Preemptive SJF requires more complex implementation and adds context switching overhead.

Summary

This article explored the Shortest Job First scheduling algorithm, a vital concept in operating systems and process management. We detailed both preemptive and non-preemptive versions, highlighting their differences and practical applications. We also implemented a simplified non-preemptive SJF scheduler in C, demonstrating the algorithm's core logic. Understanding SJF is crucial for anyone interested in operating systems, systems programming, or performance optimization. While it possesses limitations, particularly concerning burst time prediction, its ability to minimize average waiting time makes it a valuable algorithm in various real-world scenarios.

FAQs

1. What is the difference between preemptive and non-preemptive SJF? Preemptive SJF allows a shorter job to interrupt a running longer job, while non-preemptive SJF does not interrupt running processes.

2. How can I improve the accuracy of burst time estimation in SJF? Techniques like historical data analysis and machine learning can help predict burst times more accurately.

3. What are some alternative scheduling algorithms? Other algorithms include First-Come, First-Served (FCFS), Round Robin, Priority Scheduling, and Multilevel Queue Scheduling.

4. Can SJF be used for real-time systems? Yes, particularly preemptive SJF is well-suited for real-time systems that require fast response times.

5. Is the C code provided a complete and robust implementation of SJF? No, it's a simplified example for educational purposes. A robust implementation would handle various edge cases and potentially use more sophisticated data structures.
