Second Class Lever Formula

Image related to second-class-lever-formula

Decoding the Second-Class Lever: A Deep Dive into Mechanics and Application



Have you ever used a wheelbarrow, cracked open a nut with a nutcracker, or effortlessly lifted a heavy object with a crowbar? If so, you've experienced firsthand the power of a second-class lever – a simple machine that amplifies force and makes seemingly impossible tasks achievable. Understanding the mechanics behind this lever type, and its governing formula, unlocks a deeper appreciation for basic physics and its widespread applications in our daily lives. This article provides a comprehensive guide to the second-class lever, explaining its formula, applications, and nuances.

Understanding the Anatomy of a Second-Class Lever



A lever, at its core, is a rigid bar that pivots around a fixed point called the fulcrum. What distinguishes different lever classes is the relative positions of the fulcrum, the effort (the force applied), and the load (the resistance being overcome). In a second-class lever, the fulcrum is located at one end of the bar, the load is in between the fulcrum and the effort, and the effort is applied at the opposite end.

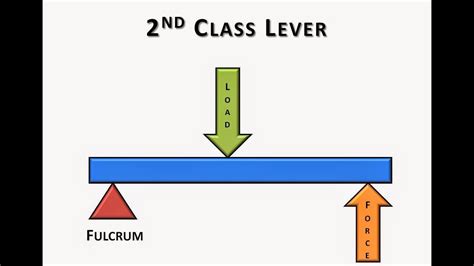

Imagine a wheelbarrow. The wheel acts as the fulcrum, the load (e.g., bricks, soil) rests between the wheel and the handles, and the effort is applied to the handles to lift the load. This arrangement is the defining characteristic of a second-class lever. This specific arrangement creates a mechanical advantage, allowing you to lift much heavier loads than you could lift alone.


The Second-Class Lever Formula: Effort x Effort Arm = Load x Load Arm



The fundamental principle governing second-class levers is expressed through a simple yet powerful formula:

Effort (E) x Effort Arm (EA) = Load (L) x Load Arm (LA)

Where:

Effort (E): The force applied to the lever to lift the load. This is typically measured in Newtons (N).
Effort Arm (EA): The perpendicular distance between the fulcrum and the point where the effort is applied. This is measured in meters (m).
Load (L): The weight or force being lifted or overcome. Also measured in Newtons (N).
Load Arm (LA): The perpendicular distance between the fulcrum and the point where the load is applied. Measured in meters (m).


This formula highlights the crucial relationship between the effort, load, and their respective arm lengths. The mechanical advantage (MA) of the lever is directly related to the ratio of the effort arm to the load arm:

Mechanical Advantage (MA) = EA / LA

A mechanical advantage greater than 1 indicates that the lever amplifies the effort, making it easier to lift the load. The larger the effort arm relative to the load arm, the greater the mechanical advantage.


Real-World Applications of Second-Class Levers



The principles of second-class levers are employed in numerous everyday objects and tools:

Wheelbarrows: As discussed earlier, the wheel acts as the fulcrum, allowing a relatively small effort to move a significant load.
Nutcrackers: The hinge acts as the fulcrum, the nut is the load, and the effort is applied to the handles.
Bottle Openers: Similar to nutcrackers, the pivot point acts as the fulcrum, allowing a small force to overcome the resistance of the bottle cap.
Oars in a Boat: The oar's contact with the water acts as the fulcrum, the resistance of the water is the load, and the rower applies the effort.
Human Body: Standing on your toes is a classic example. The ball of your foot is the fulcrum, your body weight is the load, and your calf muscles provide the effort.


Practical Insights and Considerations



While the formula provides a theoretical framework, real-world applications often involve factors that complicate precise calculations:

Friction: Friction at the fulcrum and between moving parts reduces the efficiency of the lever, requiring more effort than the formula suggests.
Weight of the Lever: The weight of the lever itself contributes to the load, slightly altering the required effort.
Angle of Application: The effort should ideally be applied perpendicular to the lever arm for maximum efficiency. An angle less than 90 degrees reduces the effective effort.


Conclusion



The second-class lever is a fundamental simple machine with broad applications across various domains. Understanding its formula and the relationship between effort, load, and arm lengths empowers individuals to analyze and optimize the use of levers in different contexts. While friction and other factors affect real-world efficiency, the fundamental principles remain consistent and crucial for comprehending mechanical advantage and simplifying tasks.


Frequently Asked Questions (FAQs)



1. Can a second-class lever have a mechanical advantage less than 1? No. The very nature of a second-class lever, with the load between the fulcrum and effort, inherently provides a mechanical advantage greater than 1.

2. What is the difference between a second-class and a third-class lever? In a third-class lever, the effort is placed between the fulcrum and the load, resulting in a mechanical advantage less than 1 (increased speed and range of motion instead of force amplification).

3. How does the material of the lever affect its performance? A stronger, lighter material will improve the lever's efficiency by reducing the load from the lever's own weight and minimizing bending under stress.

4. Can the formula be used for levers that aren't perfectly straight? The formula applies most accurately to straight levers. For bent levers, the perpendicular distances to the fulcrum need to be carefully measured.

5. Are there limitations to the mechanical advantage achievable with a second-class lever? Yes, the length of the lever arm is physically limited. Also, excessively long levers can become unwieldy and prone to bending or breaking.
