Root Mean Square Matlab

Decoding the Mystery of Root Mean Square in MATLAB: From Theory to Application

Have you ever wondered how engineers precisely quantify the effectiveness of alternating current (AC) electricity, or how audio engineers measure the loudness of a sound wave, despite their fluctuating nature? The answer lies in a powerful mathematical tool: the root mean square (RMS). This seemingly complex concept is elegantly handled in MATLAB, a powerful programming environment widely used in engineering and science. This article will demystify the RMS calculation, explore its MATLAB implementation, and unveil its diverse real-world applications.

Understanding the Concept of Root Mean Square (RMS)

The RMS value isn't simply an average; it's a special type of average that accounts for the variations in a signal over time. Think of it as a way to represent the "effective" value of a fluctuating quantity. Unlike the simple average (mean), which can be misleading for fluctuating signals, the RMS value provides a more meaningful representation of the overall magnitude.

The calculation involves three steps:

1. Squaring: Each data point in the signal is squared. Squaring ensures that both positive and negative values contribute positively to the final result, preventing cancellation.

2. Averaging (Mean): The squared values are averaged. This yields the mean of the squared values.

3. Root (Square Root): The square root of the mean of the squared values is taken. This gives the final RMS value.

Mathematically, the RMS value (RMS) of a data set {x₁, x₂, ..., xₙ} is calculated as:

RMS = √[(x₁² + x₂² + ... + xₙ²) / n]

where 'n' is the number of data points. This formula gives us the effective value, which is particularly useful when dealing with periodic signals like sine waves. For example, the RMS value of a sinusoidal signal is equal to its amplitude divided by the square root of 2. This is crucial in electrical engineering where AC power is characterized using its RMS value.

Calculating RMS in MATLAB: A Practical Guide

MATLAB provides efficient functions to compute the RMS value. The simplest method utilizes the built-in `rms()` function. Let's illustrate with an example:

```matlab
% Generate a sample signal (a sine wave)
t = 0:0.01:1; % Time vector
signal = sin(2pi5t); % 5 Hz sine wave

% Calculate the RMS value using the rms() function
rms_value = rms(signal);

% Display the result
disp(['The RMS value of the signal is: ', num2str(rms_value)]);
```

This code snippet generates a sine wave, and then uses the `rms()` function to directly calculate its RMS value. The output will be approximately 0.707, which is 1/√2, as expected for a sine wave with amplitude 1.

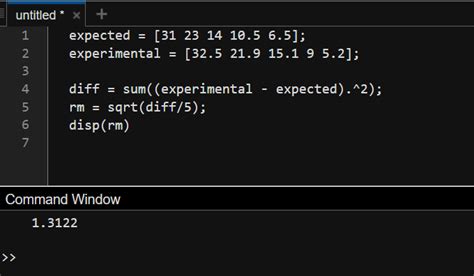

For more complex scenarios, where you might need to perform additional calculations before computing the RMS, you can implement the formula directly using MATLAB's array operations:

```matlab
% Calculate RMS manually
squared_signal = signal.^2; % Element-wise squaring
mean_squared = mean(squared_signal); % Calculating the mean of squared values
rms_value_manual = sqrt(mean_squared); % Taking the square root

% Display the result
disp(['The manually calculated RMS value is: ', num2str(rms_value_manual)]);
```

This second method offers greater control and understanding of the underlying calculation.

Real-World Applications of RMS

The applications of RMS extend far beyond theoretical calculations:

Electrical Engineering: RMS is crucial for characterizing AC power, calculating effective voltage and current in circuits, and designing power systems. The electricity supplied to our homes is specified in RMS values (e.g., 120V RMS in North America).

Audio Engineering: RMS is used to measure the loudness of audio signals. This is particularly important for setting appropriate levels to prevent distortion and to optimize audio playback.

Signal Processing: RMS is a common metric for quantifying the strength of signals in various applications, from telecommunications to biomedical engineering.

Mechanical Engineering: RMS is used to analyze vibrations in structures and machinery, helping engineers to design more robust and reliable systems.

Data Analysis: In general data analysis, the RMS value can provide a measure of the variability or dispersion of data, offering insights into the distribution of the data.

Reflective Summary

The root mean square calculation provides a powerful way to represent the effective magnitude of fluctuating signals. MATLAB simplifies the calculation process through its built-in `rms()` function, while also allowing for manual computation for a deeper understanding. RMS has significant applications across numerous fields, impacting our daily lives from the electricity in our homes to the music we listen to. Understanding RMS is key to comprehending many aspects of modern engineering and data analysis.

FAQs

1. Q: Can I use the RMS function on non-periodic signals? A: Yes, the `rms()` function works on any type of signal, whether periodic or aperiodic.

2. Q: What happens if my signal contains missing data? A: The `rms()` function will automatically handle NaN (Not a Number) values in your data, excluding them from the calculation.

3. Q: Is there a difference between RMS and average power? A: For resistive loads, the average power is proportional to the square of the RMS voltage or current. RMS is a measure of amplitude, while average power considers both amplitude and resistance.

4. Q: Can I use the RMS calculation on complex numbers? A: Yes, MATLAB's `rms()` function handles complex numbers; it calculates the RMS of the magnitudes of the complex numbers.

5. Q: What are the limitations of using RMS? A: RMS provides a single value summarizing the signal, potentially losing information about the signal's shape and frequency content. For a complete analysis, other signal processing techniques might be needed in addition to RMS.
