Relative Coordinates Autocad

Mastering Relative Coordinates in AutoCAD: Precision and Efficiency in Design

AutoCAD's power lies in its ability to facilitate precise and efficient drafting. A crucial element contributing to this efficiency is the use of relative coordinates. Unlike absolute coordinates, which specify a point's location relative to the drawing's origin (0,0), relative coordinates define a point's position relative to the last point entered. This article will delve into the intricacies of relative coordinates in AutoCAD, explaining their functionality, advantages, and practical applications, thereby empowering you to elevate your drafting skills.

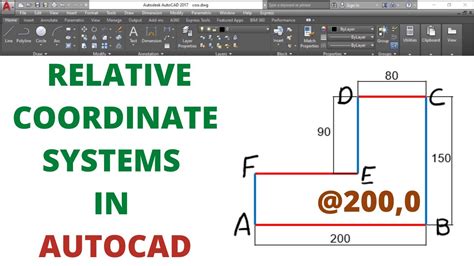

Understanding the Concept of Relative Coordinates

Relative coordinates, denoted by the `@` symbol followed by the X and Y offsets, represent the distance and direction from the previous point. For instance, `@2,3` means "move 2 units in the X direction and 3 units in the Y direction" from the last point entered. This "last point" could be the endpoint of a line, the insertion point of a block, or even the cursor's current location if you've just started a new command. Negative values indicate movement in the opposite direction (left or down).

Different Ways to Input Relative Coordinates

AutoCAD provides flexibility in inputting relative coordinates. You can use several methods:

Direct Input: This is the most common method. Simply type `@x,y` (replacing `x` and `y` with the desired offsets) after initiating a command requiring coordinate input (e.g., LINE, CIRCLE). For example, to draw a line from point (1,1) to (3,4) using relative coordinates, first specify the absolute coordinates (1,1) for the first point. Then, type `@2,3` for the second point. AutoCAD automatically calculates the second point's absolute coordinates (3,4) based on the relative offset.

Polar Coordinates: Relative coordinates can also be specified using polar coordinates, which denote distance and angle. The format is `@distance<angle`. For example, `@5<45` would move 5 units at a 45-degree angle from the last point. Angles are measured counter-clockwise from the positive X-axis.

Combining Absolute and Relative Coordinates: You can mix absolute and relative coordinate inputs within a single command. For instance, if you need to draw a rectangle using a mix of absolute and relative coordinates, you can specify the first corner using absolute coordinates and then use relative coordinates for the subsequent corners. This allows for a mix of precise placement and relative positioning within the same geometry.

Practical Examples of Relative Coordinate Usage

Let's consider a practical scenario. Suppose you're designing a simple house plan. You've already drawn the foundation's bottom-left corner at (0,0). Using relative coordinates makes drawing the remaining corners extremely efficient:

1. Bottom-right corner: `@10,0` (moves 10 units right)
2. Top-right corner: `@0,8` (moves 8 units up)
3. Top-left corner: `@-10,0` (moves 10 units left)

This significantly reduces the need for manual calculations of absolute coordinates, leading to faster and less error-prone drafting.

Advantages of Using Relative Coordinates

Relative coordinates offer several key advantages:

Increased Speed and Efficiency: By referencing the previous point, you eliminate repetitive calculations, speeding up the drawing process.

Reduced Errors: Manual calculations of absolute coordinates can be prone to errors. Relative coordinates minimize this risk.

Intuitive Design Workflow: Relative coordinates often align more naturally with how designers think about spatial relationships within a drawing.

Simplified Complex Drawings: In intricate designs involving many interconnected elements, relative coordinates can streamline the process of creating precise relationships between objects.

Conclusion

Mastering relative coordinates is essential for any AutoCAD user seeking to enhance their drawing efficiency and precision. This method not only accelerates the design process but also minimizes errors and promotes a more intuitive workflow. By understanding the various input methods and integrating them into your design process, you can unlock a significant boost in your productivity and the overall quality of your AutoCAD drawings.

FAQs

1. Can I use relative coordinates with all AutoCAD commands? Not all commands accept coordinate inputs, but most drawing commands (LINE, CIRCLE, ARC, etc.) do.

2. What happens if I make a mistake while entering relative coordinates? You can usually use the Undo command (Ctrl+Z) to correct any errors.

3. Can I use negative values in relative coordinates? Yes, negative values indicate movement in the opposite direction (left or down).

4. Are polar relative coordinates more efficient than Cartesian relative coordinates? The efficiency depends on the specific task. Polar coordinates are ideal for situations where you know the distance and angle, while Cartesian coordinates are suitable for defining offsets along the X and Y axes.

5. How do I switch between absolute and relative coordinate input? There's no explicit switch; the `@` symbol determines whether the input is relative. Without the `@`, the input is considered absolute.
