Rc Discharge Time Constant Calculator

Understanding and Using an RC Discharge Time Constant Calculator

Capacitors, fundamental components in electronics, store electrical energy. Resistors, on the other hand, control the flow of that energy. When a charged capacitor is connected to a resistor, the capacitor discharges, releasing its stored energy. Understanding the rate of this discharge is crucial for designing and troubleshooting various electronic circuits. This article explores the concept of the RC time constant and how a simple calculator can help you determine the discharge time.

What is an RC Time Constant?

The RC time constant, denoted by τ (tau), represents the time it takes for a capacitor to discharge to approximately 36.8% of its initial voltage. It's a crucial parameter that dictates the speed of the discharge process. The time constant is simply the product of the resistance (R) in ohms and the capacitance (C) in farads:

τ = R × C

For example, if you have a 10kΩ resistor and a 10µF capacitor, the time constant is:

τ = 10,000 Ω × 10 × 10⁻⁶ F = 0.1 seconds

This means it takes 0.1 seconds for the capacitor voltage to drop to approximately 36.8% of its initial value.

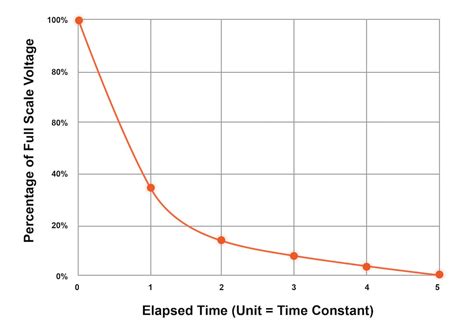

The Discharge Curve: An Exponential Decay

The capacitor's voltage doesn't drop linearly. Instead, it follows an exponential decay curve. This means the voltage drops rapidly initially and then slows down as it approaches zero. The formula describing this decay is:

V(t) = V₀ × e^(-t/τ)

Where:

V(t) is the voltage at time t
V₀ is the initial voltage
e is the base of the natural logarithm (approximately 2.718)
t is the time elapsed
τ is the RC time constant

This equation shows that the voltage decreases exponentially with time. After one time constant (τ), the voltage is approximately 36.8% of its initial value. After five time constants (5τ), the capacitor is considered fully discharged for most practical purposes (voltage drops to less than 1% of its initial value).

Using an RC Discharge Time Constant Calculator

Numerous online calculators and software tools are available to simplify the calculation of the discharge time. These calculators typically require you to input the resistance (R) and capacitance (C) values. The calculator then computes the time constant (τ) and often provides the voltage at different time points based on the exponential decay formula. This eliminates the need for manual calculations, especially helpful when dealing with multiple components or complex circuits.

Practical Applications

Understanding the RC time constant is essential in various applications:

Timing circuits: RC circuits are used to create precise time delays in circuits controlling actions like flashing lights or triggering events.
Filtering: RC circuits act as filters, allowing certain frequencies to pass while attenuating others. The time constant determines the cutoff frequency.
Camera flashes: The charging and discharging of capacitors in camera flashes are governed by RC time constants.
Power supplies: RC circuits are used in power supplies for filtering and smoothing out voltage fluctuations.

Example Scenario: A Simple Flashing LED

Imagine a simple circuit with a 1kΩ resistor and a 100µF capacitor connected to an LED and a power source. When the power is switched on, the capacitor charges through the resistor. When the power is switched off, the capacitor discharges through the resistor and the LED, causing the LED to flash briefly. Using an RC time constant calculator, we can determine how long the LED will remain lit.

τ = 1000 Ω × 100 × 10⁻⁶ F = 0.1 seconds

The LED will be noticeably lit for approximately five time constants, or 0.5 seconds.

Key Takeaways

The RC time constant (τ = R × C) determines the discharge rate of a capacitor.
Capacitor discharge follows an exponential decay curve.
Five time constants (5τ) are generally considered sufficient for complete discharge.
RC time constant calculators significantly simplify the calculation process.
Understanding RC time constants is vital for designing and troubleshooting numerous electronic circuits.

FAQs

1. What if I have multiple resistors or capacitors in the circuit? For more complex circuits, you'll need to calculate the equivalent resistance and capacitance before applying the RC time constant formula.

2. How accurate are RC time constant calculators? The accuracy depends on the calculator's algorithm and the precision of the input values. Most online calculators provide sufficiently accurate results for most practical applications.

3. Can I use an RC time constant calculator for charging time as well? Yes, the same formula and principles apply to the charging process, although the voltage equation will be slightly different (it will approach V₀ asymptotically).

4. What units should I use for R and C? Use ohms (Ω) for resistance and farads (F) for capacitance.

5. What if my calculated discharge time is too long or too short? Adjust either the resistance or the capacitance to achieve the desired discharge time. Increasing the resistance or decreasing the capacitance will increase the discharge time, and vice-versa.
