Understanding PLC Scans: The Heartbeat of Industrial Automation

Programmable Logic Controllers (PLCs) are the brains behind countless automated systems in industries ranging from manufacturing and process control to building automation. At the core of their operation lies the PLC scan cycle, a repetitive process that forms the foundation of their functionality. This article will delve into the intricacies of the PLC scan, explaining its phases, importance, and impact on overall system performance.

1. What is a PLC Scan Cycle?

A PLC scan cycle, also known as a scan, is a sequential process the PLC undergoes repeatedly to monitor inputs, execute its program, and update outputs. Think of it as the PLC's "heartbeat," a continuous loop that ensures the system reacts to changing conditions in real-time. This cyclical process typically takes only a few milliseconds to complete, but the exact duration depends on the PLC's program complexity and hardware capabilities. The faster the scan time, the quicker the PLC responds to events, crucial in time-sensitive applications.

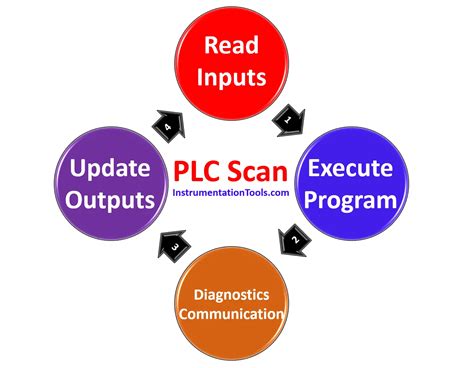

2. Phases of a PLC Scan Cycle: A Step-by-Step Breakdown

The PLC scan cycle is typically composed of several distinct phases, though the exact implementation might vary slightly depending on the PLC manufacturer and model. These phases generally include:

Input Acquisition: In this initial phase, the PLC reads the status of all its input devices. This includes sensors, switches, push buttons, and other devices that provide information about the system's current state. For example, a sensor detecting the presence of a part on a conveyor belt would send a signal during this phase.

Program Execution: After acquiring input data, the PLC executes its program. This involves processing the input information according to the ladder logic or other programming language used. The program logic determines the necessary actions based on the inputs. Using the previous example, the program might initiate a robotic arm to pick up the detected part.

Output Update: Once the program execution is complete, the PLC updates its outputs. This involves sending signals to actuators, motors, lights, and other output devices to carry out the actions determined by the program. In our example, the output update would signal the robotic arm to move and pick up the part.

Communication (Optional): Many modern PLCs incorporate communication capabilities to interact with other devices or systems. This phase might involve exchanging data with Human-Machine Interfaces (HMIs), supervisory control and data acquisition (SCADA) systems, or other PLCs in a network.

Error Detection and Handling: Throughout the scan cycle, the PLC monitors itself for errors. If an error is detected (e.g., a communication failure or faulty input), the PLC may execute predefined error-handling routines or halt operation depending on the severity and configuration.

3. Factors Affecting Scan Time

The duration of a PLC scan cycle, or scan time, is crucial for system performance. A longer scan time can lead to slower response times, potentially causing operational issues, especially in high-speed applications. Several factors influence the scan time:

Program Complexity: More complex programs with extensive logic and many instructions require longer processing times.

Number of I/O points: A higher number of input and output devices increases the time required for input acquisition and output updates.

PLC Hardware: Faster processors and more efficient memory contribute to shorter scan times.

Networking: Communication with other devices via network protocols can add to the overall scan time.

Program Optimization: Well-structured and optimized programs can significantly improve scan time.

4. Implications of Long Scan Times

Extended scan times can significantly impact the performance and reliability of automated systems. Some of the potential consequences include:

Delayed Response: Slow reaction to changes in the system's environment can lead to missed events, production inefficiencies, or even safety hazards.

Inaccurate Control: If the scan time is too long, the system might not accurately reflect the real-time state of the process.

System Instability: Extreme delays can lead to system instability and unexpected behavior.

5. Optimizing PLC Scan Time

Optimizing the PLC scan time is crucial for maintaining efficient and reliable operation. Strategies include:

Program Optimization: Writing efficient and concise programs is paramount. Techniques like using optimized instructions, avoiding unnecessary calculations, and minimizing memory usage can improve performance.

Efficient I/O Handling: Proper organization and efficient use of I/O points can reduce the time spent on input acquisition and output updates.

Hardware Upgrade: If necessary, upgrading to a faster PLC with increased processing power and memory can substantially shorten the scan time.

Summary

The PLC scan cycle is a fundamental process that drives the operation of programmable logic controllers. Understanding the phases involved, the factors affecting scan time, and the implications of long scan times is crucial for designing, implementing, and maintaining reliable automated systems. Optimizing the scan time through program optimization and hardware selection ensures efficient and responsive control.

FAQs:

1. What happens if a PLC scan is interrupted? Most PLCs have mechanisms to handle interruptions gracefully. They may pause the current scan and resume from where they left off, or they may have error-handling routines to address specific issues.

2. How can I monitor the PLC scan time? Most PLC programming software provides tools to monitor the scan time, allowing users to track performance and identify potential bottlenecks.

3. Is a shorter scan time always better? While generally true, an extremely short scan time might not be necessary or beneficial in all applications. The optimal scan time is determined by the specific requirements of the controlled process.

4. How can I reduce the number of I/O points? Efficient I/O strategies, such as using multiplexing or remote I/O modules, can reduce the physical number of I/O points connected directly to the PLC.

5. What programming languages are used in PLCs? Ladder logic is the most common, but other languages like structured text, function block diagram, and instruction list are also employed, depending on the PLC manufacturer and application requirements.
